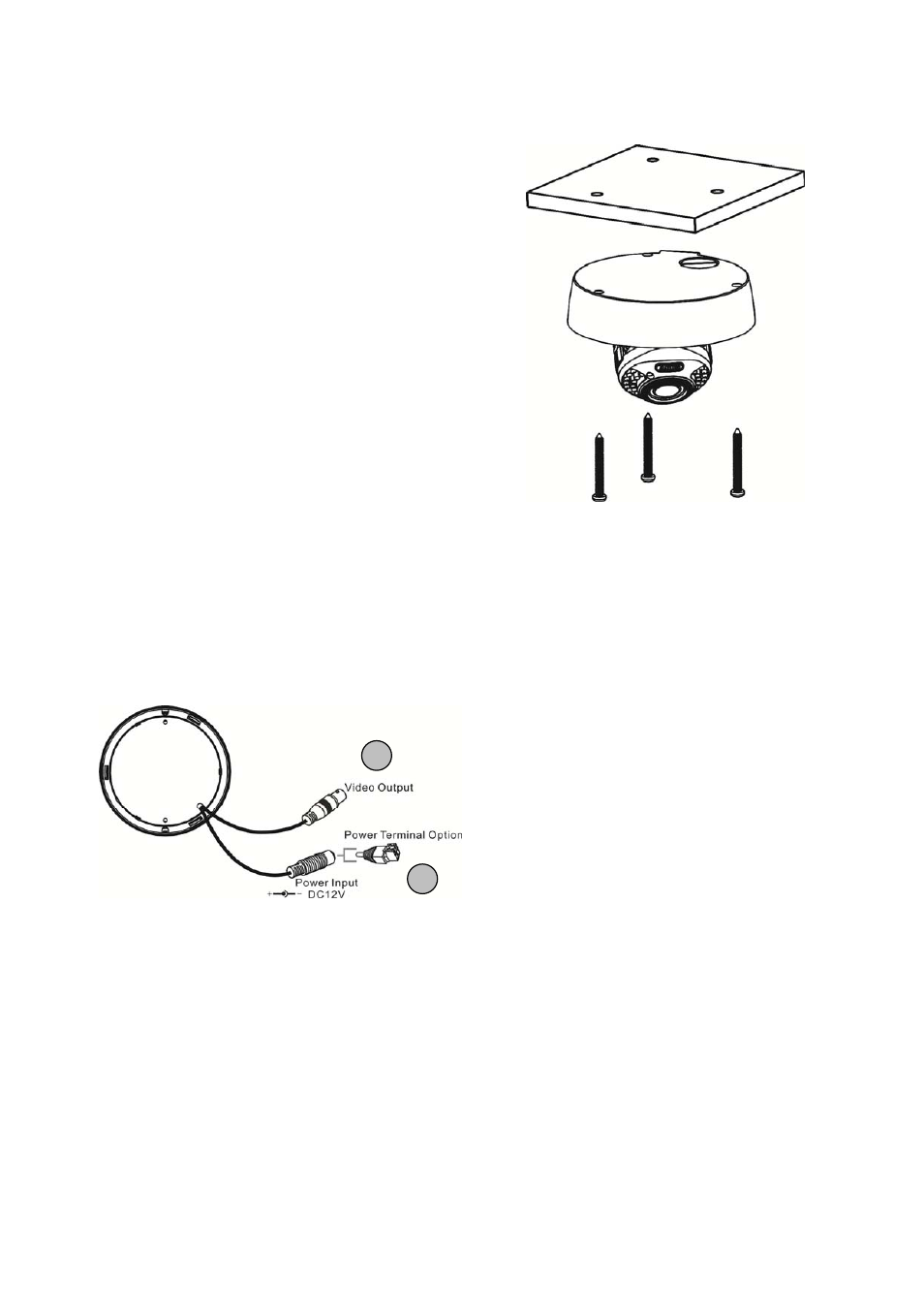

6.3 Installing the camera

Hold the base plate at the intended installation
location, mark the two mounting holes on the
surface, and drill the holes. Use the screws and
wall plugs provided to fasten the base plate in
place. Cables can be laid at the side or hidden
in the ceiling or wall.

6.4 Connections

Before starting installation, ensure that the mains voltage and the rated voltage on the camera are
identical.

Power supply and HD-SDI video signal

1 – HD-SDI video output, BNC (female)
2 – power supply connection (round plug
5.5x2.1mm, 12 VDC) or DC 2-pin adapter
