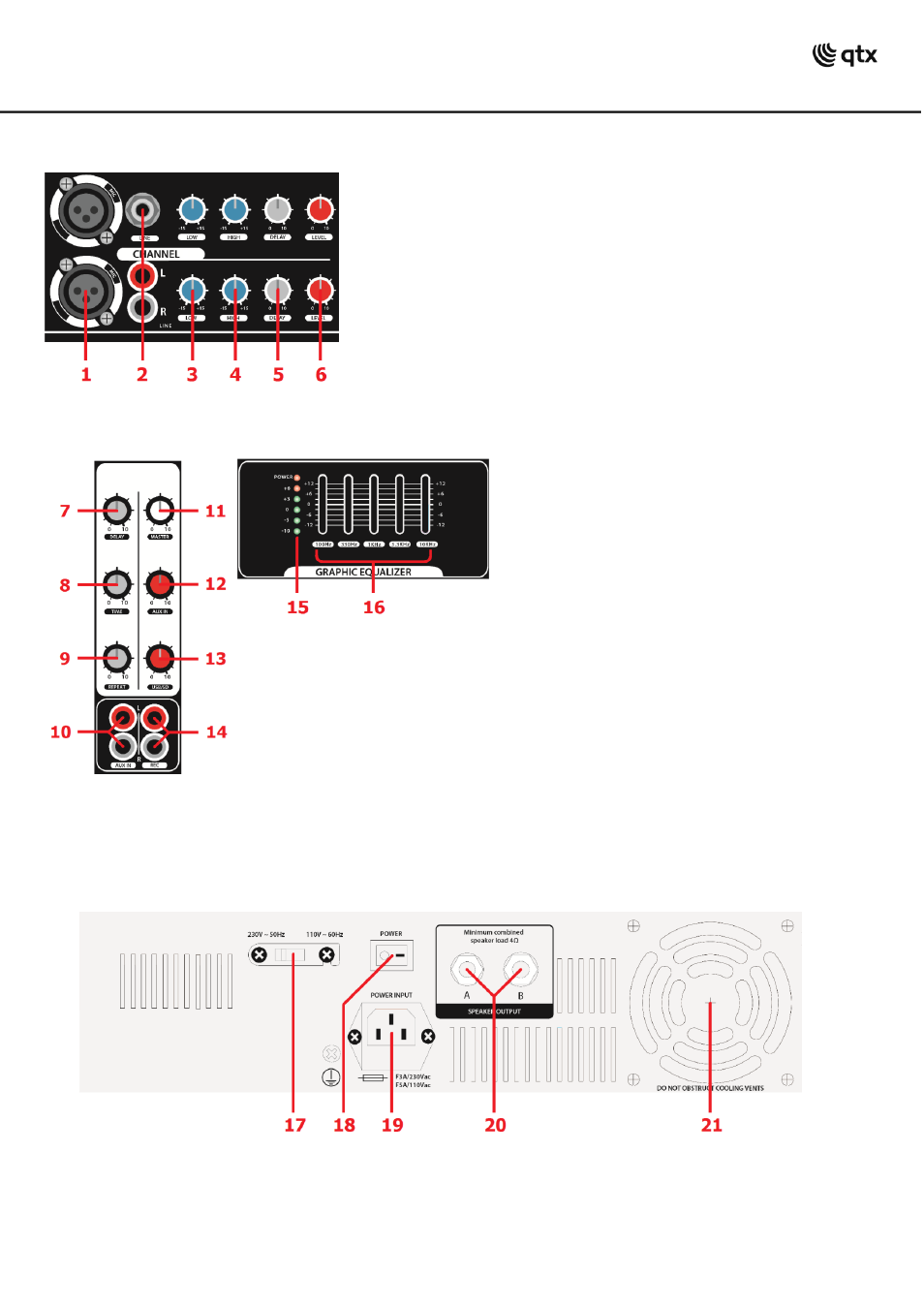

Input Channel
1. Microphone input (balanced XLR)
2. Line input (unbalanced jack or 2 x RCA)
3. Low frequency EQ control
4. High frequency EQ control
5. Delay effect level
6. Channel output level
Master Section
7. Delay effect master level control
8. Delay effect time control
9. Delay effect repeat control
10. AUX input connectors (2 x RCA)
11. Master level output control
12. AUX input level control
13. USB/SD player level control
14. REC output connectors (2 x RCA)
15. Power and level meter LEDs
16. Graphic EQ frequency sliders
Note: AUX IN and REC OUT connections (10, 14) are on the rear panel of PH4150
Rear Panel
17. Mains voltage selector 20. Speaker outputs (wired parallel)
18. Mains power on/off switch 21. Cooling fan vent
19. IEC mains inlet and fuse holder
