Arnott part # tcp-d – Air Suspension TCP-D Air Suspension Compressor/Dryer MERCURY Grand Marquis User Manual
Page 2
Arnott Part # TCP-D
New Compressor/ Dryer Assembly.
Instillation manual
1. Turn air suspension switch to the off position. (Switch is located on the passenger side of the trunk)
2. Raise left front corner of the vehicle with proper lifting equipment. ALWAYS USE EXTREME
CAUTION WHEN LIFTING VEHICLE! (Refer to shop manual for lifting instructions)

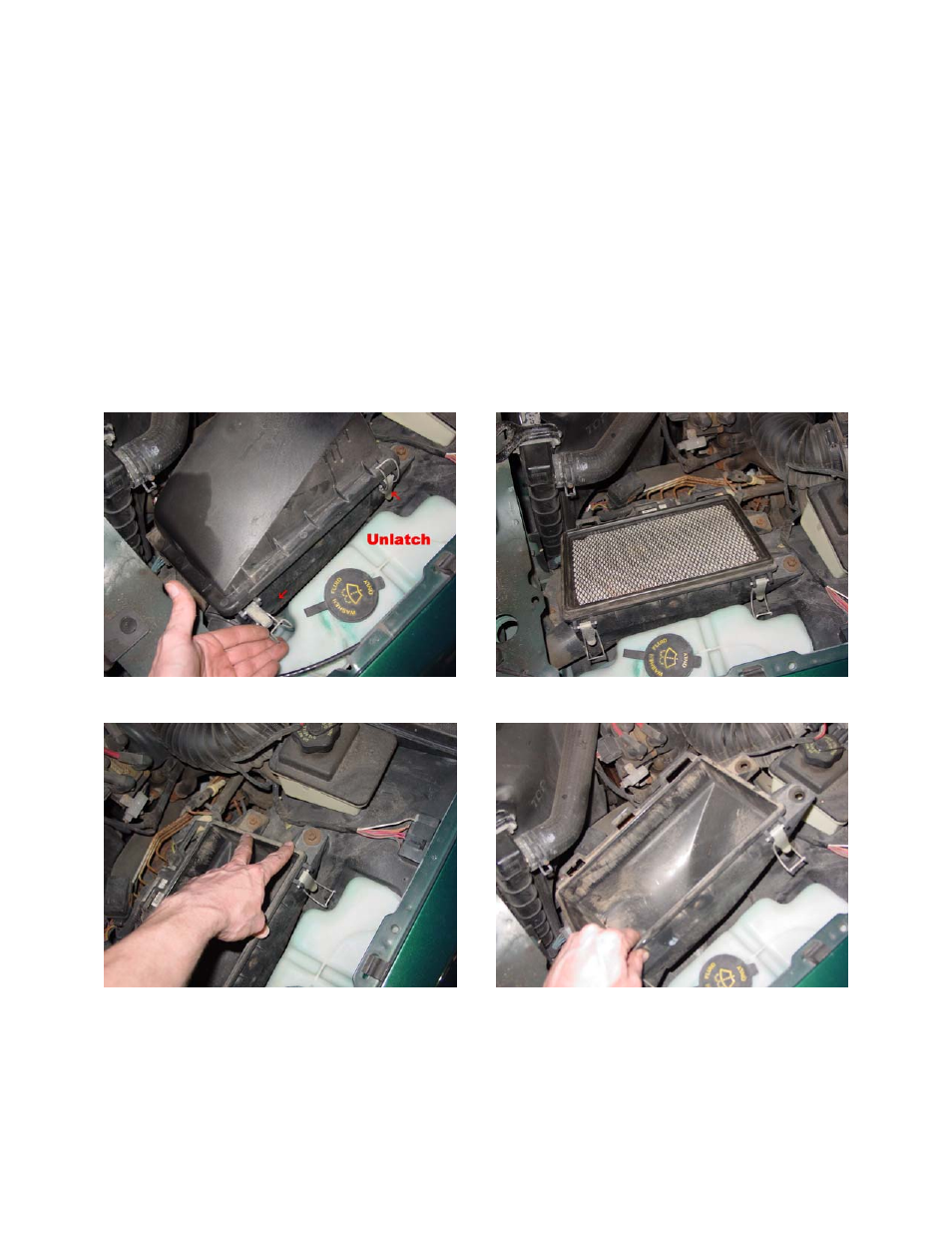

3. Unlatch air cleaner cover.
4.
Remove air cleaner cover.
5. Remove nuts to the lower air cleaner case. 6. Remove bottom air cleaner case.
