3: Operation
30 166-00000-000-02-0110

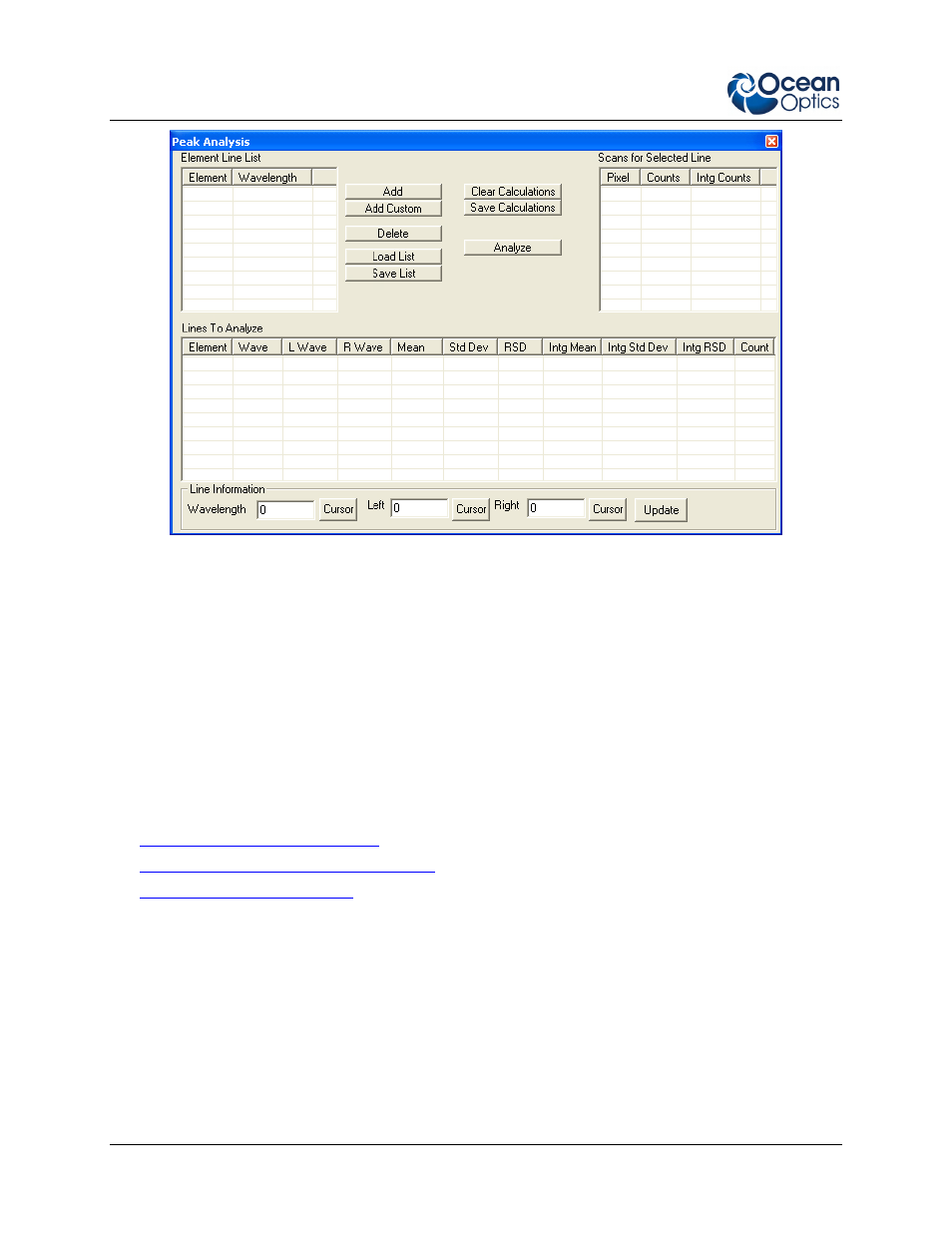

2. Select a line from the element list, then click the Add button. Repeat this step until you have
loaded all the desired lines.
3. Modify any properties, the L Wave, the R Wave, or set the Wavelength value for custom waves.
4. Click the Update button to save the changes.
5. Click the Scan button repeatedly.
You should begin to see data appear in the Lines to Analyze section.
Performing Correlation in OOILIBSplus
Follow the instructions in the sections below to perform a correlation in OOILIBSplus:
 Accessing the Correlation Window
 Adding Samples to the Correlation Library
 Saving the Correlation Library
Accessing the Correlation Window
► Procedure
1. Start the OOILIBSplus software.
2. Obtain a few samples to make sure that the system is working correctly.
