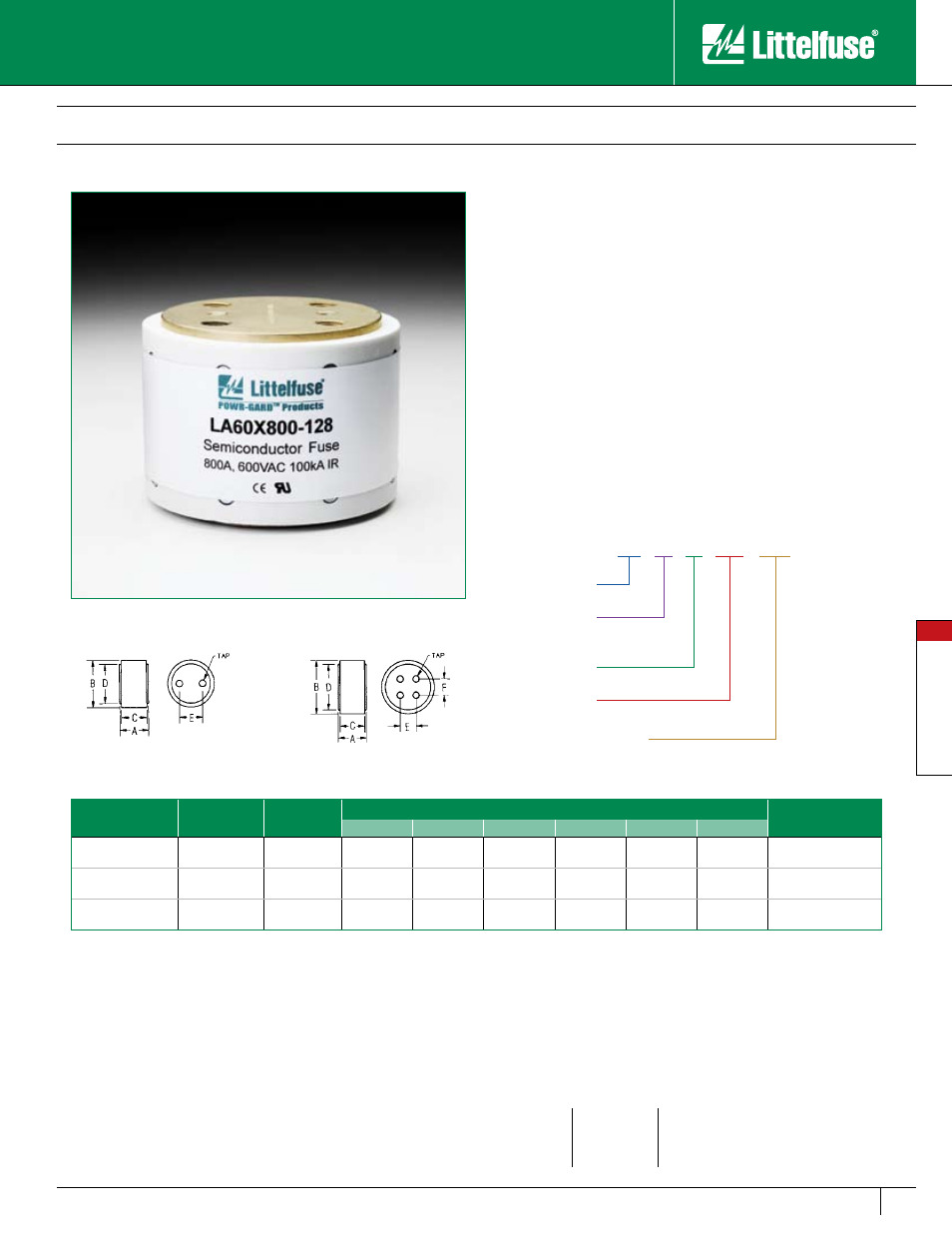

LA60X Semiconductor Fuses
600 VAC • Very Fast Acting • 700 – 2000 Amperes
Littelfuse LA60X semiconductor protection fuses are popular for the
protection of higher voltage heavy rectifiers such as traction rectifiers.
They can carry long sustained overloads common with heavy-duty
apparatus. The compact “hockey puck” design provides high power
protection in a small space.
Features
• Lowest I 2 t minimizes damage to protected components on
short- circuit.
• Controlled arc voltage reduces stress to circuit components during
fuse clearing.
Applications
Protection of heavy traction and electrochemical as well as rectifiers and
other heavy-duty equipment.
Ordering Information
Dimensions
Dimensions for reference only.
Amperes
Mount.
Type
Fig.
No.
Dimensions in Inches (mm in parentheses)
Tap
A B C D E F
700 – 800 128 1
4.00
(102)
3.00
(76.2)
3.75
(95.3)
2.50
(63.5)
1.50
(38.1)
- 3 ⁄
8
-24- 1 ⁄
2
deep
1000 – 1200 128 2
4.00
(102)
3.50
(88.9)
3.75
(95.3)
3.00
(76.2)
1.50
(38.1)
1.50
(38.1)
3 ⁄
8
-24- 1 ⁄
2
deep
1500 – 2000 128 2
4.00
(102)
4.50
(114)
3.75
(95.3)
3.75
(95.3)
1.50
(38.1)
1.50
(38.1)
1 ⁄
2
-20- 1 ⁄
2
deep
Contact Littelfuse for technical information.
Figure 1 Figure 2
Specifications
Voltage Rating: AC: 600 volts
Interrupting Rating: AC: 100,000 Amperes
Ampere Range: 700 – 2000 Amperes
Approvals: UL Recognized under the components program.
Ampere Ratings
700 1200 1800
800 1500 2000
1000 1600
