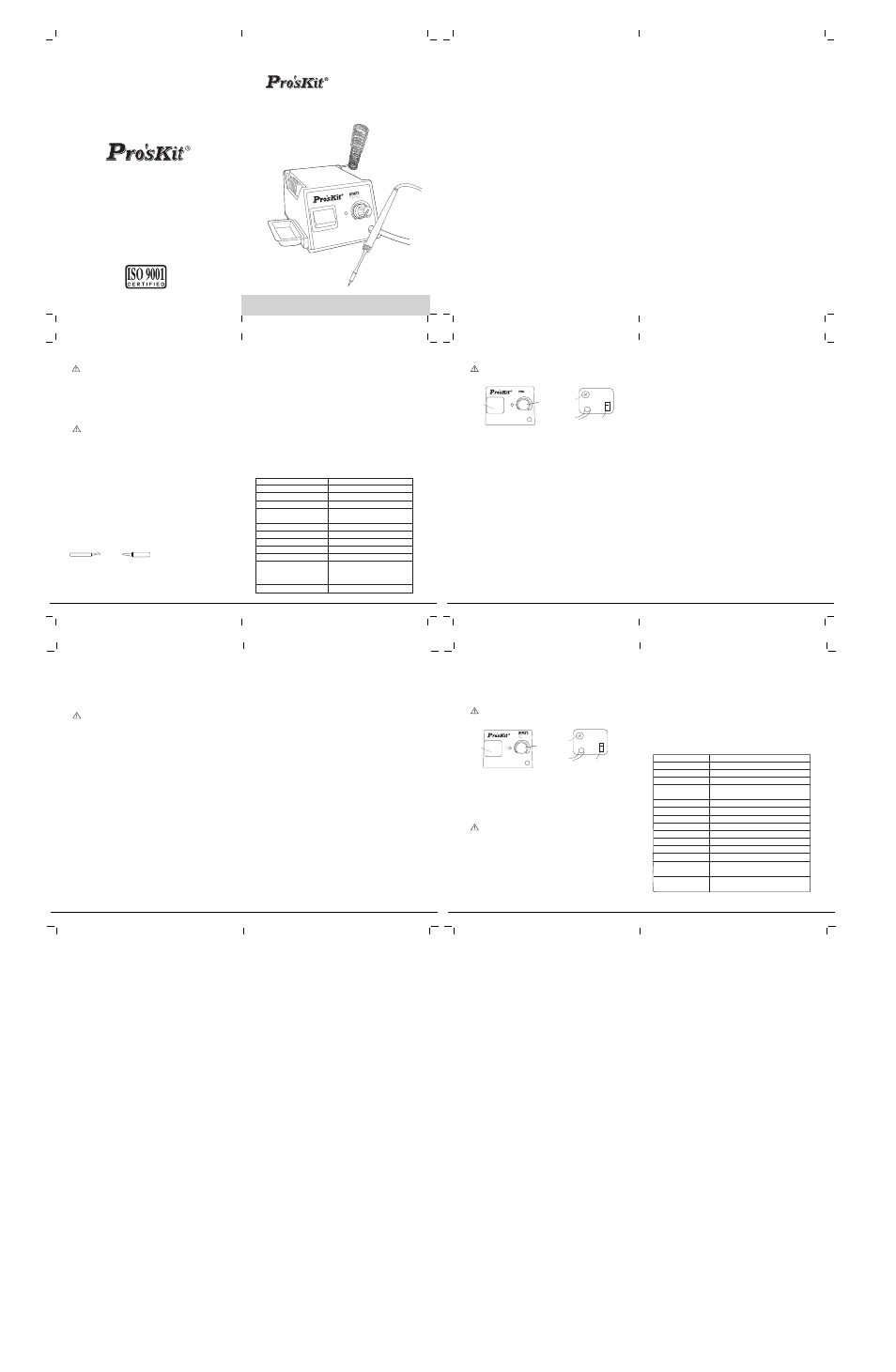

PROKIT'S INDUSTRIES CO., LTD.
SS-201
www.prokits.com.tw
MINI SOLDERING
STATION
Thank you for purchasing the Pro'sKit SS-201 Mini Soldering
Station. Before using the SS-201 for the first time, please read the
following instructions.
CARE OF THE SOLDERING TIP
The SS-201 soldering tip is made with iron plated copper. If used
properly, it should last for a long time. The following steps will help
ensure a longer tip life.
1. Always keep the tip tinned before switching off or storing for any
period of time. Only wipe before use.
2. Do not keep the SS-201 set at a high temperature for a long period of
time as this will break down the surface of the tip.
3. Never clean the tip with coarse abrasive materials or files.
4. If an oxide film does form, it can be cleaned by lightly rubbing with a
600-800 grit emery cloth, isopropyl alcohol or equivalent, and then
immediately reheating and retinning the tip to prevent oxidation of the
wettable surface.
5. Remove the tip and clean every twenty hours of use, or at least once
a week, and remove any loose build up in the barrel.
6. Do not use fluxes containing chloride or acid. Use only rosin or
activated resin fluxes.
7. Do not use any compound or anti-seize materials on the wettable
surface.
MAINTENANCE
SOLDERING TIP REPLACEMENT
CAUTION: Tip replacement or cleaning should be done only when the
element is at room temperature.
1. Unplug the SS-201 station
2. Use a set of flat pliers(no teeth) to carefully remove the tip from the
heating element.
3. Replace with cleaned or new tip.
SOLDERING HEATER REPLACEMENT
1. Unplug the SS-201 station and ensure that the element has cooled
down.
2. Remove the soldering tip (see above).
3. Unscrew the nut that holds the heating element to the handle.
4. Use a set of flat pliers (no teeth) to pull out the rubber plug.
5. Feed the power cord up through the unit until the connector is visible.
6. Disconnect the heating element (2 pins).
7. Connect the new heating element and feed it back into the handle.
8. Replace the plug into the handle and retighten the nut.
9. Insert the soldering tip onto the new heating element.
/
~
~
~
~~
Model no. SS-201
Spec. Description
Input Voltage(V) AC110V / AC220V
Consumption(W) 4~14W
Current(A) 0.07~0.16A(AC110V)
0.035~0.07A(AC220V)
Hight Voltage Test 1mA/1sec 1500VAC
Insulation Resistance() >1M
Earth Resistance() <0.1
Iron Tip Temperature () ~330(~626)
Handle Temperature(Max)() < 50
Package Contents SS-201 station w/soldering tip,
soldering stand, sponge, and
user's manual
Weight(g) 860g
• ~~
•
•
•
•
FEATURE:
• Precision temperature control: ~330∞ C (~626∞ F)
• Super slim, pen-like style for greater control and visibilty
• Specially designed for repairs to cell phones and PC boards
• Conductive soldering stand
• Dual voltage AC 110/220V
PRECAUTIONS
1. Caution-High Temperature Operation
The SS-201 operates at very high temperature. At all times observe
careful operating procedures.
2. Do not use the unit near ignitable gases, paper or other inflammable
materials.
3. Never touch the hot tip, with your hands.
4. After use, be sure to let the unit cool down.
5. White smoke may occasionally be emitted near the tip. This is
temporary and caused by very small pieces of dirt on the unit.
6. Never drop or sharply jolt the unit.
7. Do not disassemble the unit unless replacing the heating barrel.
8. Unplug the SS-201 station when not in use for prolonged periods.
OPERATING INSTRUCTIONS
1. Check voltage, 110/220V.
2. Plug the power cord into the power supply.
3. Turn the power switch to ON.
4. Adjust the temperature control knob. Start with a low temperature.
Gradually increase the setting by turning the temperature knob clock-
wise until the desired temperature is achieved.
5. When you have finished using the unit, turn the power setting to OFF.
If you will not be using the SS-201 for a prolonged period, unplug the
unit.
6. Follow instructions for soldering tip care below.
GENERAL CLEANING
The outer case of the iron or station may be cleaned with a damp cloth
using small amounts of liquid detergent. Never submerce the unit in
liquid or allow any liquid to enter the case of the station. Never use
solvent to clean the case.
LOW HIGH
ON
OFF
MINI SOLD
ERING ST
ATION
MINI SOLDERING STATION
ON
OFF HIGH LOW
SS-201 AC 110/220V
250V/0.5A 20mm
MINI SOLDERING STATION
ON
OFF HIGH LOW
SS-201
Temperature
control Power
switch
AC 110/220V
adjustment
Fuse
250V/0.5A 20mm
CONTROL PAD OPERATION
(Front) (Back)
Warning
Please make sure the exact voltage before use and adjust
the AC 110/220V power switch behind the frame to the correct position.
BEFORE YOU START
Warning
Before using the unit for the first time, please ensure that voltage setting
(AC110/220V) on the back of the unit is set to the correct position for
your location.
