SLIDING DOOR HARDWARE - POCKET DOOR
Hmax = Door Height + 3-1/16" • Hmin = Door Height + 2-7/16"
1
2
3

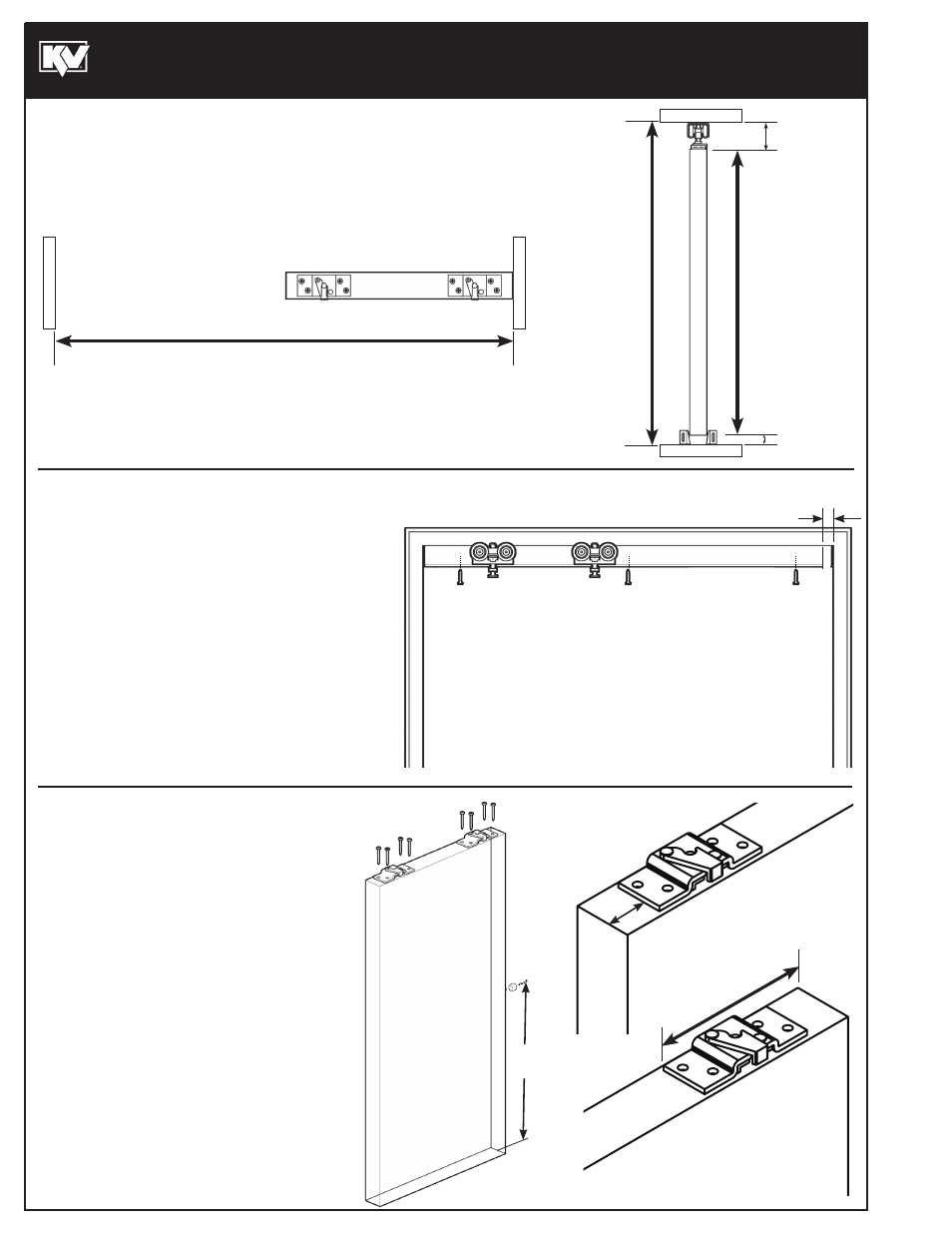

PREPARE OPENING
mOuNT FRAmE HARDWARE
mOuNT DOOR HARDWARE
Rough Opening Width = 2 x Door Width + 1"
Assembly
Instructions
#310291_C (1013)
2-1/16" - 2-11/16"
(5,2 cm - 6,8 cm)
• Place quick release top mount plates on top of
each door at the distance shown from the
outside edge.
• Using brackets as a template, drill 3/32" diameter
holes and secure with (#8 x 1") screws.
(F)
• Secure door bumper as shown.
Opening Width
Largeur de l’overture
Ancho de la abetura
Center
Centre
Centro
Rear
Arriére
Parte trasera
• Center track in opening.
• To take advantage of the key-holed slots, be sure there is
a minimum 3/4" gap from the finished opening to the
track. If necessary, track may be cut with a fine tooth saw.
•
ImPORTANT: Place hangers loose into track before
securing.
• Using track as template, mark screw locations.
• Drill 3/32" pilot holes and secure with (#8 x 1")
screws.
(F)
• To allow future replacement in the field, the screws
installed through the track to the header in the pocket
side must be backed out one half turn after seating
the track.
3/8"
(1 cm)
Opening Height
Hauteur Ouverture
Altura Abertura
Door Height
Hauteur Porte
Altura Puerta
1"
(2,5 cm)
Rear
Arriére
Parte trasera
Front
Avant
Delantera
5-1/2" (14 cm)
3/4" Min.
(1,9 cm)
Opening
Hauteur
Altura
Pocket
Partie
coulissante
escamotable
Cavidad
