3. SYSTEM DESCRIPTION

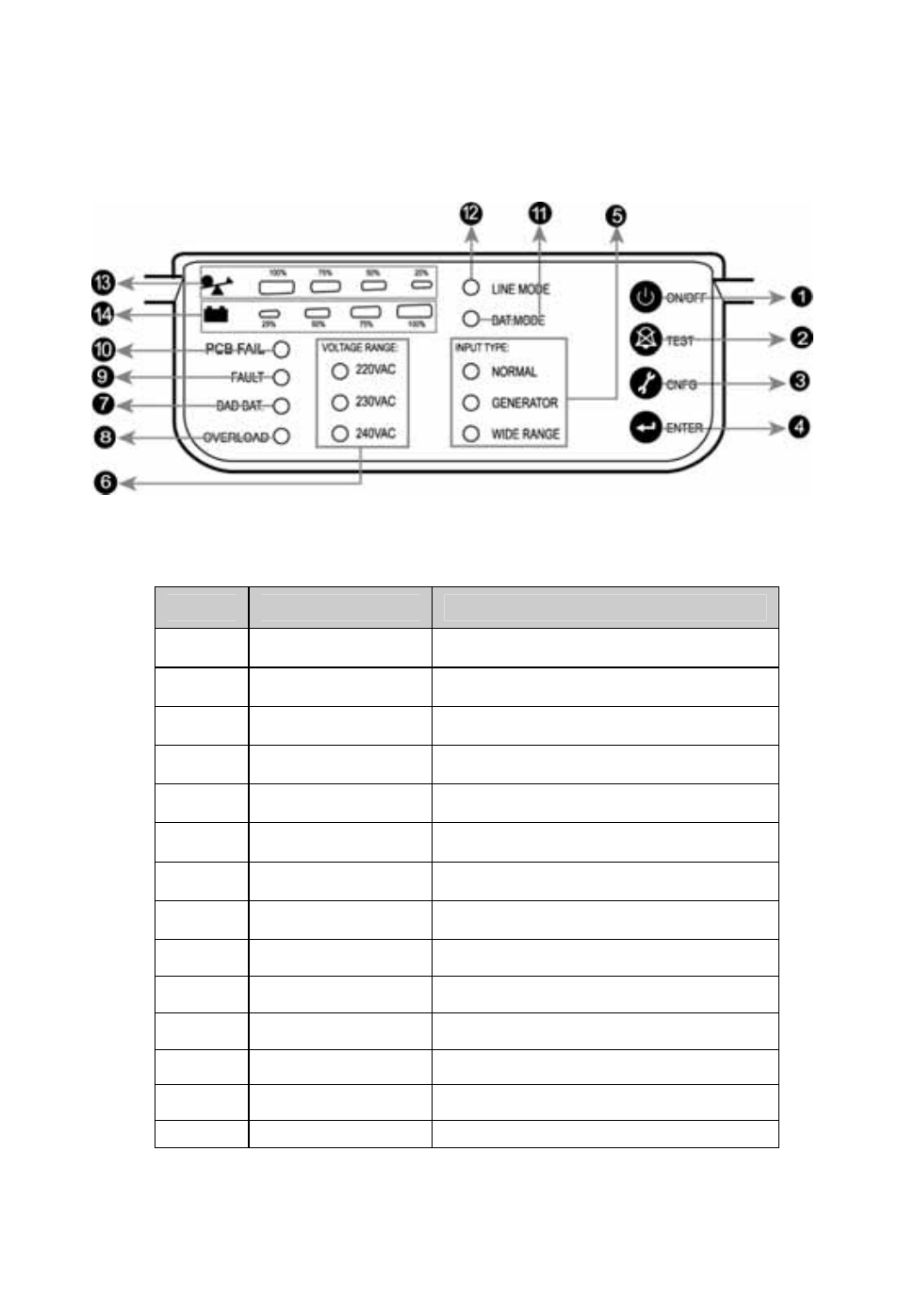

Front Panel —

No.

Function

Description

1 Switch

ON/OFF

2 Switch

Self-Test/ Alarm Silence

3 Switch

Config

4 Switch

Enter

5 LED

Input

Type(Operating

Mode)

6 LED

Voltage

Range

7 LED

Bad

Battery

8 LED

Overload

9 LED

Fault

10

LED

PCB Fail (or Site Fault)

11 LED

Battery

Mode

12 LED

Line

Mode

13

LED

Capacity of Load

14

LED

Capacity of Battery

6
