DS2143/DS2143Q
031397 40/40

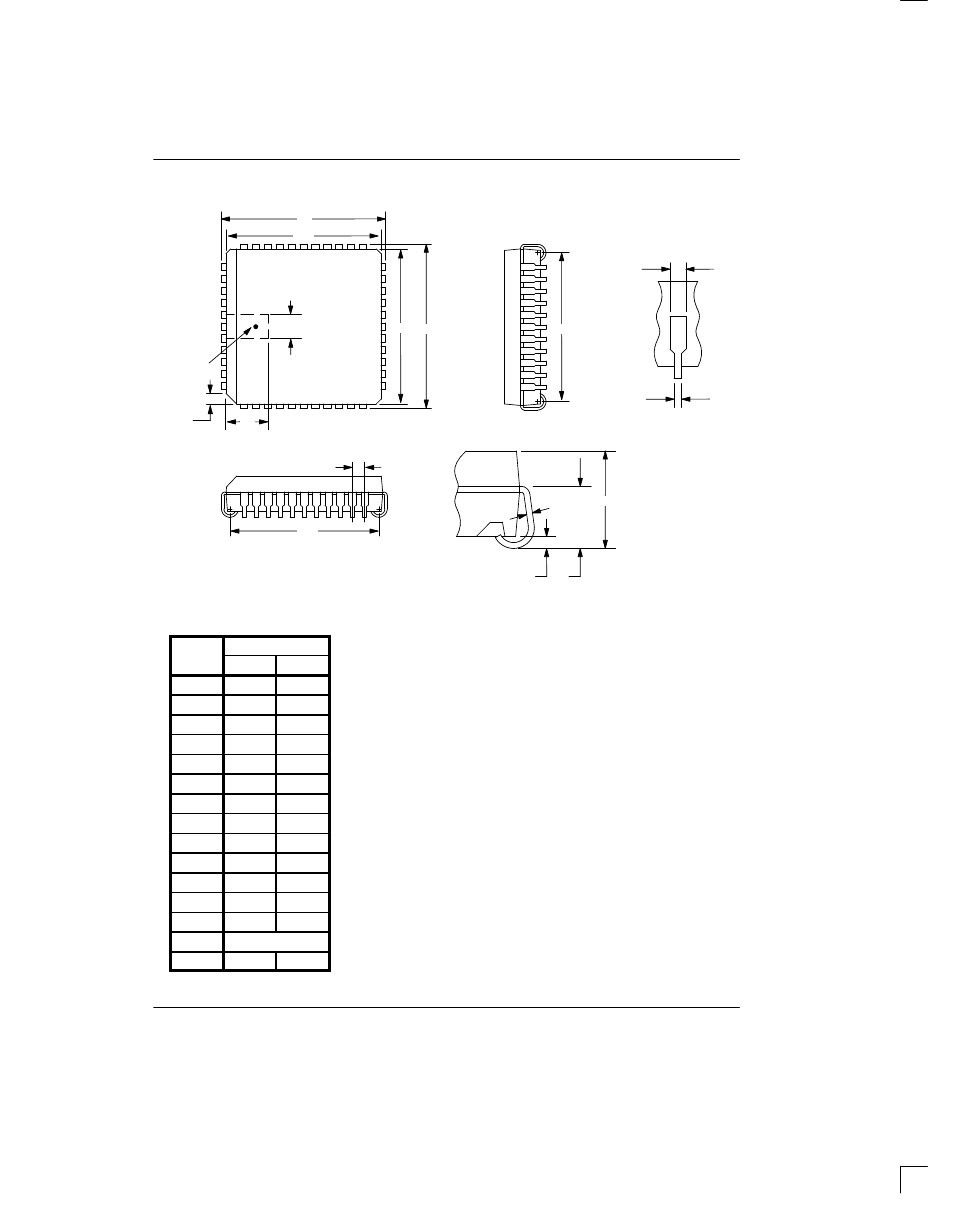

DS2143 E1 CONTROLLER 44–PIN PLCC
C
A1 A2
A
B
B1
.075 MAX
N
1
.150
MAX
NOTE 1
D1 D
CH1
E
E1
e1
E2
D2
NOTE1: PIN 1 IDENTIFIER TO BE LOCATED IN ZONE INDICATED.
INCHES
DIM MIN MAX
A 0.165 0.180
A1 0.090 0.120
A2 0.020 –
B 0.026 0.033
B1 0.013 0.021
C 0.009 0.012
CH1 0.042 0.048
D 0.685 0.695
D1 0.650 0.656
D2 0.590 0.630
E 0.685 0.695
E1 0.650 0.656
E2 0.590 0.630
e1 0.050 BSC
N 44 –
