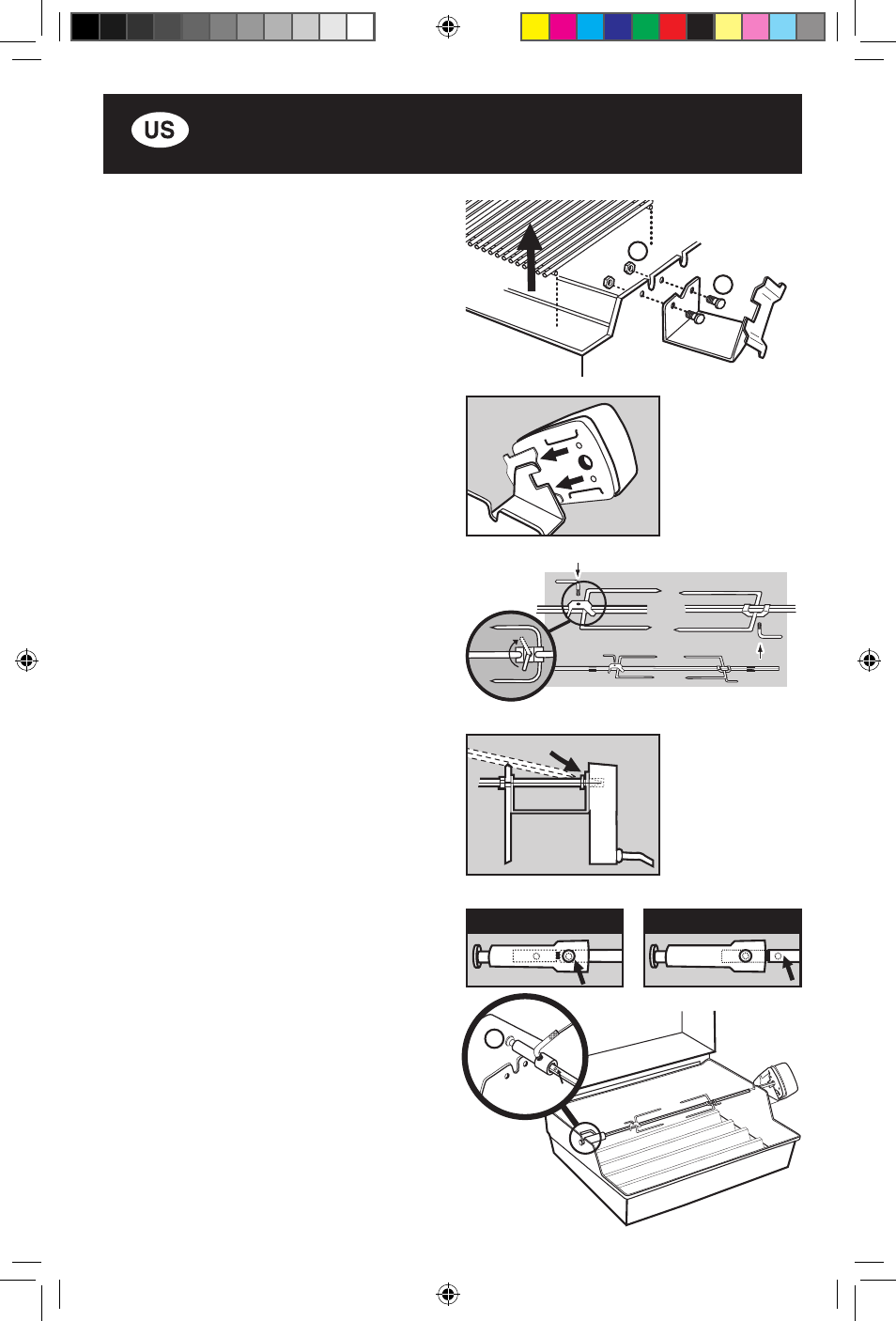

assemBly
5. Set the rotisserie shaft on rotisserie
support block
Place the handle (1) end of rotisserie on
the support notch.
4. Insert the rotisserie shaft in the
motor
Insert the pointed end of the rotisserie
shaft into the motor.
3. Put the spit forks on the rotisserie
shaft
Slide the forks onto the shaft so that the
tines are facing each other. Screw in the
thumb screws to hold the forks in place.
2. Attach the motor
Slide the motor onto the motor bracket.
1. Install the motor bracket
Attach the motor bracket to the right-hand
side of the cooking box, using the 1/4-20
fasteners
(1) and the 1/4-20 Keps nuts (2).
2
1
210 310 & 320
