Package Information

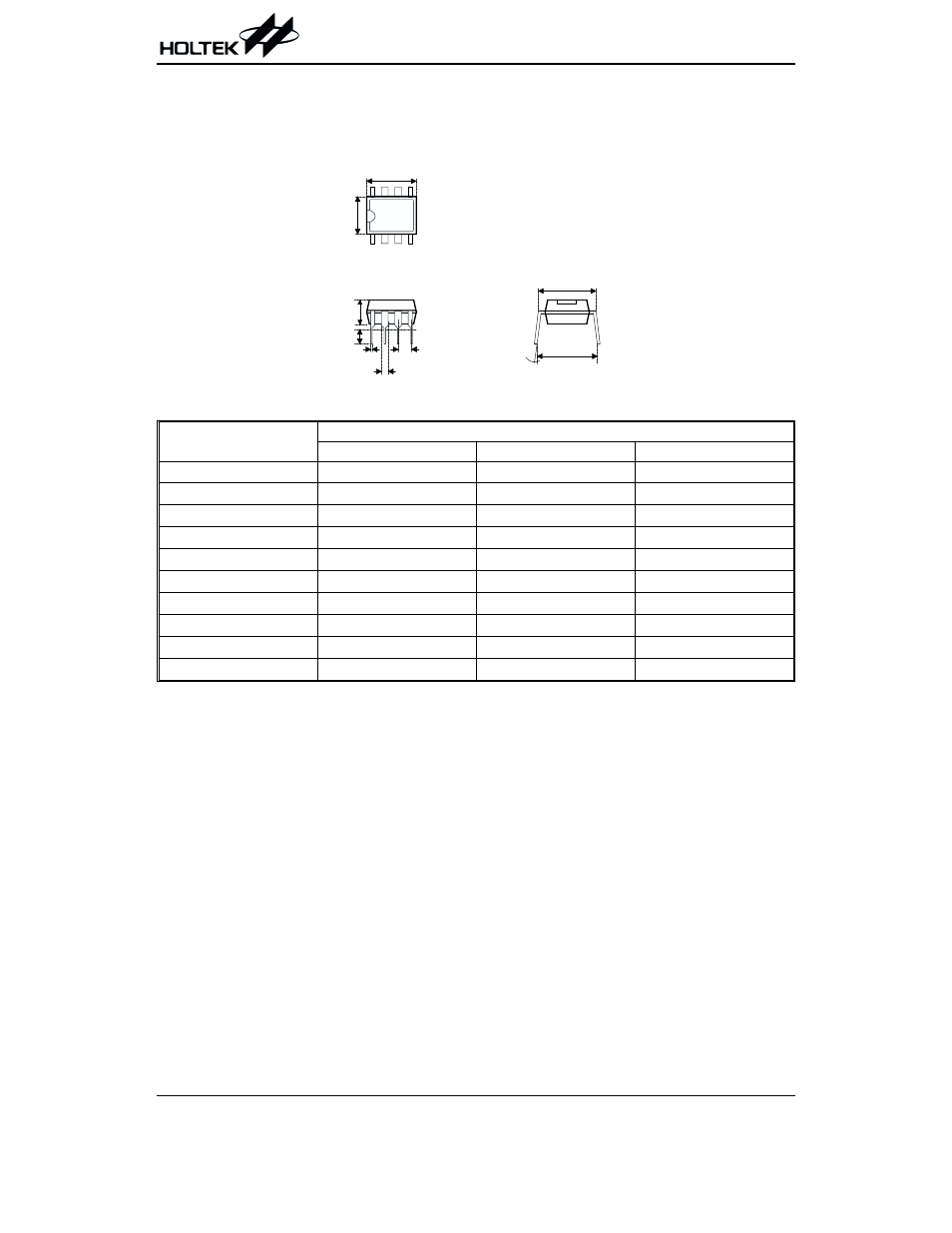

8-pin DIP (300mil) outline dimensions
Symbol
Dimensions in mil
Min. Nom. Max.
A 355 ¾ 375
B 240 ¾ 260
C 125 ¾ 135
D 125 ¾ 145
E 16 ¾ 20
F 50 ¾ 70
G ¾ 100 ¾
H 295 ¾ 315
I 335 ¾ 375
a 0 ° ¾ 15 °
HT24LC08
Rev. 1.20 7 November 4, 2002
=
8 5
4 1
A
B
C
D
E
F
G
H
I
