DS2130Q

041295 21/22

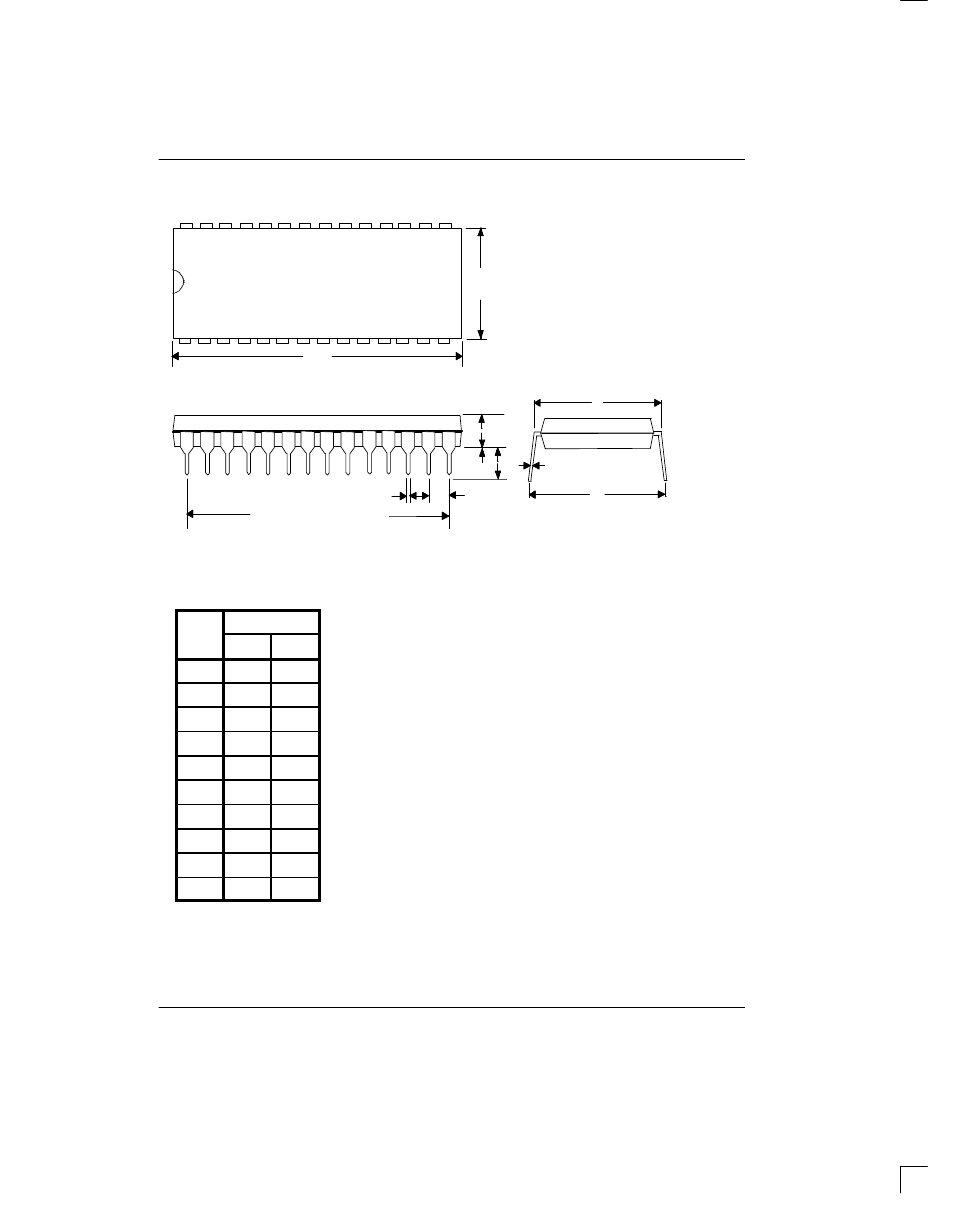

DS2130 VOICE MESSAGING PROCESSOR 28-PIN DIP

A

1

28

15

14

B

D

H

J

F

E

C

G

K

13 EQUAL SPACES AT + .010

TNA

INCHES

DIM

MIN

MAX

A

1.240

1.280

B

.540

.560

C

.140

.160

D

.590

.610

E

.020

.040

F

.110

.130

G

.090

.110

H

.600

.680

J

.008

.012

K

.015

.021
