W25X16, W25X32, W25X64

- 6 -

5. PIN CONFIGURATION PDIP 300-MIL

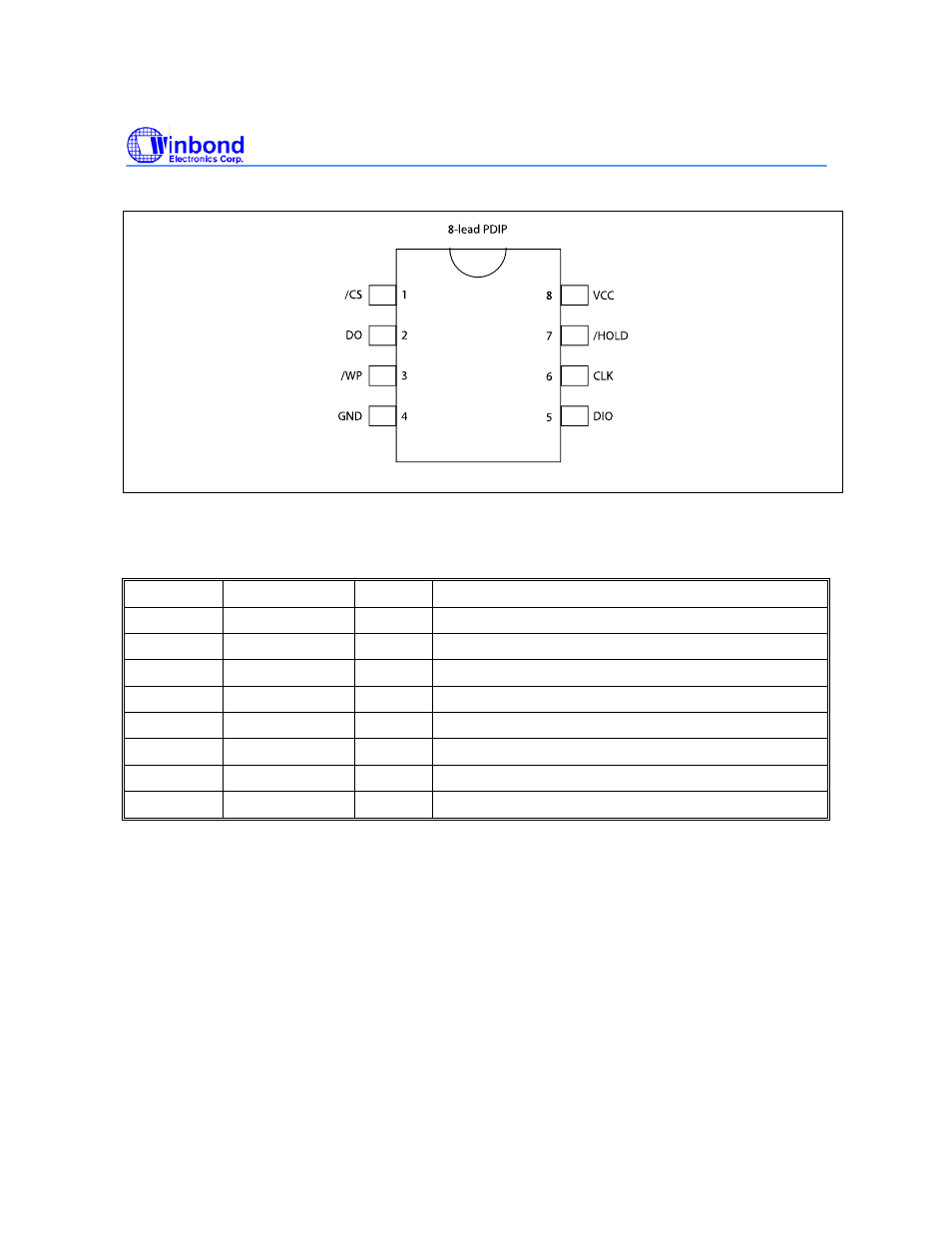

Figure 1c。W25X16 Pin Assignments, 8-pin PDIP (Package Code DA)

6. PIN DESCRIPTION SOIC 208-MIL, PDIP 300-MIL, AND WSON 6X5-MM

PAD NO.

PAD NAME

I/O

FUNCTION

1 /CS

I

Chip Select Input

2 DO

O

Data

Output

3 /WP

I

Write Protect Input

4 GND

Ground

5

DIO

I/O

Data Input / Output

6

CLK

I

Serial Clock Input

7 /HOLD

I Hold

Input

8 VCC

Power

Supply
