Technical

Model No. Description

Color

Dryer Vent - 4" Wide Mouth Hood with removable

bird guard, pipe & collar

Deflecto's policy is one of continual product improvement in design and manufacturing wherever possible,

therefore all specifications and designs are subject to change without notice and without incurring obligations. RVHAW4tps-D

Technical Product Specifications

HR4W Hood

White

HR4B

Hood

Brown

RVHCW4 Hood/pipe/collar unassem. White
RVHCB4

Hood/pipe/collar unassem. White

RVHXW4 Hood/pipe/collar assem. White
RVHXB4

Hood/pipe/collar assem. Brown

RVHAW4 Hood/pipe/collar assem. White
RVHAB4

Hood/pipe/collar assem. Brown

RVHUW4 Hood/pipe/collar unassem. White
RVHUB4

Hood/pipe/collar unassem. Brown

Performance Data

for all plastic molded vent hoods

General Information

Hood

Calcium filled Polypropylene

• Melting point: 325° F+

• UV Inhibitor added

Pipe

Aluminum

Collar

• High impact Styrene

4" dia. opening
• quick, easy installation
removable bird guard helps prevent birds

and other pests from nesting in vent or

entering home

durable weather resistant

5

1

/

4

"

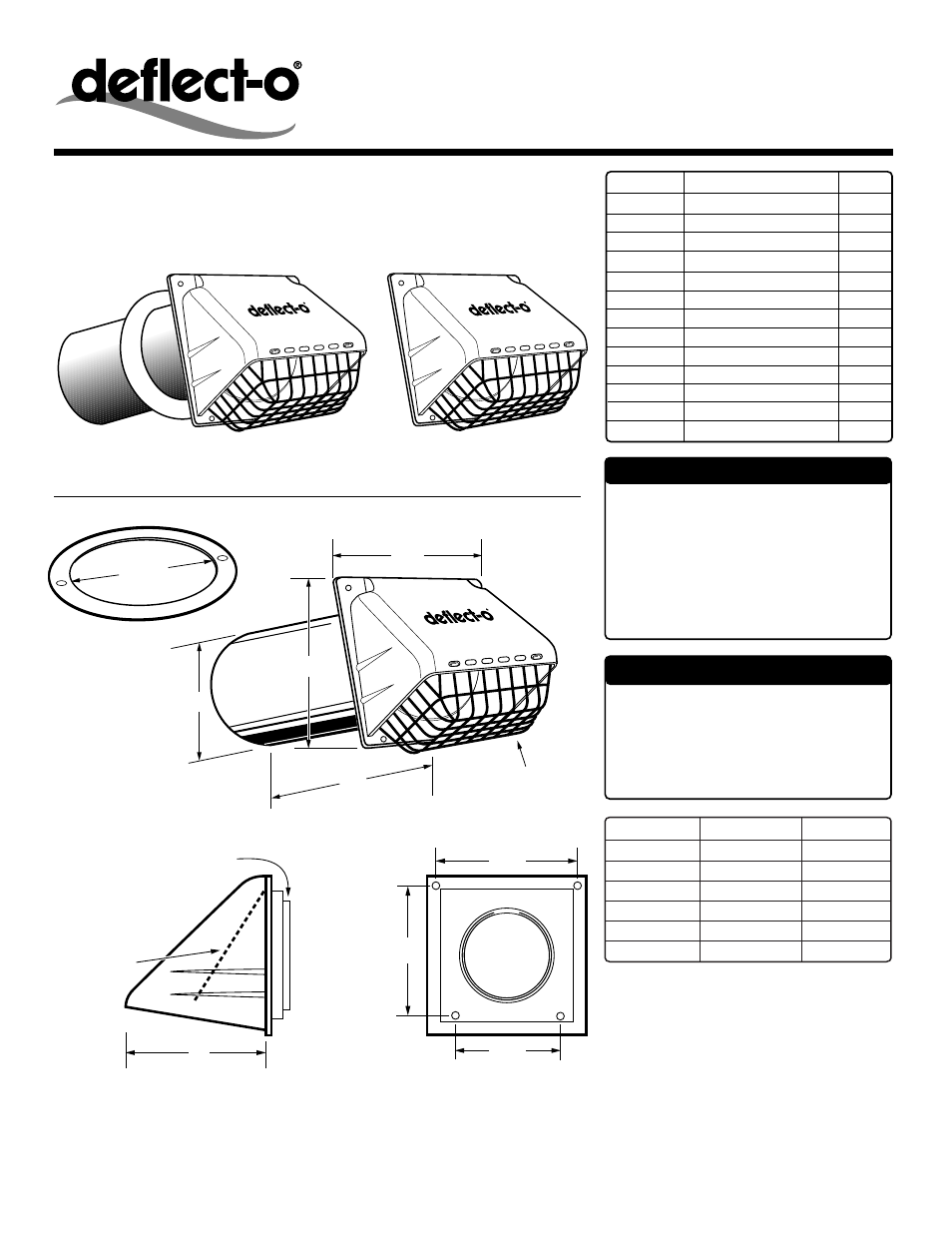

Rear View

Side View

5

1

/

8

"

4

1

/

2

"

4"

Molded for easy

connection of pipe

Damper

©2011

DEFLECTO, LLC • P.O. Box 50057 • Indianapolis, IN 46250 • www.deflecto.com

DEFLECTO/Canada Ltd. • St. Catharines, Ontario • Canada L2M 3Y2

4 1/8"

RVHCW4, RVHCB4, RVHXW4, RVHXB4, RVHAW4,
RVHAB4, RVHUW4, RVHUB4, RVMAB4, RVMAW4

HR4W, HR4B,

HRM4W

RVMAB4

Hood/pipe/collar unassem. Brown

RVMAW4 Hood/pipe/collar unassem. White

4"

11"

(pipe)

5

7

/

8

"

5

7

/

8

"

Easy snap-in
“removable”
bird gurad

Hood Dia.

CFM

p/d in/w.c.

4" (10.2 cm)

50

.025

4" (10.2 cm)

75

.026

4" (10.2 cm)

100

.029

4" (10.2 cm)

125

.03

4" (10.2 cm)

150

.03

4" (10.2 cm)

175

.04

Plastic

collar

We’ve designed a full 4" of free

air into our dryer vent hoods.

HRM4W

Hood

White
