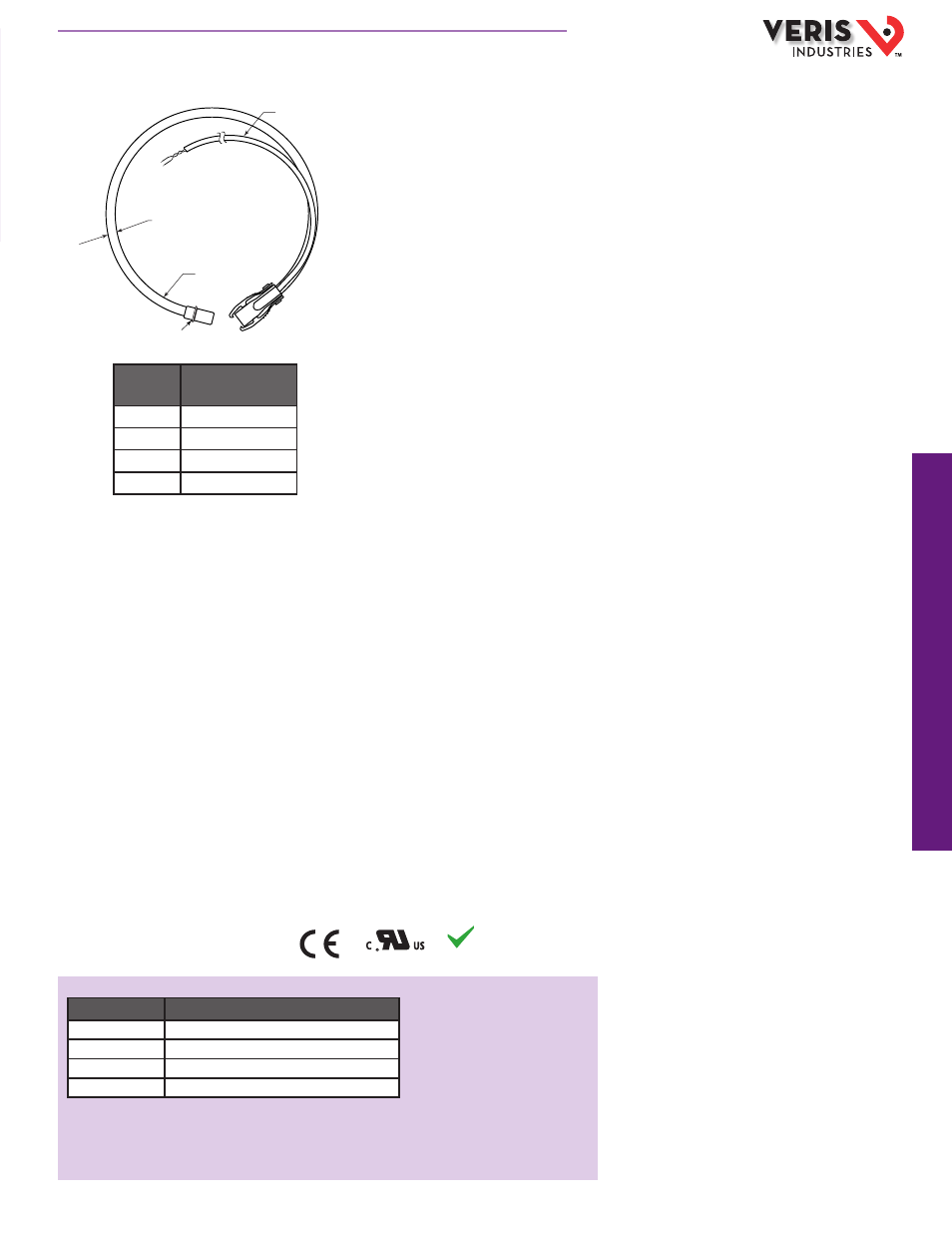

DIMENSIONAL DRAWING
ORDERING INFORMATION
RoHS
Compliant
48” (1220 mm)
Cable
Ø 0.32”
(8 mm)
Ø 0.6”
(14 mm)
I.D. when
closed
Length Approx. Inside Diameter
With Closed Connector
12" (305 mm) Ø 3.85" (98 mm)
18" (458 mm) Ø 5.75" (147 mm)
24" (610 mm) Ø 7.65" (195 mm)
36" (915 mm) Ø 11.50" (293 mm)
MODEL DESCRIPTION
U018-0001 CT, Rope, 12 in, up to 5000A
U018-0002 CT, Rope, 18 in, up to 5000A
U018-0003 CT, Rope, 24 in, up to 5000A
U018-0004 CT, Rope, 36 in, up to 5000A
E96927
HQ0004403.C 07132
These CTs are only compatible with the E5xxxA Series meters. See the E5xxxA datasheet
for ordering information.
