Index to parts and controls

Refer to the pages indicated in parentheses ( ) for details.

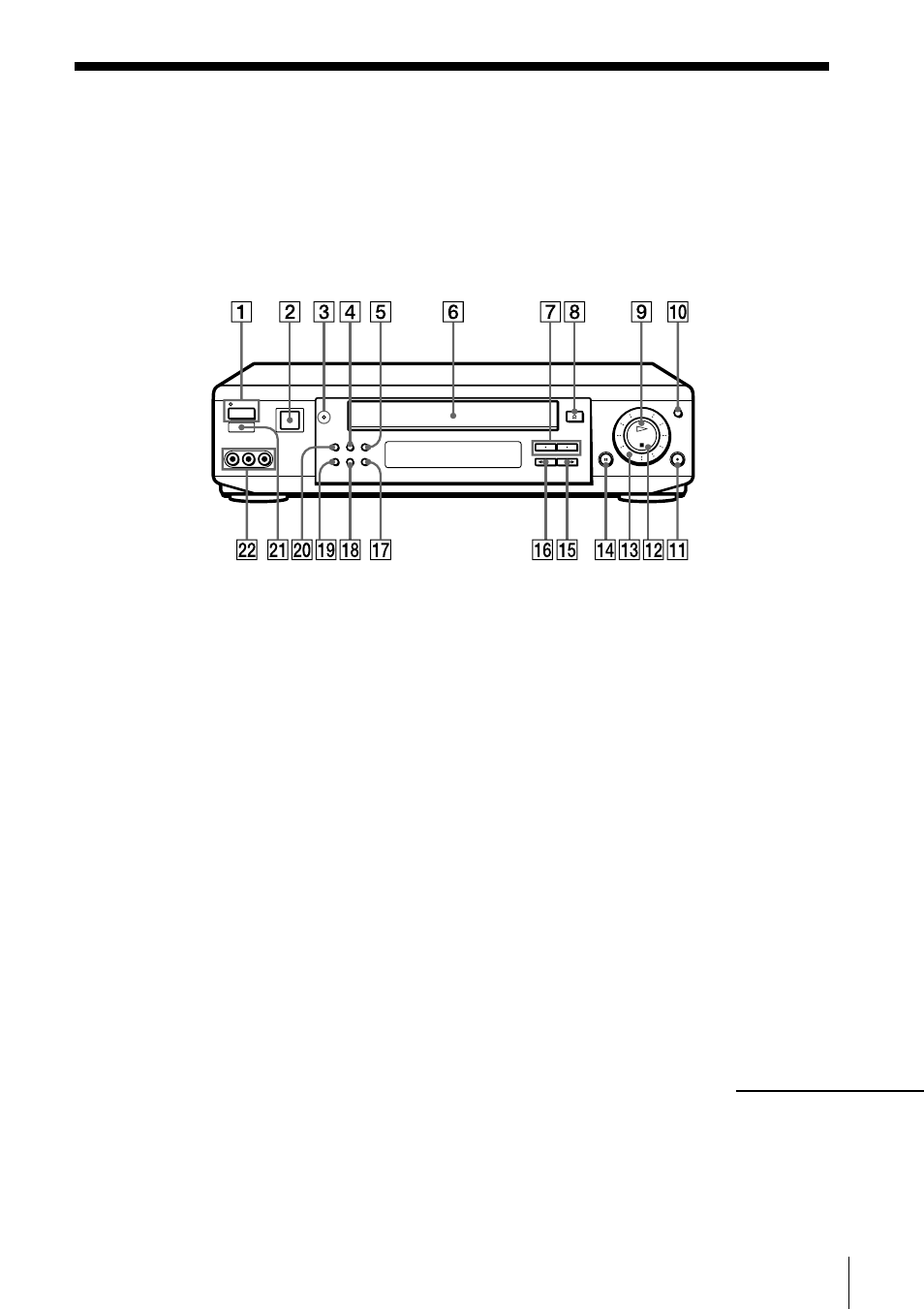

Front panel

1 POWER switch/indicator (13, 16)

2 SmartFile sensor (46)

3 SMARTFILE indicator (41, 46)

4 INPUT SELECT button (7, 37)

5 EASY SET UP button

6 Tape compartment

7 CHANNEL/TRACKING +/–

buttons (7, 33)

8 6 EJECT button (5)

9 · PLAY button (4, 18)

0 JOG button/indicator (19)

!¡ r REC (record) button (7, 37)

!™ p STOP button (5, 37)

!£ Shuttle ring (8, 19)

!¢ P PAUSE button (5, 37)

!∞ ) FF (fast forward) button (5, 18,

23)

!§ 0 REW (rewind) button (5, 18, 23)

!¶ COMMAND MODE button

!• OK button (44)

!ª CURSOR . button (46)

@º SMARTFILE button (41, 45)

@¡ Remote sensor

@™ LINE-2 IN VIDEO/AUDIO L/R

jacks (36)
