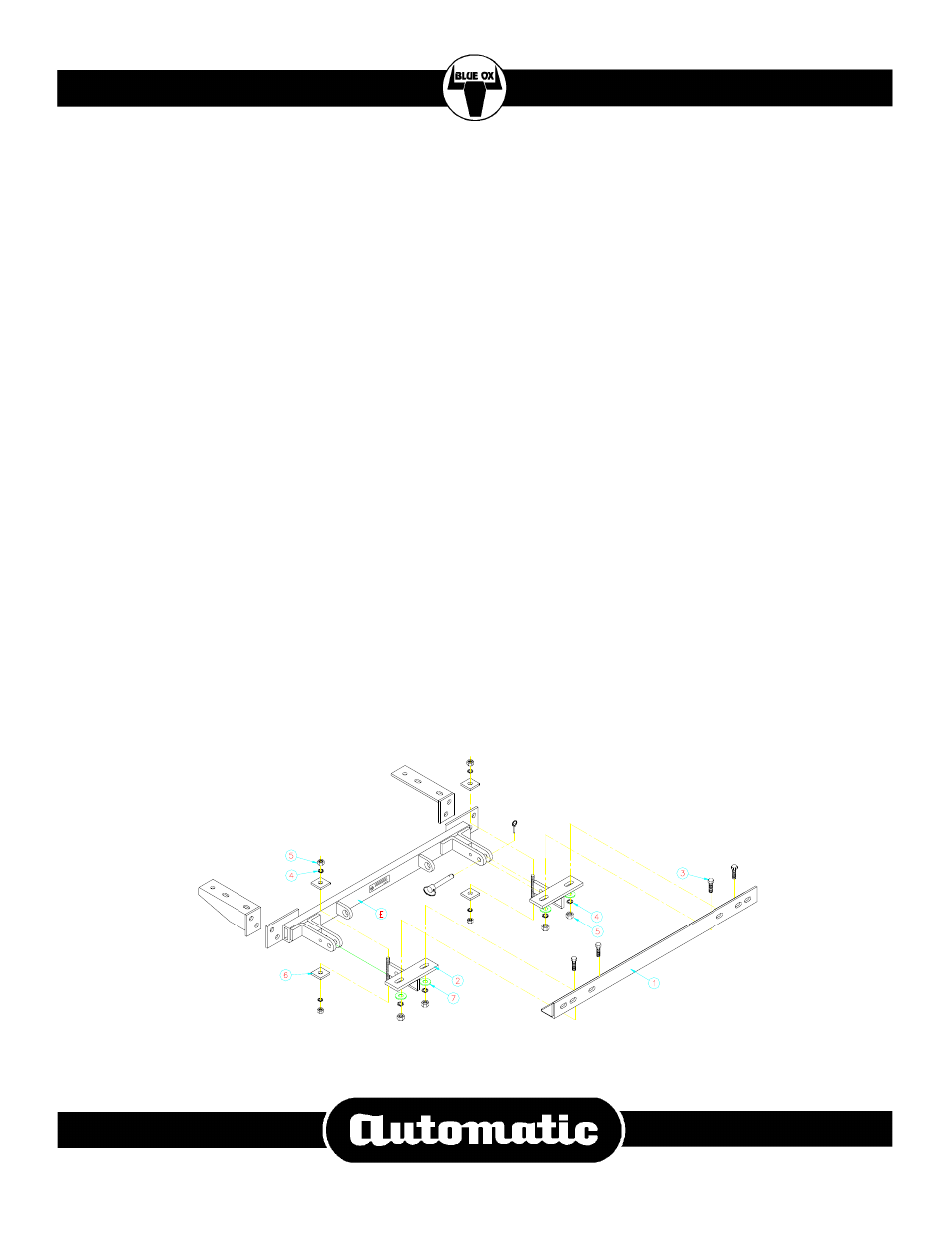

BX88135 Installation Instructions
Adapter, BlueOx Baseplate to Duncan Towbar
1. Slide receiver connector (2) into the attachment tabs extending out from the vehicle.
2. Line up the large 1/2 inch holes and insert pins.
3. Place the retaining plate (6) on the top and bottom of the 1/2" threaded rod on the receiver connector.
4. Secure the plates with 1/2" hex nut and lock washer.
5. Center the cross angle (1) on the top plate of the receiver connectors and secure with 1/2 inch bolts, lock
washers, and hex nuts.
6. Install the tow bar and safety cables according to the instructions included in their packages.
7. DEALER OR INSTALLER: BE CERTAIN THE USER RECEIVES THE INSTRUCTION SHEET.
Parts List
Ref. No.
Qty.
Part No.
Description
1
1
61-5365 .................................................................................................... Cross Angle
2
2
61-5360 ....................................................................................... Receiver Connector
3
4
201-0011 ................................................................................. 1/2-13 X 1 1/4 Hex Bolt
4
8
203-0012 .......................................................................................... 1/2 Lock Washer
5
8
202-0005 .............................................................................................. 1/2-13 Hex Nut
6
4
102-5781 ............................................................................................. Retaining Plate
7
4
203-0005 ............................................................................................ 1/2 Flat Washer
E
XXXXXX .......................................................................................... Blue Ox Baseplate
