Activeforever Global Lift Rotational Series Reach R450R User Manual

Page 6

Front of Anchor Sleeve must be 12” to 17” from the water’s edge

Optimal placement is 14”

Connect copper wire to the bonding lug and then to your bonding grid

Cold Pin’s should be ½” rebar 6” to 8” long

NOTE: Make sure your anchor sleeve is level and square with your pool’s edge.

COMPACT SAND

6”

3’

Concrete

Cold Pin

Water

Pool Wall

3’

Anchor Sleeve

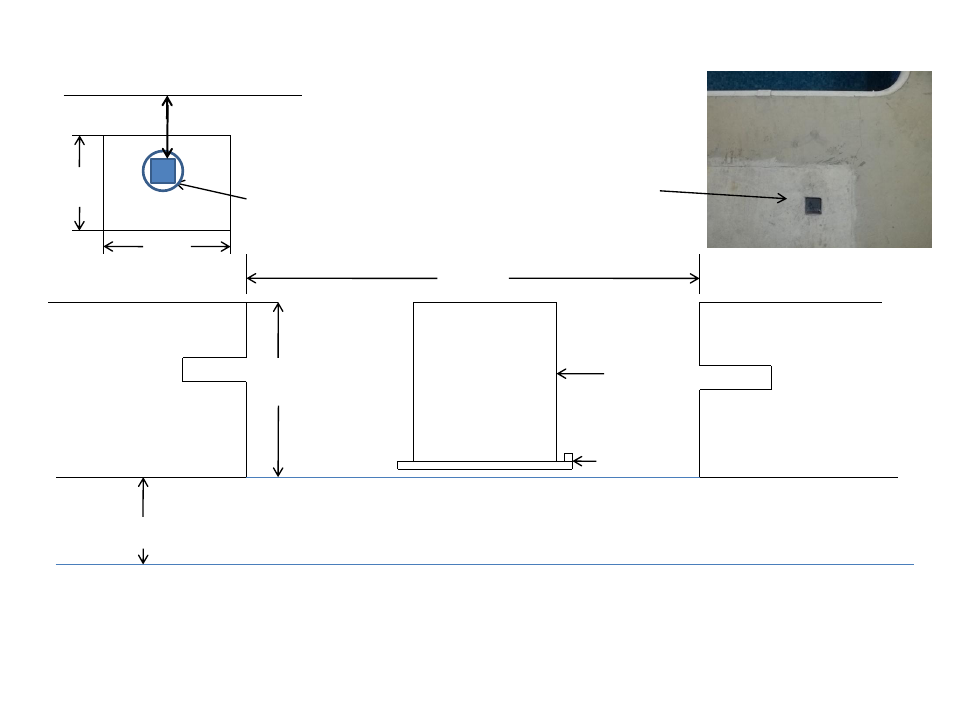

Overview

Section Detail

12” to 17” Distance From Water’s Edge (front edge of anchor sleeve)

SUPERIOR SERIES – SLEEVE ANCHORING SYSTEM

Bonding Lug

Anchor Sleeve

Actual application
