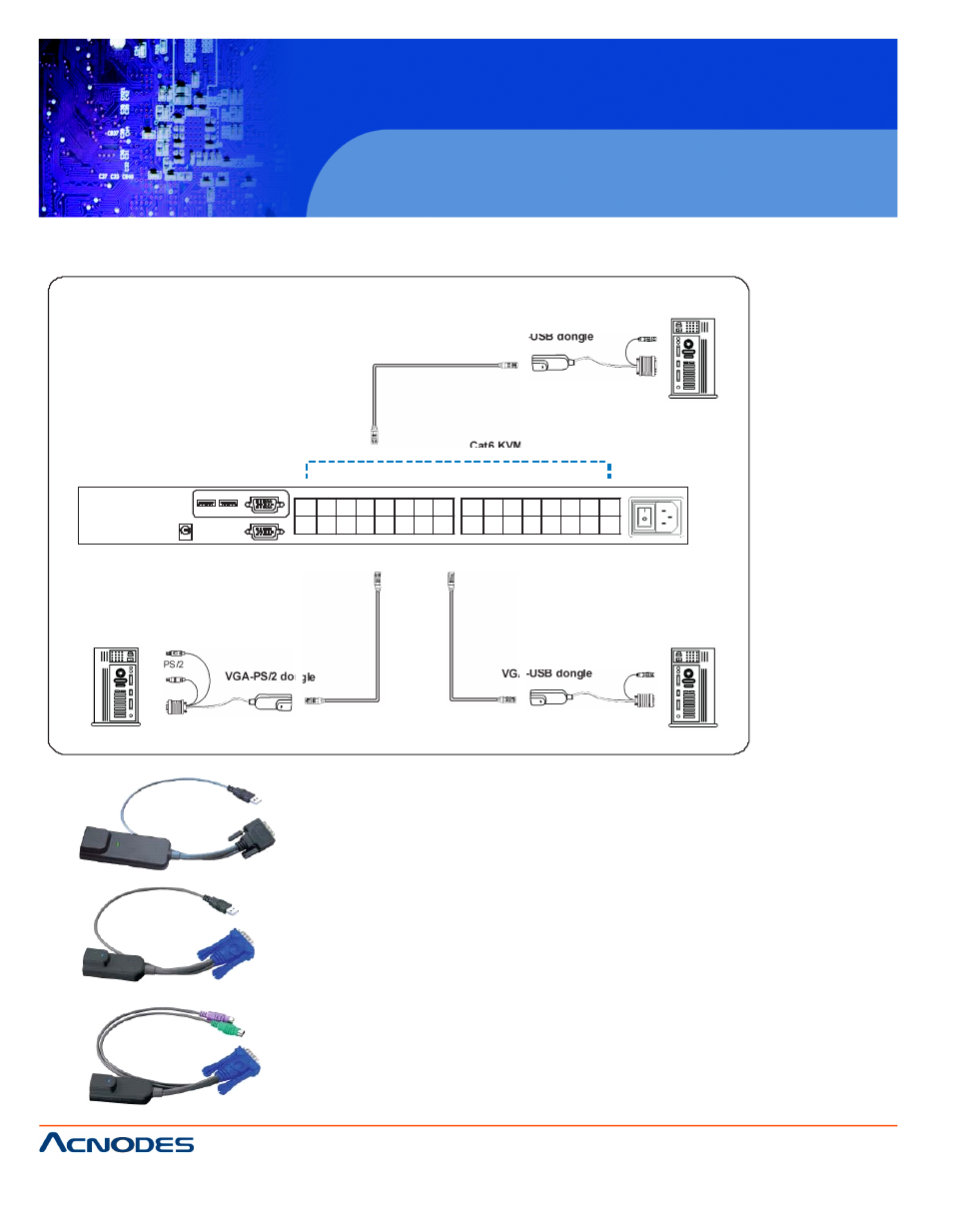

< 1.2 > KVM port & Cat6 dongle connection
Combo C
U
CAT 5 / 6 cable
max. 40 meters
DVI-USB dongle
USB
DVI-D
Cat6 KVM port
32
3 1
30
29
28
27
26
2 5
16
15
14
13
12
11
10
9
24
23
22
21
20
19
18
17
8
7
6
5
4
3
2
1
PS/2 Servers
U
PS/2
VGA
VGA-PS/2 dongle
CAT 5 / 6 cable
max. 40 meters
VGA-USB dongle
USB
VG A
DVI-USB dongle
¦
To connect DVI-D connector to the computer’s video c
¦
To connect USB connector to the computer’s USB port
VGA-USB dongle
¦
To connect DB-15 connector to the computer’s video c
¦
To connect USB connector to the computer’s USB port
VGA-PS/2 dongle
¦
To connect DB-15 connector to the computer’s video c
¦
To connect PS/2 keyboard connector to the computer’
¦
To connect PS/2 mouse connector to the computer’s
