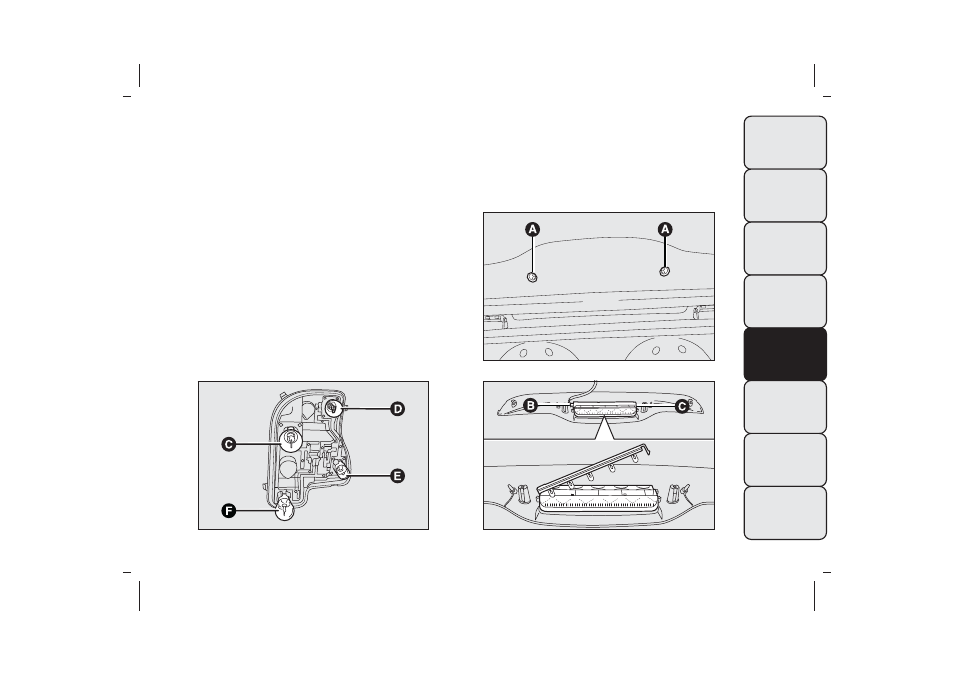

The bulbs are arranged as follows: fig. 116:
C Direction indicators
D Stop
E Side
F Reverse (right headlamp) / fog lamp (left headlamp)

THIRD BRAKE LIGHTS

To change the bulb proceed as follows:
❒ remove the two guard caps and unscrew the two

fastening screws A fig. 117;

❒ remove the assembly;
❒ disconnect the electrical connector B fig. 118;
❒ press the retaining device C fig. 118 and open the

bulb holder;

❒ remove the pressure-fitted bulb to be replaced and

replace it;

❒ close the bulb holder making sure the catch is

correctly locked;

❒ screw in the two fastening screws and reinstall the

guard caps.
