11
English
PREP
ARA
TION

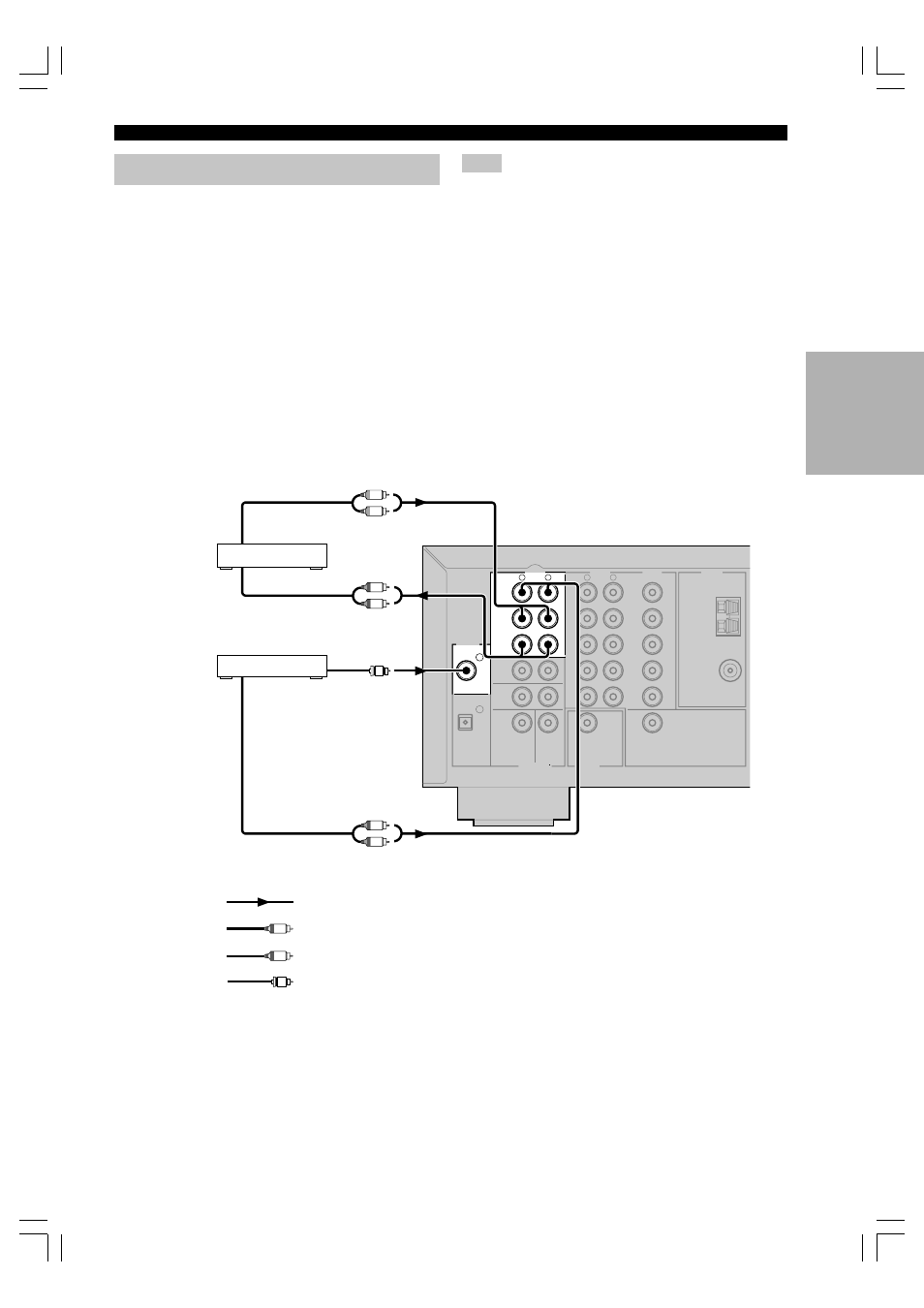

Connecting audio components
■ Connecting a CD player
Connect the coaxial digital output jack on your CD player
to the DIGITAL INPUT CD jack on this unit.
y
• Use the AUDIO jacks on this unit to connect to a CD player
that does not have a COAXIAL DIGITAL OUTPUT jack, or
to record from CD players.
■ Connecting a CD recorder or MD
recorder
Connect the input jacks on your CD recorder or MD
recorder to the MD/CD-R OUT (REC) jacks.
Connect the output jacks on your CD recorder or MD
recorder to the MD/CD-R IN (PLAY) jacks to play a
source from your recording component.
indicates right analog cables
indicates left analog cables
indicates signal direction
CD player
indicates coaxial cables
CD recorder or
MD recorder
CONNECTIONS
AUDIO
L R
2
1
AUDIO VIDEO TUNER
L R
CD DVD
AM
ANT
GND
FM
ANT
IN
(PLAY)
MAIN
DVD
CD
DIGITAL
INPUT
SUB
WOOFER CENTER
SUB
WOOFER
MONITOR
OUT
SURROUND OPTICAL
COAXIAL
OUT
(REC)
MD
/CD-R
D-TV
/CBL
V-AUX
IN
VCR
OUT
6CH INPUT OUTPUT
75 Ω UNBAL.
C
L
R
AUDIO
INPUT
L
R
AUDIO
OUTPUT
L
R
AUDIO
OUTPUT
L
R
COAXIAL
OUTPUT
C
Note
• Once you have connected a recording component to this unit,
keep its power turned on while using this unit. If the power is
off, this unit may distort the sound from other components.
