Xerox DocuColor 250 - Manual (Page 17)

Page 17
N OTE : The illustrations below show pages with Portrait orientation printed LEF (Long Edge
First).
For Top-Bottom printing, rotate the pages 180 degrees and turn them face down.
N OTE : For jobs imposed using Impose, always flip the pages along the long edge of the page.
6 Print the second job with the same settings as the first, but set the Media Type to the Side 2
setting that corresponds to the Media Type you used for the first job.
For example, if you printed the first job using Plain (64-105 gsm), print the second job using
Plain (Side 2) (64-105 gsm).

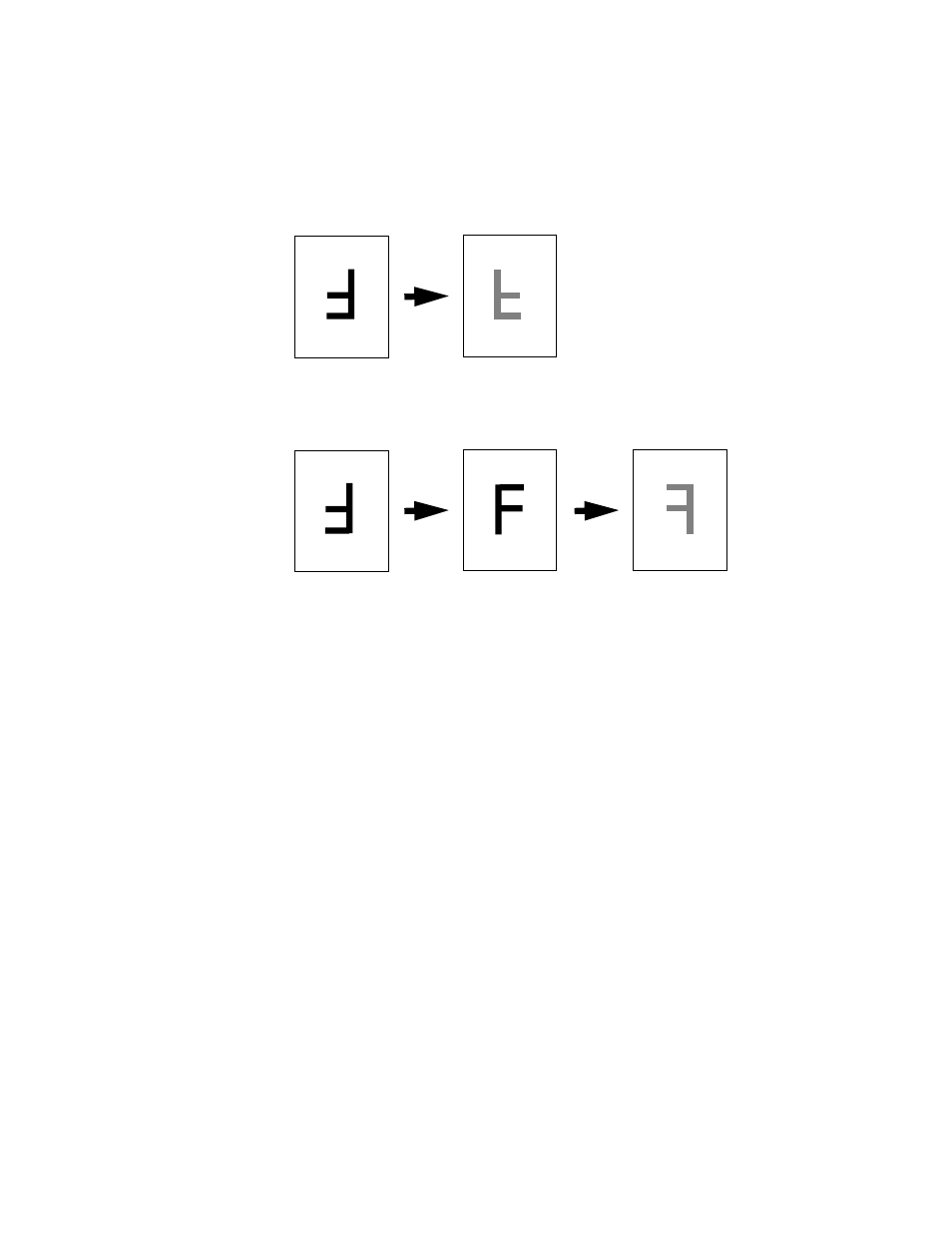

Top-Top printing
Input Tray Output Tray
Top-Bottom printing
Input Tray Output Tray
