Local Operation

3-44

975-0200-01-01

Connecting to the Load in Remote Sensing Mode (Parallel Control
Method)

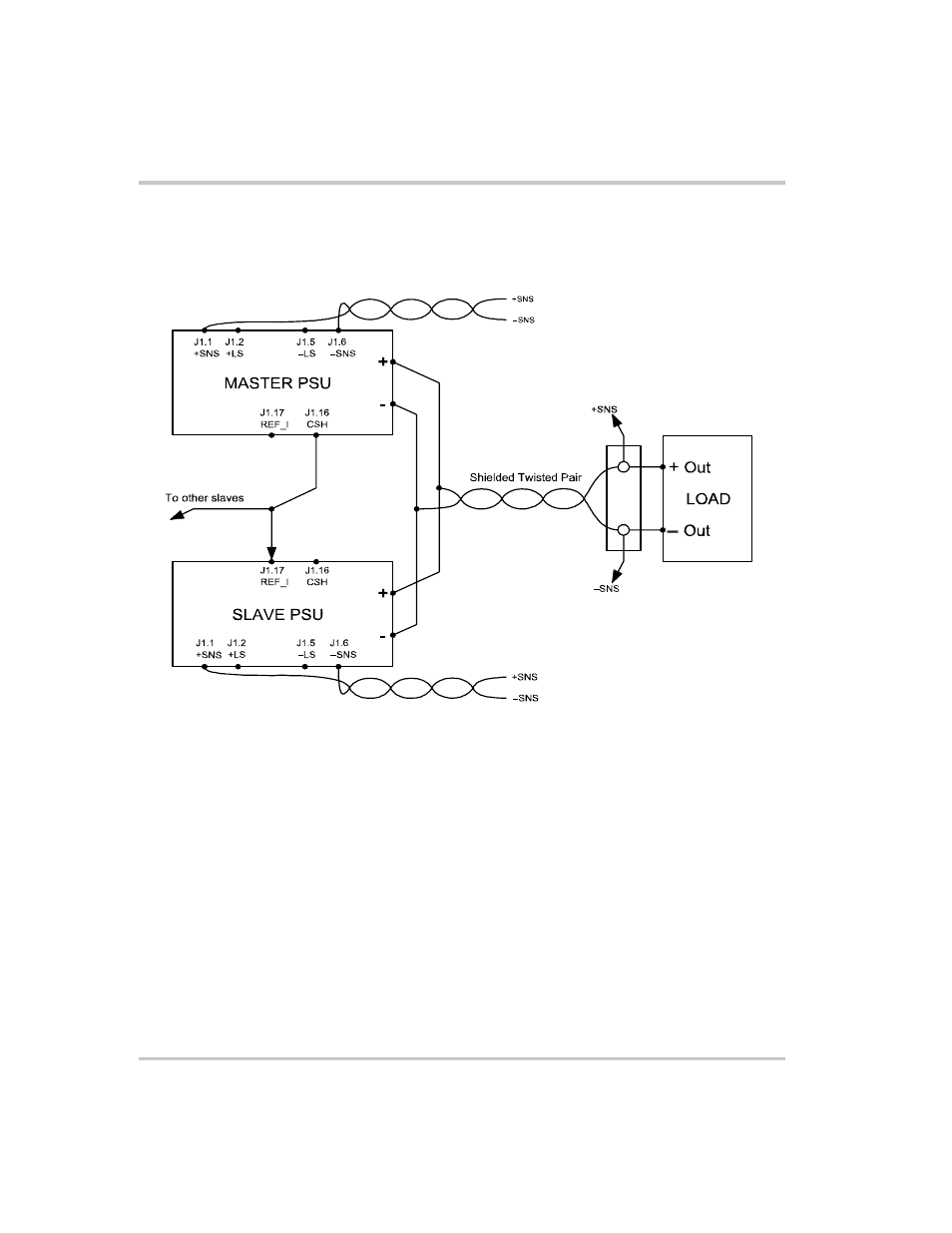

Figure 3-8 Load Connections in Remote Sensing Mode (Parallel Control Method)
