19
CONNECTIONS
PREP
ARA
TION
■ Connections for audio components
DIGITAL OUTPUT (MD/CD-R) jack and DIGITAL INPUT (MD/CD-R) jack are not equipped with HTR-5840. To connect a MD
recorder or tape deck to HTR-5840, use the analog connections (AUDIO OUT/IN).

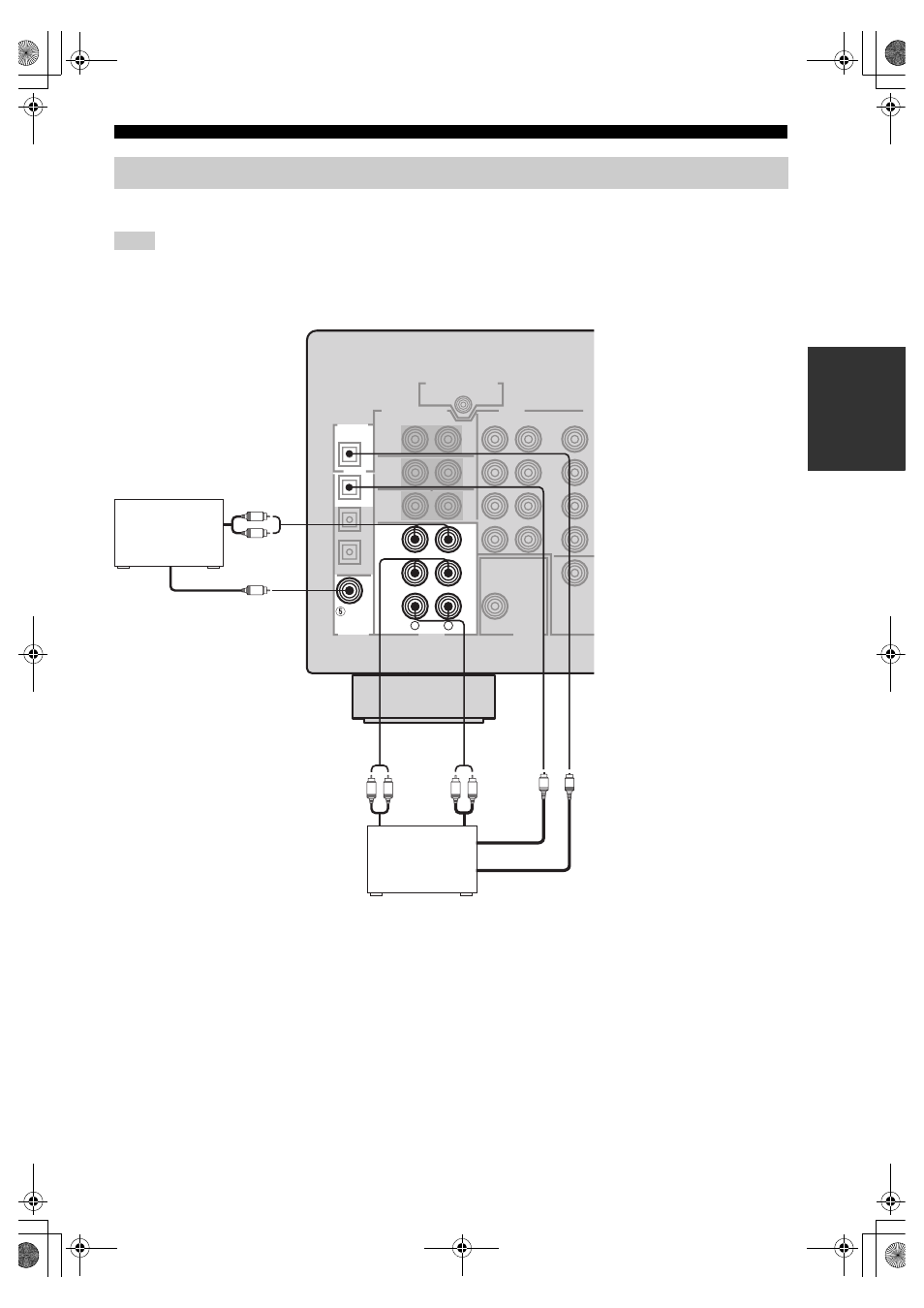

Connecting audio components
Note
R L
IN
(PLAY)
OUT
(REC)
MD/
CD-R
CD
DIGITAL
INPUT
DIGITAL
OUTPUT
MD/CD-R
CD
COAXIAL
MD/CD-R
L
R
L R L R
C
O
O
CD player
MD recorder or
tape deck
(HTR-5850 U.S.A. model)
Coaxial out
Audio out
Audio in Audio out
Optical in
Optical out
