Getting to Know Your Product
QuickStart Practice Guide 9
Activity 3: Replacing consumables
Replacing the toner cartridges
Note: During the demonstration, do not remove the
toner cartridge fully from the copier/printer. Toner
may spill if the cartridge if fully removed.
Demonstrate how to replace a toner cartridge.

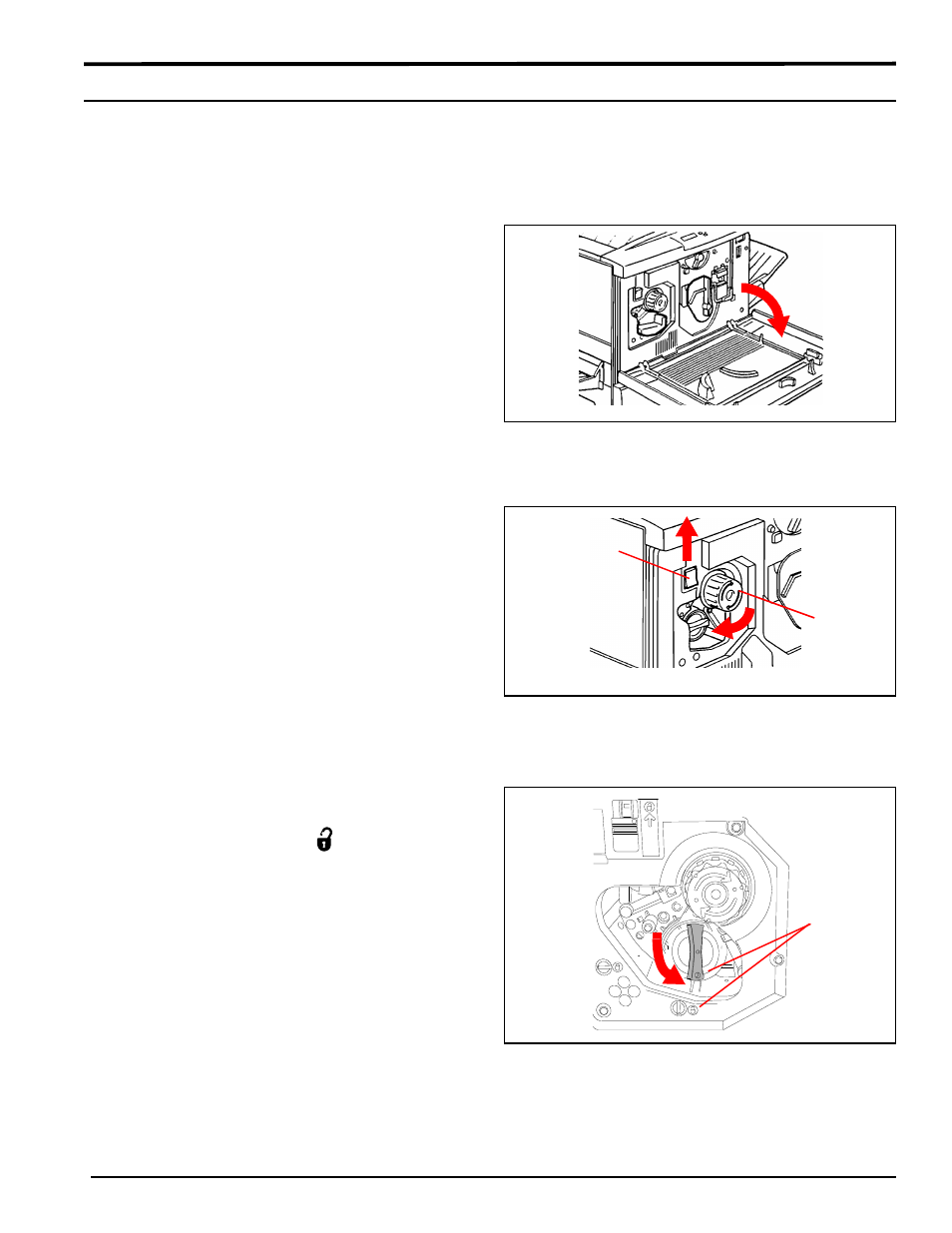

1. See Figure 22. Open the front cover of the
copier/printer.
2. See Figure 23. If the cartridge to be replaced is not
at the cartridge window, push the anti-rotation
switch up to release the lock.
3. Turn the knob clockwise to rotate the toner car-
tridge turret until the desired color cartridge
appears in the cartridge window.
4. See Figure 24. Turn the cartridge handle counter-
clockwise to align the “l” mark on the cartridge
with the unlocked symbol (
) on the copier/
printer.
1
Figure 22
2
3
Figure 23
4
Figure 24
