6486A/6487RA: RAISED TOILET SEAT WITH LOCKING CLAMP
WITH SUPPORT ARMS 6487RA, 6487RA-1
ASSEMBLY & OPERATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
Note: The most current version of these instructions can be found online at www.grahamfield.com
WARNING: Important! Read and understand these instructions before installing or using
the Raised Toilet Seat with Locking Clamp. If you do not understand any part of these
warnings, cautions or instructions, contact a healthcare professional for direction in the
use of this product. If the raised toilet seat is not properly assembled and installed, per-
sonal injury and damage to the raised toilet seat could result.
WARNING: If components are damaged or missing, contact your dealer immediately. DO
NOT use substitute parts. Use only Lumex replacement parts. Non-Lumex replacement
parts could cause personal injury and damage to the raised toilet seat.
WARNING: This product has a weight limit of 300 lb.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury
caused by improper assembly, installation or use of this product.

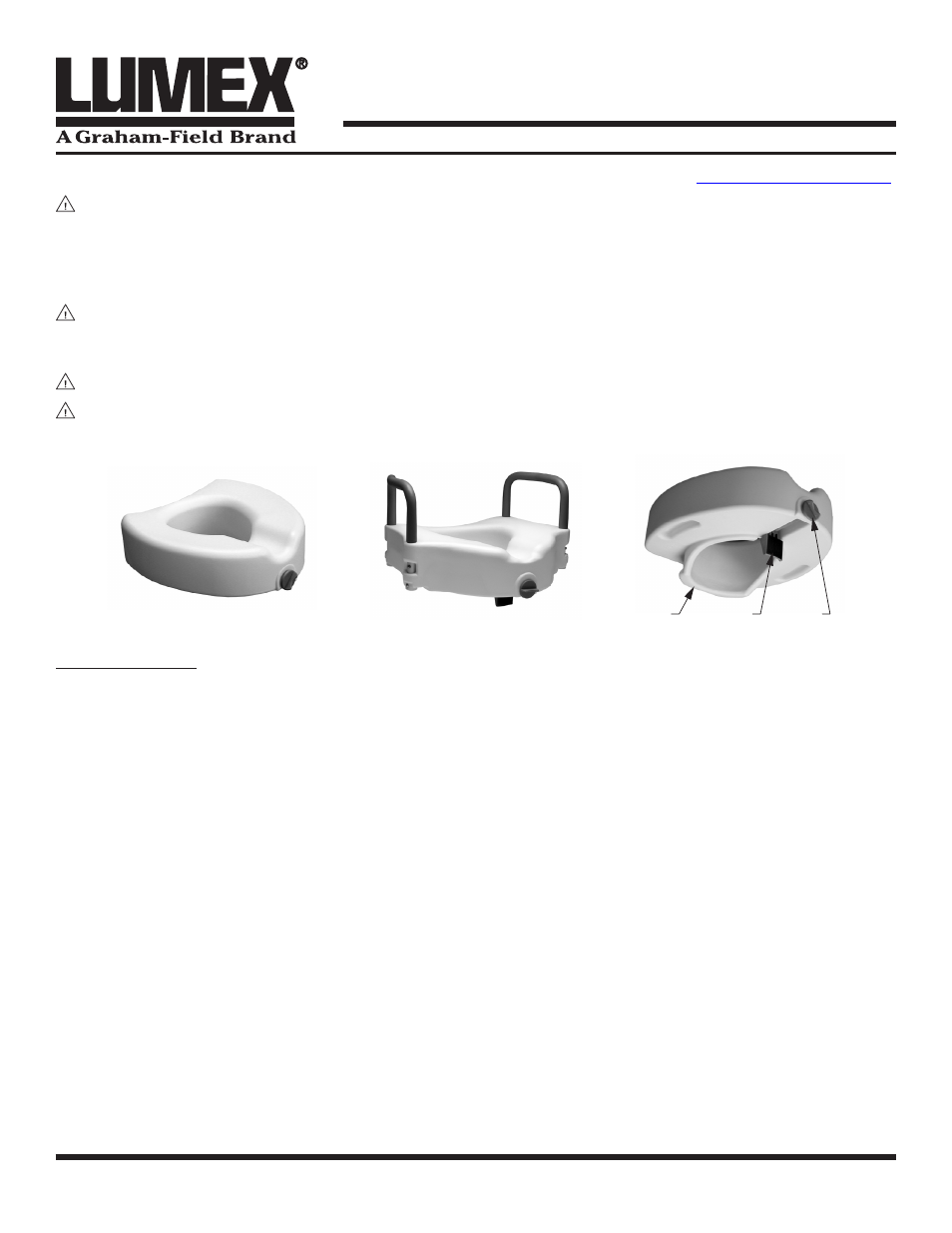

6487RA 6486A
flange paddle knob
INSTALLATION
1. Remove toilet seat from carton and protective packaging.
2. If installing Model 6486A, proceed to step 3.
If installing Model 6487RA, follow steps a-e to install arms, then proceed to step 3.
a. Remove arms from box.
b. Insert each end of arm into the raised toilet seat as shown in center picture above.
c. Push arm downward until you hear it click into place.
d. Pull arm upward slightly to secure proper installation. If loose, repeat step c.
e. Repeat steps b-d for other arm.
3. Lift lid and seat of toilet. This raised toilet seat fits most current, standard toilets.
4. Place raised toilet seat on toilet bowl rim, hooking rear flanges under rear edge of bowl. Ensure
paddle is back far enough to clear inner rim of bowl. If not, turn knob counterclockwise.
5. Ensure raised toilet seat rests flat on toilet bowl rim; straighten unit on bowl rim.
6. To tighten, rotate adjustment knob clockwise. Push unit back against rear of toilet rim while
tightening knob. When you feel resistance, turn an additional 1 / 8 turn to snug. If top rear of unit
hits the toilet seat or lid, you must remove the seat and lid for proper installation.
Note: The adjustment knob head must be flush with the front of the toilet seat for proper fit.
On smaller bowls, if paddle is moved to rear of its travel, the knob may pop out of its origi-
nal position; the knob will automatically re-engage when you re-tighten.
Note: Do not force the knob to turn. If necessary, jiggle the knob a little to start the threads.
