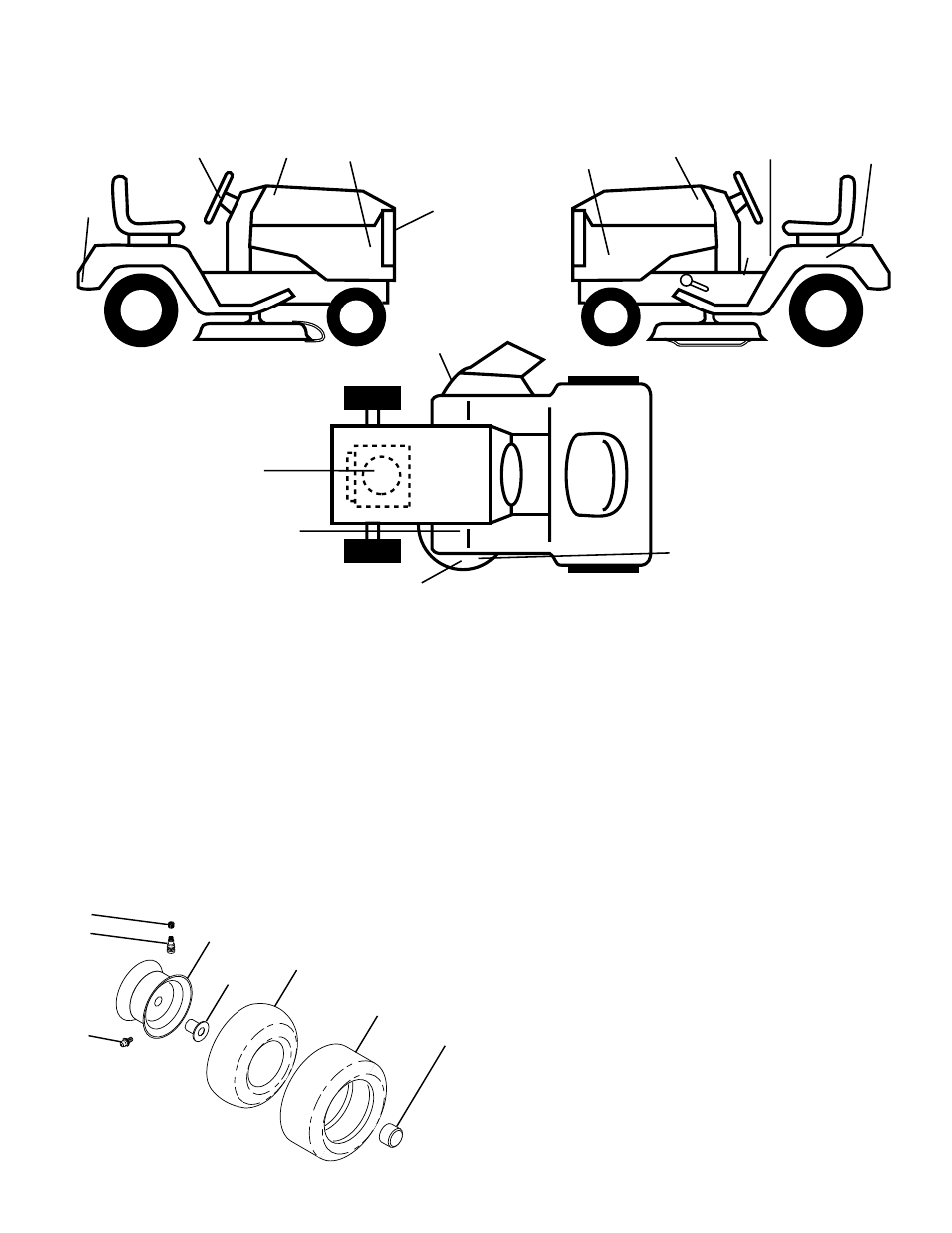

REPAIR PARTS
TRACTOR - - MODEL NUMBER WE1338A, PRODUCT NUMBER 954 56 93-56
DECALS
KEY PART
NO. NO. DESCRIPTION
1 181251 Decal, Clutch/Brake Eng/Fr
2 162392 Decal, Grille
3 184766 Decal, Engine HP
4 170563 Decal Warning
5 164424 Decal, Side Panel
6 157140 Decal, Fender Danger English
7 162398 Decal Ins Str Wh
8 162391 Decal, Deck 9 171448 Decal Fender
12 162389 Decal, Hood RH
14 162390 Decal, Hood LH
15 145005 Decal, Caution, Battery
16 157163 Decal, Oper Sdl P/L Gear Dr Eng
17 136832 Decal, V-Belt Sch.
- - 138311 Decal, Handle Lft Height Adj.
- - 184404 Manual, Owner's English
- - 184405 Manual, Owner's French
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap, Tire valve
2 65139 Stem, Valve
3 106222X Tire, Front
4 59904 Tube, Front (Service item only)
5 106732X624 Rim assembly, 6"front
6 278H Fitting, Grease (Front wheel only)
7 9040H Bearing, Flange (Front wheel
only)
8 106108X624 Rim assembly, 8" rear
9 124635X Tire, Rear
10 7152J Tube, Rear (Service item only)
11 104757X428 Cap, Hub Axle
- - 144334 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
5,8
4,10
3,9
11
7
