11
OPERATION

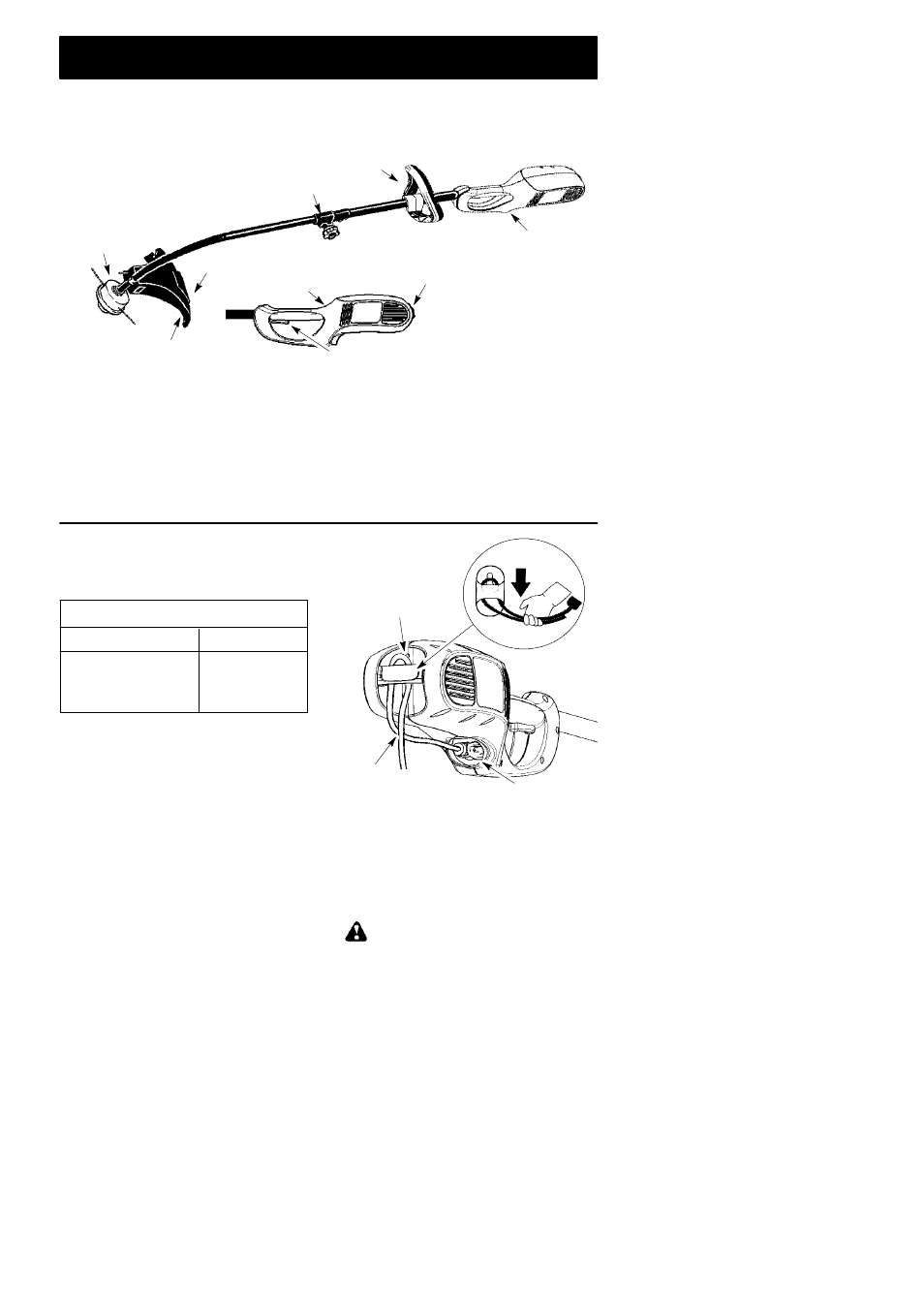

KNOW YOUR UNIT
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
UNIT. Compare the illustrations with your unit to familiarize yourself with the location of the various
controls and adjustments. Save this manual for future reference.
Cord Retainer
Assist Handle
Recessed Plug
Motor Housing
Coupler
Shield
Trimmer
Head
Trigger Switch
Line Limiter Blade
RECESSED PLUG
The RECESSED PLUG is where you at-
tach your extension cord to the unit.
TRIGGER SWITCH
The TRIGGER SWITCH is used to turn on
the unit. Squeeze the trigger switch to oper-
ate the unit. Release to stop.
LINE LIMITER BLADE
The LINE LIMITER BLADE cuts the cutting
line to the proper cutting length.
ASSIST HANDLE
The ASSIST HANDLE is used to help hold
and guide the unit.
TRIMMER HEAD
The TRIMMER HEAD holds the cutting line
and rotates during operation.
COUPLER
The COUPLER enables optional attach-
ments to be installed on the unit.
OPERATING INSTRUCTIONS
Use only a voltage supply as specified on
your unit.
SELECT AN EXTENSION CORD
Extension Cord Gauge Chart
Length of Cord Gauge
25 Ft. (7.5 m)
50 Ft. (15 m)
100 Ft. (30 m)
18 Gauge
16 Gauge
14 Gauge
Extension cords are available for this unit.
ATTACH THE EXTENSION
CORD TO YOUR UNIT
Make a loop in your extension cord and attach
the cord as shown. Ensure the plug and cord
are firmly and fully engaged.
Cord Retainer
Extension Cord
Recessed Plug on Unit
BEFORE STARTING UNIT
Be sure to read the electrical safety information
in the safety rules section of this manual before
you begin. If you do not understand the electrical
safety information do not attempt to use your
unit. Seek help from someone that does under-
stand the information or call 1-800-554-6723 for
assistance.
WARNING: Always stop unit and dis-
connect from power source before removing
or installing attachments.
