Assembly Section 3-4

WHIRLWIND 08/01
© 2004 Alamo Group Inc.

ASSEMBLY

ASSEMBL

DISCHARGE CHUTE INSTALLATION

DANGER

Keep away. To avoid serious injury or death from thrown objects or blade contact, never
operate mower without discharge chute in place.

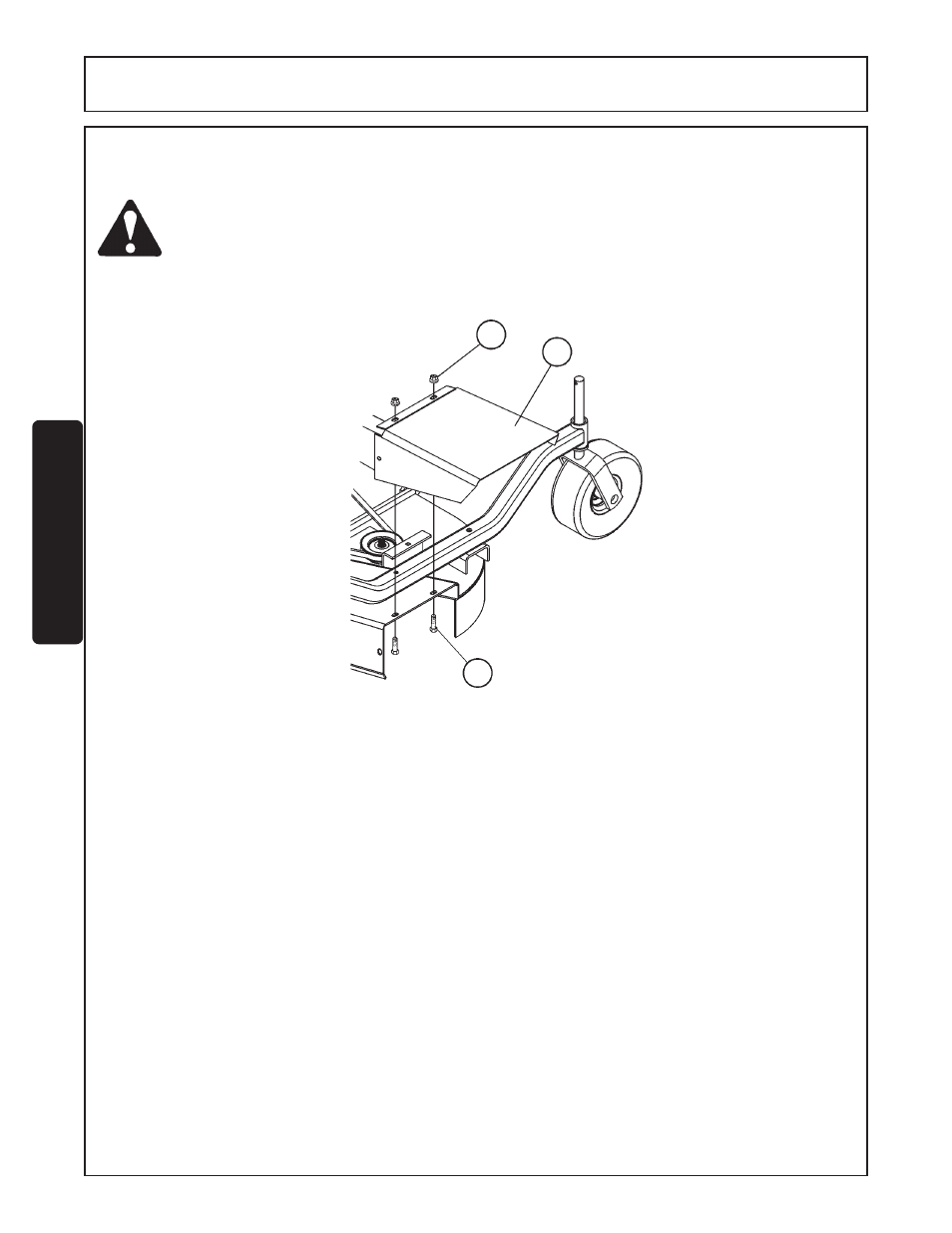

Attach discharge chute (1) to mower platform using four 3/8" x 3/4" bolts (2) and 3/4" locknuts (3) as shown.
FIGURE 5.

DRIVELINE ATTACHMENT - To Gearbox

1. Insert yoke onto splined shaft. Twist red collar on end yoke.

2. Slide yoke (with collar twisted) onto gearbox shaft.

3. Move yoke back and forth until collar clicks and locks the yoke in place.

Discharge Chute Installation

FIGURE 5
