23

SERVICE AND ADJUSTMENTS

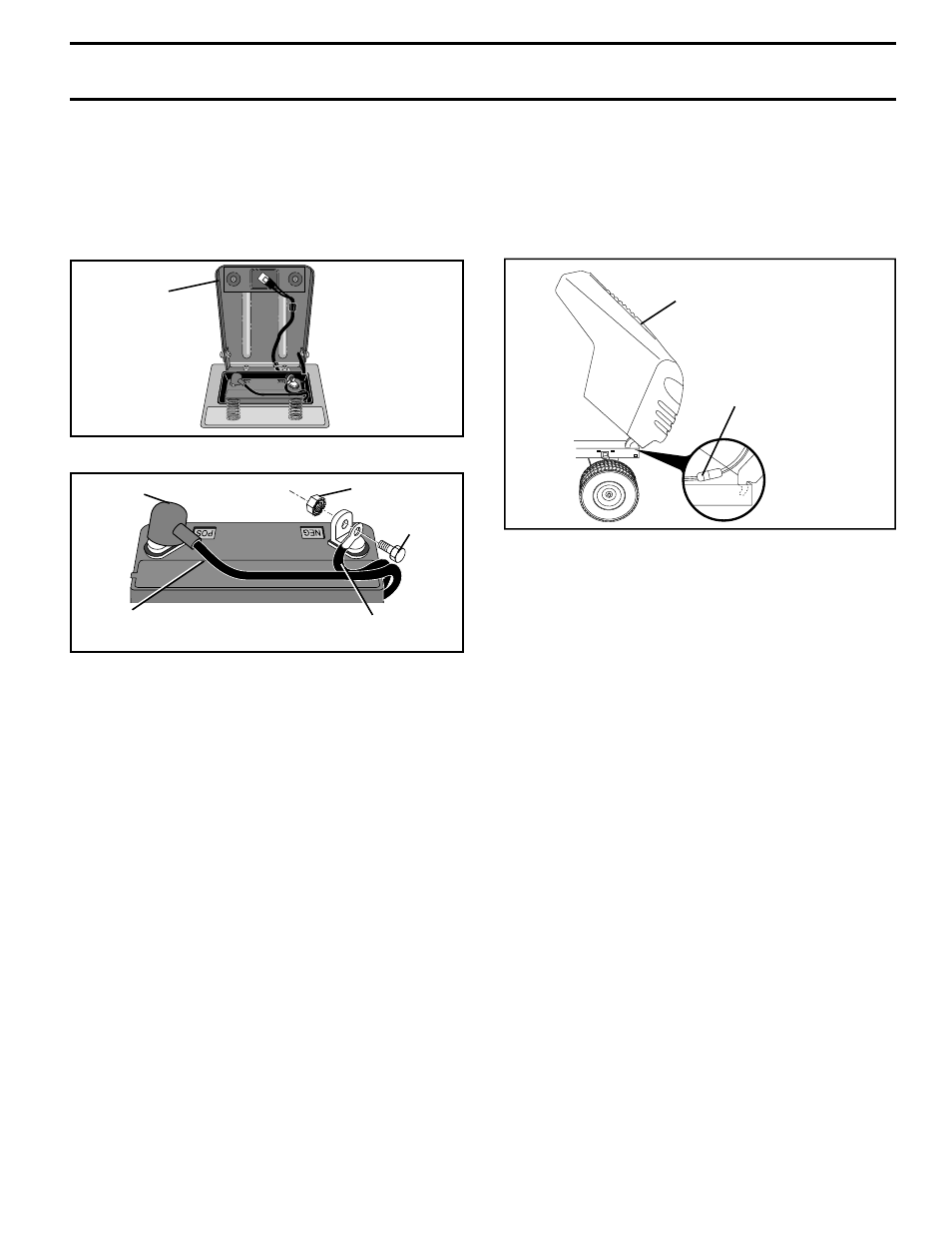

FIG. 26

TO REMOVE HOOD AND GRILL ASSEMBLY
(See Fig. 27)

• Raise hood.
• Unsnap headlight wire connector.
• Stand in front of tractor. Grasp hood at sides, tilt toward

engine and lift off of tractor.

• To replace, reverse above procedure.

TO REPLACE HEADLIGHT BULB

• Raise hood.
• Pull bulb holder out of the hole in the backside of the

grill.

• Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run
poorly, stop running, or prevent it from starting.
• Check wiring. See electrical wiring diagram in the

Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The
fuse holder is located behind the dash.

KEPS
NUT

HEX
BOLT

POSITIVE (RED)
CABLE

NEGATIVE
(BLACK) CABLE

TER MI NAL
COVER

FIG. 25

SEAT PAN

01536

HEADLIGHT
WIRE
CONNECTOR

HOOD

FIG. 27

ENGINE

TO AD JUST THROTTLE CON TROL CABLE

The throttle control has been preset at the factory and
ad just ment should not be necessary. Check adjustment
as described below before loosening cable. If adjustment
is necessary, see engine manual.

TO ADJUST CARBURETOR

The car bu re tor has been preset at the factory and ad just ment
should not be nec es sary. However, minor ad just ment may be
required to com pen sate for differences in fuel, tem per a ture,
altitude or load. If the carburetor does need adjustment,
see engine manual.

• Install new battery with terminals in same position as

old battery.

• First connect RED battery cable to positive (+) terminal

with hex bolt and keps nut as shown. Tighten securely.
Slide terminal cover over terminal.

• Connect BLACK grounding cable to negative (-) ter-

mi nal with remaining hex bolt and keps nut. Tighten
se cure ly.
