Page 22
GSM-01 081310

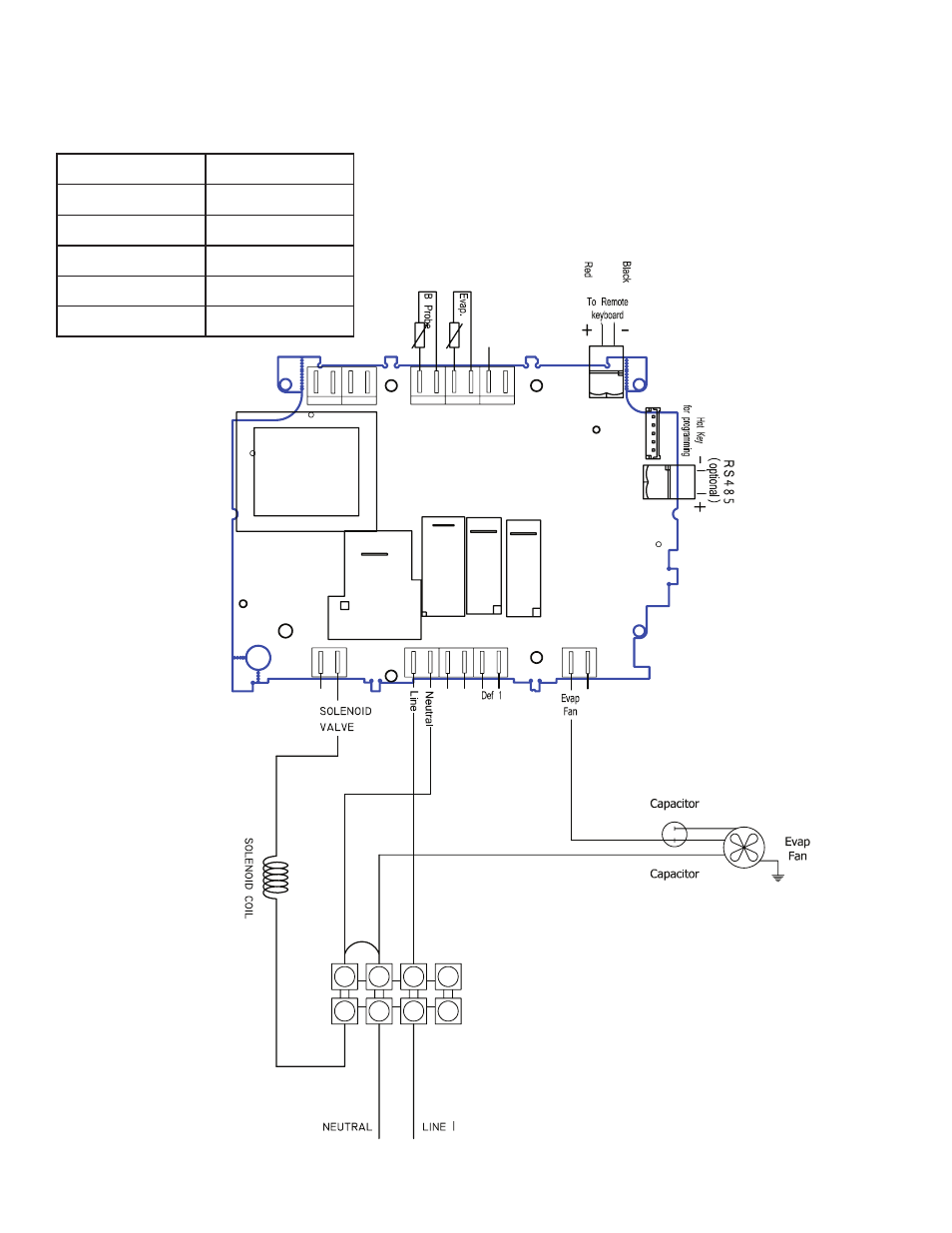

WIRING DIAGRAMS
Platinum Split 4000 & 8000 Evaporator Terminal Board
Serves
Color
Line 1
Black
Neutral
White
Solenoid Valve
Blue
Evap B
Black
Remote to Keypad
- Black + Red
