24

ENGINE

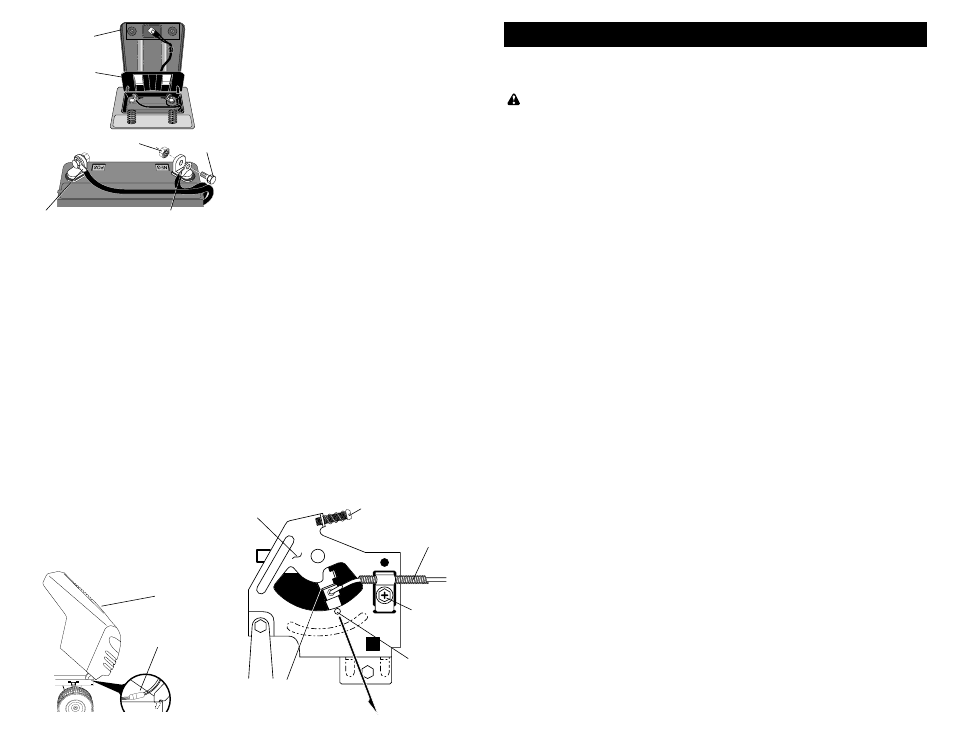

TO ADJUST THROTTLE CONTROL
CABLE
The throttle control has been preset at
the factory and adjustment should not be
necessary. Check adjustment as de-
scribed below before loosening cable. If
adjustment is necessary, proceed as
follows:
• With engine not running, move throttle

control lever from slow to choke
position. Slowly move lever from
choke to fast position.

• Check that hole in throttle lever and

hole in plate line up. If holes “A” are
not aligned, loosen clamp screw and
move throttle cable until holes are
aligned. Tighten clamp screw se-
curely.

TO ADJUST CARBURETOR
The carburetor has been preset at the
factory and adjustment should not be
necessary. However, minor adjustment
may be required to compensate for
differences in fuel, temperature, altitude
or load. If the carburetor does need
adjustment, see engine manual.
High speed stop is factory adjusted. Do
not adjust - damage may result.
IMPORTANT: Never tamper with the
engine governor, which is factory set for
proper engine speed. Overspeeding the
engine above the factory high speed
setting can be dangerous. If you think the
engine-governed high speed needs
adjusting, contact your nearest autho-
rized service center/department, which
has proper equipment and experience to
make any necessary adjustments.

Fast

Idle Speed
Screw

Throttle Lever

Plate

Throttle Cable

Clamp
Screw

Hole “A”

TO REPLACE HEADLIGHT BULB

• Raise hood.
• Pull bulb holder out of the hole in the

backside of the grill.

• Replace bulb in holder and push bulb

holder securely back into the hole in
the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause
your tractor to run poorly, stop running, or
prevent it from starting.
• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 15 amp automotive-type
plug-in fuse. The fuse holder is located
behind the dash.

Seat Pan

Battery
Box Door

Keps Nut

Hex Bolt

Positive
(Red) Cable

Negative
(Black) Cable

TO REMOVE HOOD AND GRILL
ASSEMBLY

• Raise hood.
• Unsnap headlight wire connector.
• Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of
tractor.

• To replace, reverse above procedure.

Hood

Headlight Wire
Connector

25

Immediately prepare your tractor for
storage at the end of the season or if the
tractor will not be used for 30 days or
more.
CAUTION: Never store the tractor
with gasoline in the tank inside a
building where fumes may reach an
open flame or spark. Allow the engine to
cool before storing in any enclosure.

TRACTOR

Remove mower from tractor for winter
storage. When mower is to be stored for
a period of time, clean it thoroughly,
remove all dirt, grease, leaves, etc. Store
in a clean, dry area.
• Clean entire tractor (See “CLEANING”

in the Maintenance section of this
manual).

• Inspect and replace belts, if necessary

(See belt replacement instructions in
the Service and Adjustments section of
this manual).

• Lubricate as shown in the Mainte-

nance section of this manual.

• Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving
parts for damage, breakage and wear.
Replace if necessary.

• Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.
• After a period of time in storage,

battery may require recharging.

• To help prevent corrosion and power

leakage during long periods of
storage, battery cables should be
disconnected and battery cleaned
thoroughly (see “TO CLEAN BATTERY
AND TERMINALS” in the Maintenance
section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they
cannot come in contact with battery
terminals.

• If battery is removed from tractor for

storage, do not store battery directly on
concrete or damp surfaces.

ENGINE

FUEL SYSTEM
IMPORTANT
: It is important to prevent
gum deposits from forming in essential
fuel system parts such as carburetor, fuel
filter, fuel hose, or tank during storage.
Also, experience indicates that alcohol
blended fuels 9called gasohol or using

STORAGE

ethanol or methanol) can attract moisture
which leads to separation and formation
of acids during storage. Acidic gas can
damage the fuel system of an engine
while in storage.
• Drain the fuel tank.
• Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor

cleaner products in the fuel tank or
permanent damage may occur.

• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of
fuel gum deposits during storage. Add
stabilizer to gasoline in fuel tank or
storage container. Always follow the mix
ratio found on stabilizer container. Run
engine at least 10 minutes after adding
stabilizer to allow the stabilizer to reach
the carburetor. Do not drain the gas tank
and carburetor if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace
with clean engine oil. (See “ENGINE” in
the Maintenance section of this manual).
CYLINDER(S)
• Remove spark plug(s).
• Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

• Turn ignition key to “START” position

for a few seconds to distribute oil.

• Replace with new spark plug(s).
OTHER
• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your
gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from
dust and dirt.

• Cover your tractor with a suitable

protective cover that does not retain
moisture. Do not use plastic. Plastic
cannot breathe which allows conden-
sation to form and will cause your
tractor to rust.

IMPORTANT: Never cover tractor while
engine and exhaust areas are still
warm.
