CLEANING INSTRUCTIONS (continued)
12

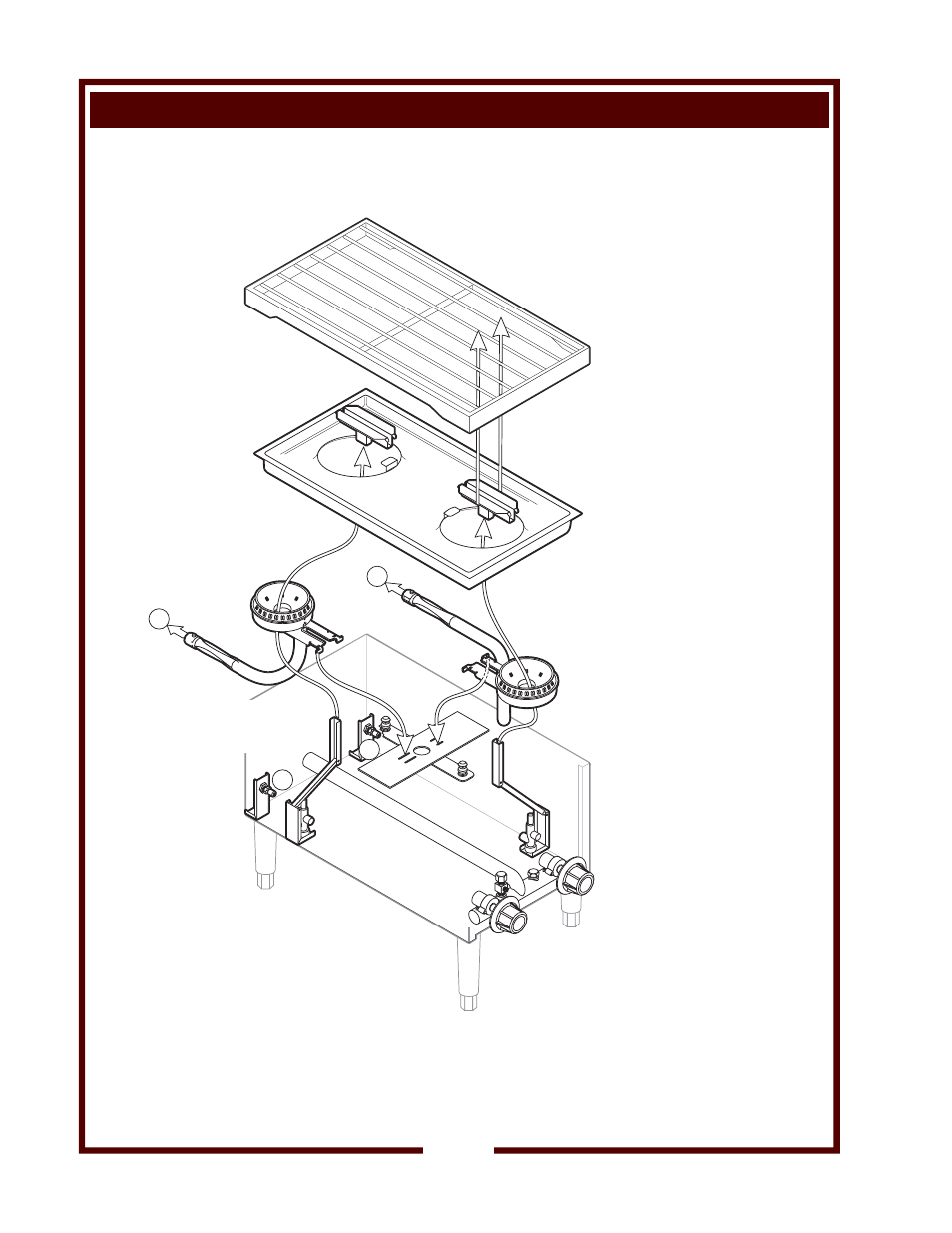

Fig. 7 Hotplate Assembly
FRONT BURNER
Slides over RIGHT
nozzle; hooks into
FRONT slots on
pilot support
REAR BURNER
Slides over LEFT
nozzle; hooks into
REAR slots on pilot
support
GRATE ASSEMBLY
Sets in place above
burners
DRIP TRAY
Drops in place exposing
tops of burners
1.
2.
3.
4.
Front actuator arm
threads through
center of burner
Rear actuator arm
threads through
center of burner
Actuator heads
slide onto ends of
actuator arms
R
R
F
F
Actuator heads wrap
around center bar
of grate
