Page 4-19

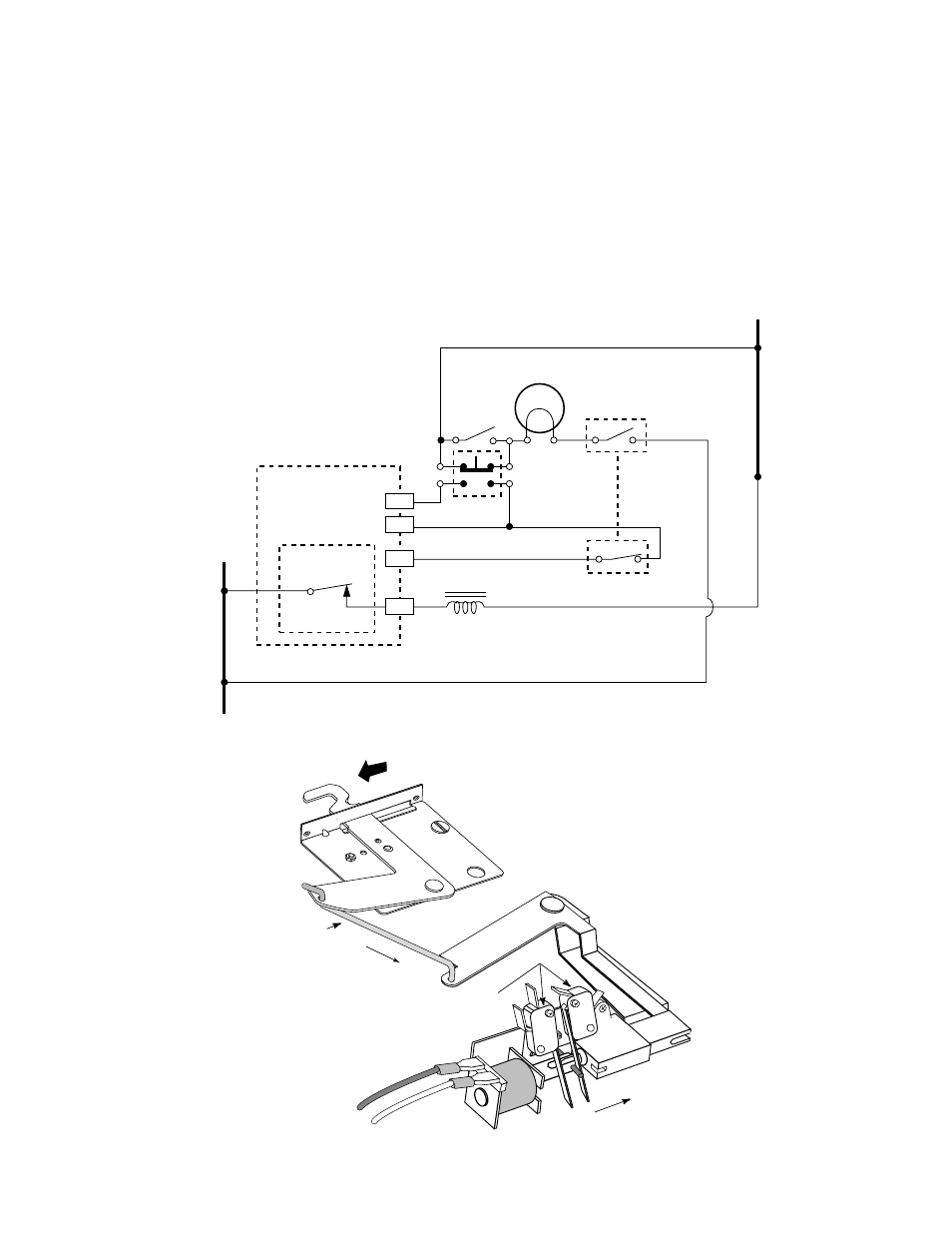

Figure 4-30
When the solenoid plunger extends, two things happen (see Figure 4-30). As the latch solenoid
locks the door, it also activates the two door latch switches. Both door switches are normally-open
switches. As the solenoid moves to lock the door, the switches toggle, and:
a) Open the oven light circuit so that the light cannot be operated during the Clean function.
b) Provide a logic circuit for the electronic board to indicate that the door is locked and that
the Clean cycle can continue.
L1
N
BK
W
OVEN CONTROL
LATCH SOLENOID
RELAY LATCH
SOLENOID
P4
P1-3
P1-5
BU
GY
Y Y
W W
W BK R
DOOR LATCH
SWITCH
DOOR LATCH
SWITCH
DOOR
LIGHT SW.
OVEN LIGHT
MANUAL
OVEN LIGHT
SWITCH
N.O.
N.O.
P1-1
1 SEC PULSE
Solenoid Plunger
Extended
Actuator Rod
Door Latch
Switches
DOOR LOCKED
