United States Stove Company 6039HF - Manual (Page 23)

USSC 23
1
3
2
4
5
6
7
9
10
8
11
2
3
1
6
4
5
Key Part No. Descritption Qty.
7 83278 #10 Flat Washer 4
8 25465 Retainer, Bottom Glass 1
9 25464 Retainer, Top Glass 1
10 83202 Machine Screw 4
11 891135 Handle, Spring (Parts Bag) 1
Key Part No. Descritption Qty.
1 25491 Feed Door 1
2 25492 Handle, Door 1
3 83506 Roll Pin, 3/8 x 1-1/4 1
4 88112 Gasket, 1/2” Sq. Rope 5 ft
5 88087 Gasket, Glass (1 x 3/16) 4 ft
6 891131 Glass Ceramic 1
Parts List

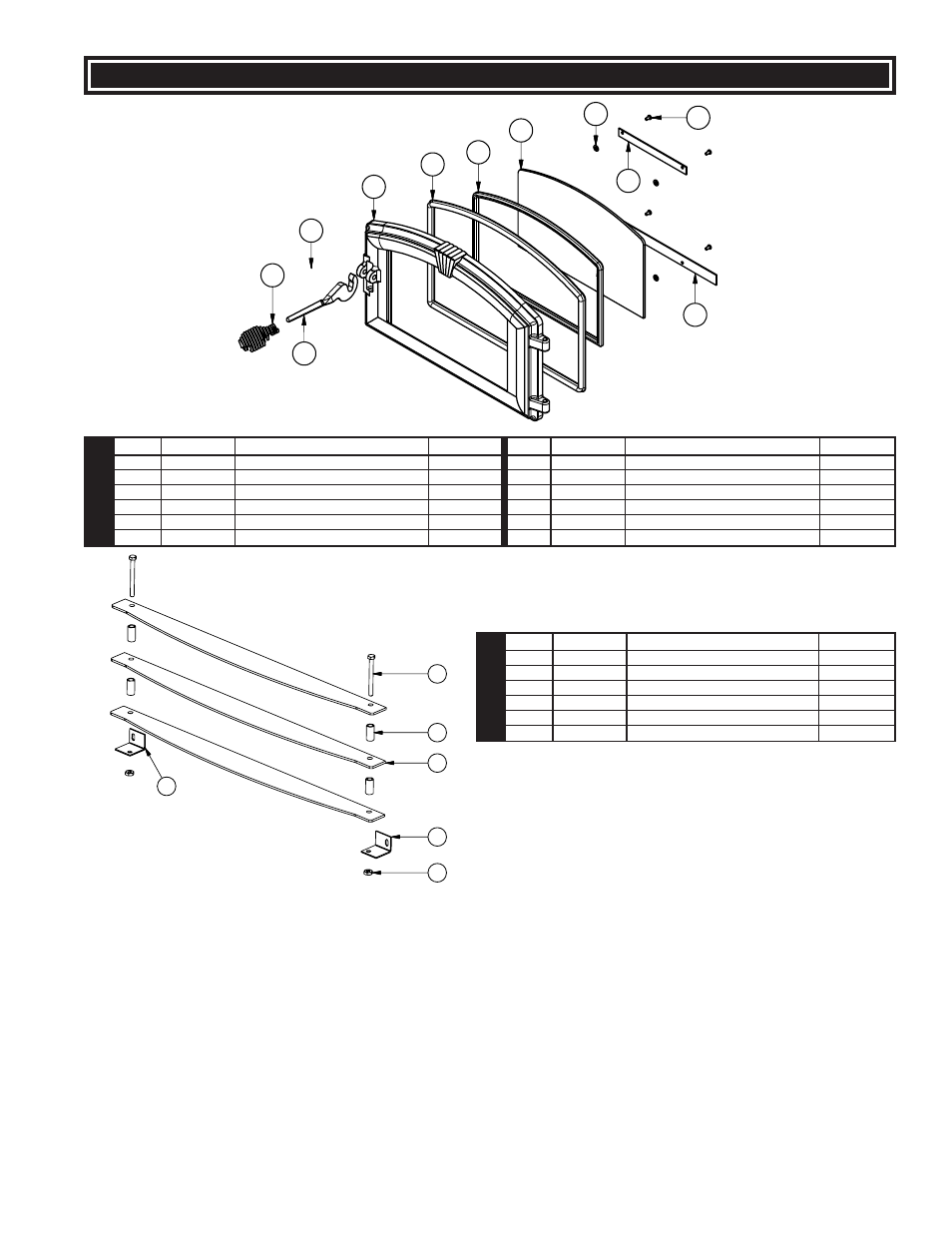

Parts Diagrams and Parts Lists
Key Part No. Descritption Qty.
1 891334 Louver 3
2 83531 Screw, 10-24UNC x 2” long 2
3 83532 Spacer 4
4 83295 Nut, 10-24UNC 2
5 25444 Bracket, Louver 1
6 25444 Bracket, Louver 1
Parts List
Louver Assembly (Part No.: 69540)
