Your furnace requires the following
items to be assembled or installed by
the service person:
Feed Door Handle
Feed Door Latch
Smoke Curtain
Blowers and Blower Controls
Electrical Connections
Remove all parts from inside the
furnace and inspect for damage,
including the firebrick as some
breakage could occur during ship-
ment.

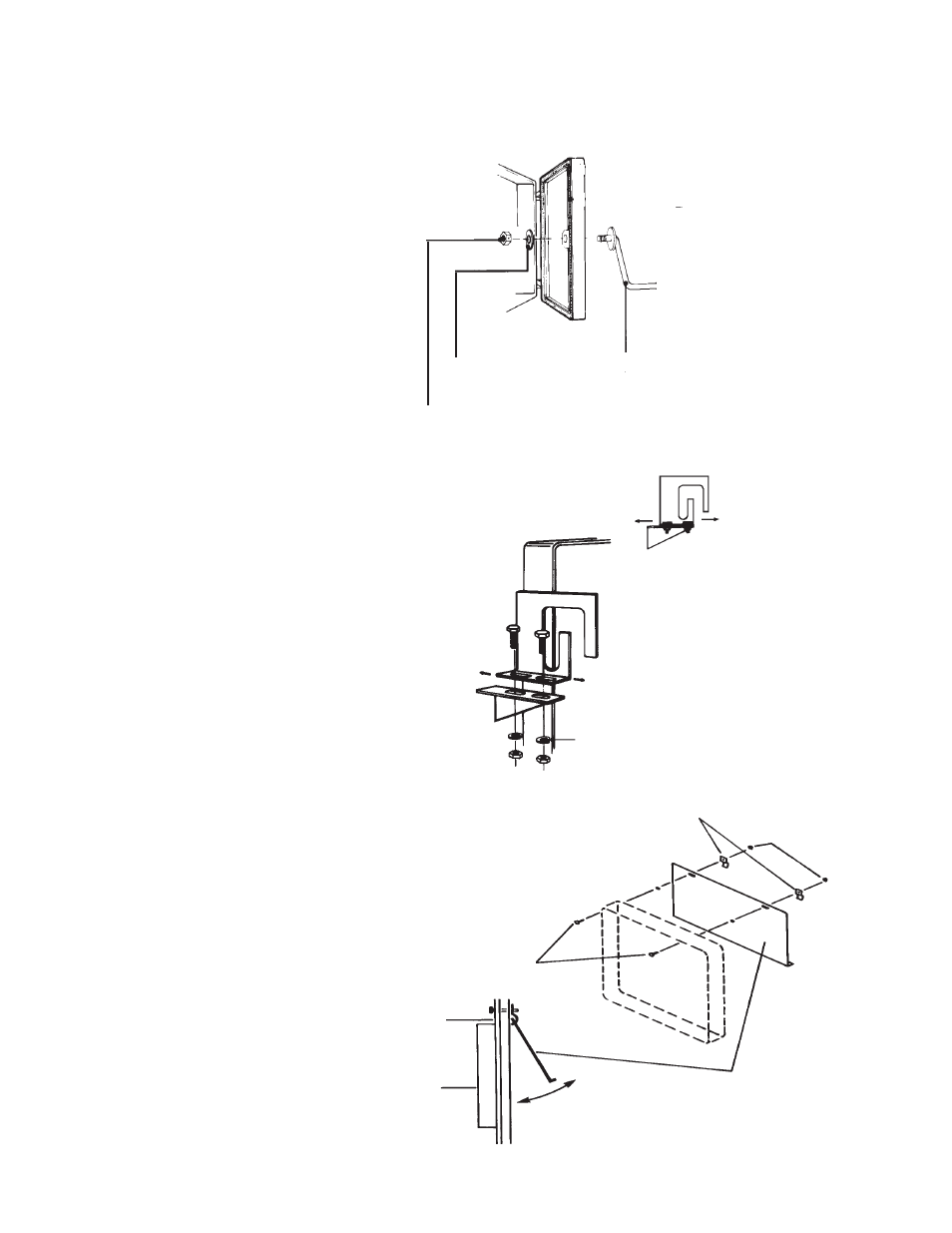

Assemble the feed door handle
as shown in Figure 8. Install the
latch as illustrated in Figure 9.
Attach the smoke curtain to the
firebox as shown in Figure 10.
Install Honeywell thermostat on
rear of furnace cabinet as shown
in Figure 11.
Remove blowers from cartons.
Remove junction box cover. At-
tach clip nuts as per Figure 11.
Install blowers and gaskets with
1/4"-20 x 3/4" bolts as shown.
Wire right side blower first per
wiring diagram (Figure 12) and
replace cover on junction box on
blower.
Wire left blower same as above
and replace cover.
Complete all wiring in junction box
by referral to the wiring diagram
and Figure 11 - Blower and Com-
ponent Assembly. Replace cover
on junction box.
Check operation of shaker grates
with grate handle before operat-
ing furnace. 1.
2.
3.
4.
5.
6.
7.
8.
9.
Assembly of Furnace
10
WASHER
LOCKNUT
FEED DOOR HANDLE
FIG. 8
FIG. 9
FIG. 10
SMOKE CURTAIN
CARRIAGE BOLT
NUT
SMOKE DOOR CLIP
