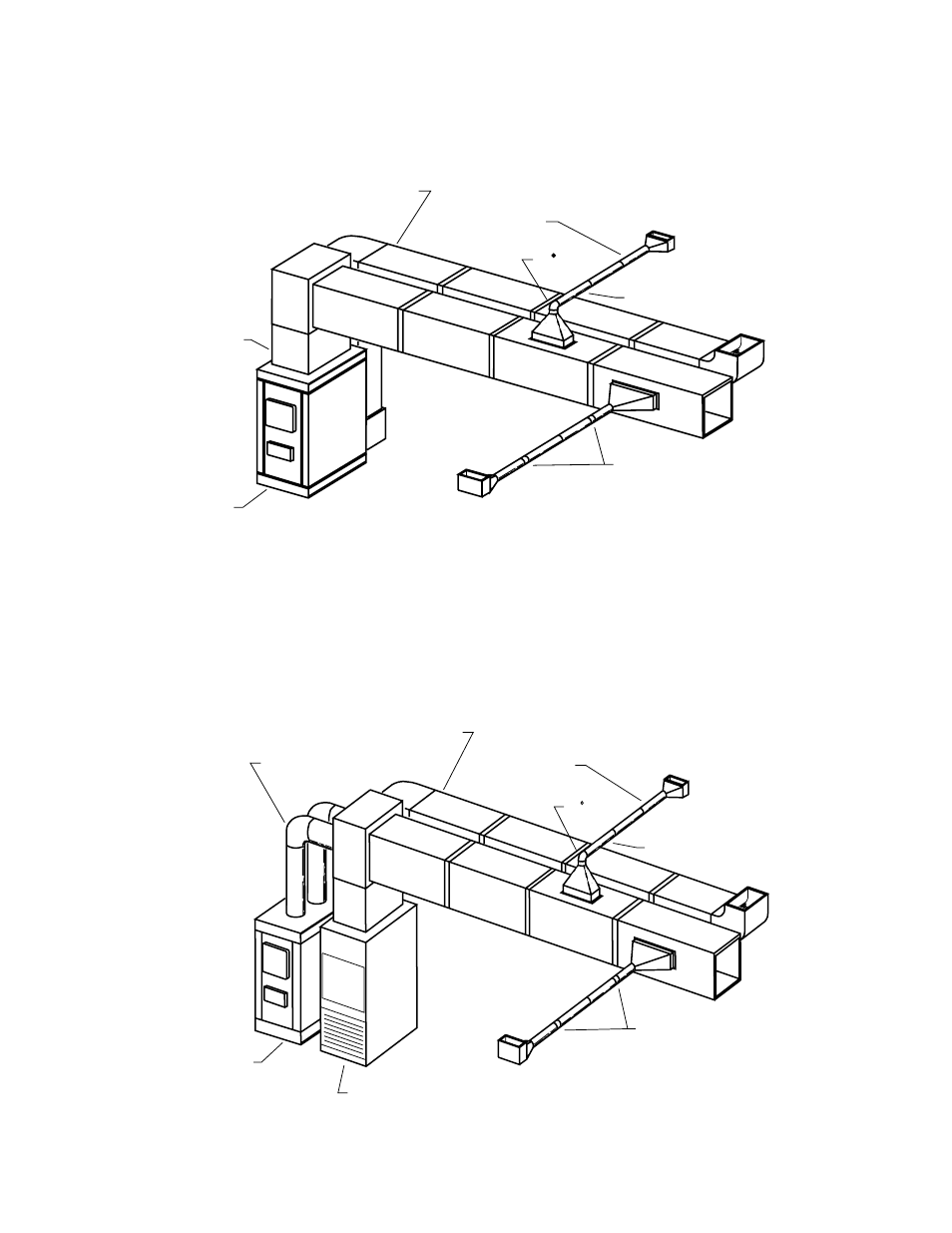

COLD AIR DUCT

6" PIPE

DAMPER

OPTIONAL
11 RPT

90 ELBOW

FURNACE

PIPE
CONNECTOR

Central Installation

Fig. 11

Add-On Installation

COLD AIR DUCT

6" PIPE

DAMPER

90 ELBOW

FURNACE

PIPE
CONNECTOR

EXISTING GAS/OIL/ELECTRIC FURNACE

8" PIPE

FIG. 11-B
