Alternative parallel installation wiring diagram – United States Stove Company 1200Q User Manual
Page 16
16
•DRAWINGS FOR ILLUSTRATION PURPOSES ONLY•

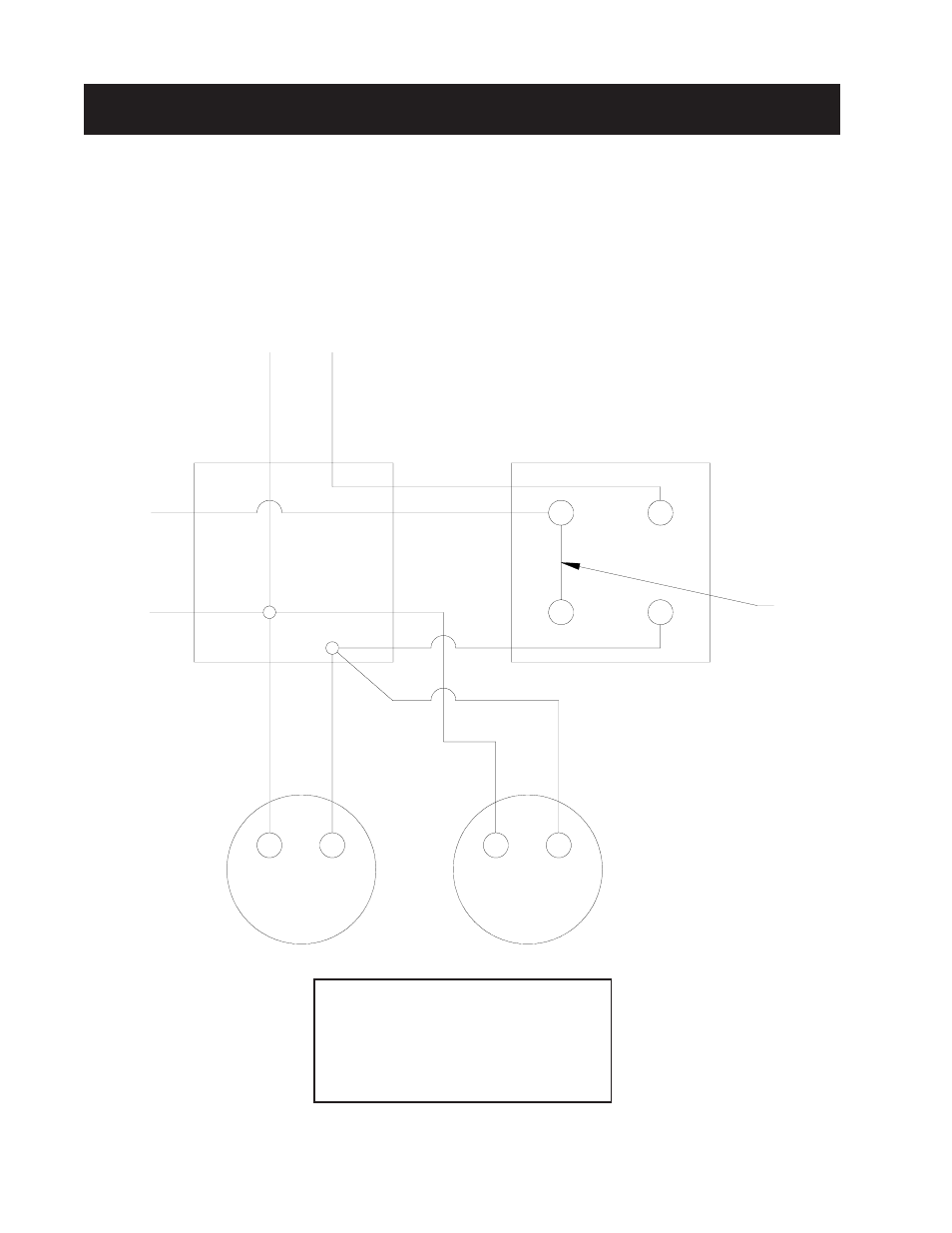

ALTERNATIVE PARALLEL INSTALLATION WIRING DIAGRAM
-
FIG. 15
TO GAS/OIL/ELECTRIC
TRANSFORMER
HOTBLAST
COMBINATION CONTROL
LIMIT
FAN
JUMPER IN
H
H
POWER
SUPPLY
GAS/OIL/ELECTRIC
POWER SUPPLY
JUNCTION BOX
CENTRAL
FURNACE
BLOWER
MOTOR
WOOD
FURNACE
BLOWER
MOTOR
CAUTION!
DO NOT CONNECT
PLENUM FAN CONTROL
SWITCH ACROSS FURNACE
LIMIT CONTROL.
