United States Stove Company 2941 - Manual (Page 2)

2 19
F36 BLOWER KIT
An Optional Blower kit is available for the 2941 Wonderwood
automatic wood burning circulator heater. If this kit is not available
where you have purchased this Wonderwood heater, you can
purchase the F36 Blower Kit directly from the factory. To order
contact the United States Stove Company at the address and
telephone number given on the back page.
TOOLS AND MATERIAL NEEDED
TOOLS
Pencil
6 Foot Folding rule or tape
Tin Snips
Drill, hand or electric
Drill bit, 1/8" dia.
(for sheet metal screws)
Gloves
Screwdriver (blade-type)
5/16" Nut Driver or
5/16" Socket w/Ratchet
MATERIALS
Chimney Connection- 6" Dia. Black
Steel (24 Ga. minimum): Straight or
corrugated elbow (as required)*
1/2" Sheet Metal Screws
6" Inside Diameter Underwriters
Laboratories (UL) listed Residential
Type and Building Heating Appliance
Chimney, Type "HT", or 6" existing
Masonry Chimney with flue liner.
Floor Protector Material: 3' x 4'-6" as
specified on page 4.
Furnace Cement (Manufacturer
recommends: Rutland Code 78 or
Equivalent)
* Avoid adjustable elbows, they leak!

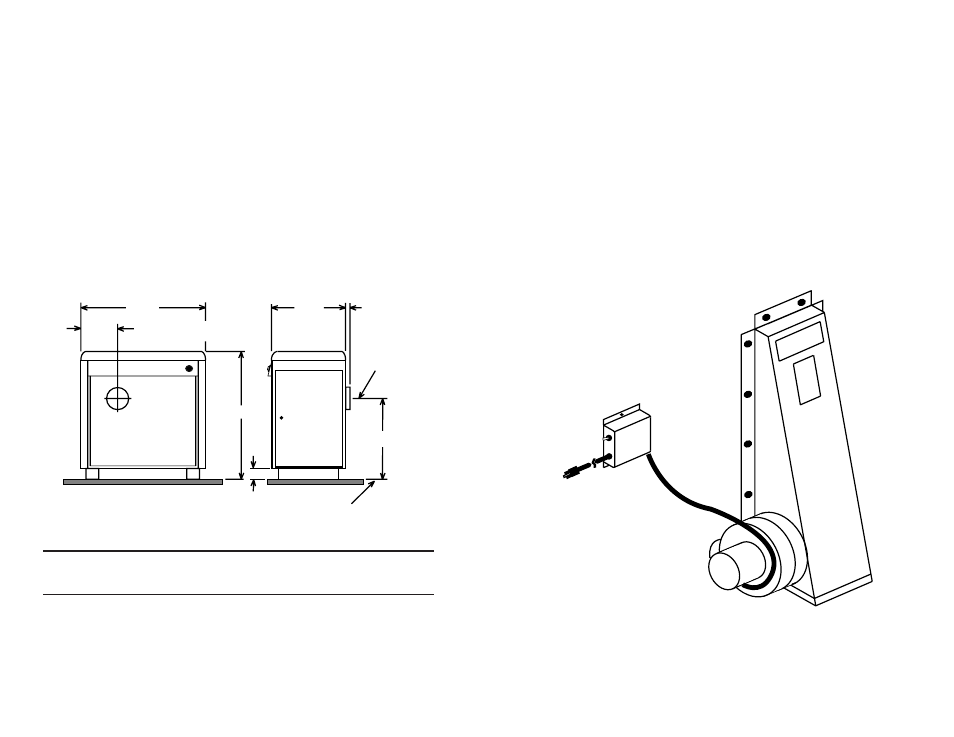

CIRCULATOR DIMENSIONS
Fig. 1
32 1/4
12 1/2
33 1/2
4 1/8
4 1/4 19 1/4
CENTER LINE OF 6"
CHIMNEY CONNECTOR
24
TOP OF FLOOR PROTECTOR
CENTER LINE
OF 6"
CHIMNEY
CONNECTOR
WONDERWOOD
RULES FOR SAFE INSTALLATION AND OPERATION
Read these rules and the instructions carefully.
SAFETY NOTICE: If this heater is not properly installed, a house fire may result. For
your safety, follow the installation directions. Contact local building or fire officials
about restrictions and installation inspection requirements in your area.
1. Check local codes. The installation must
comply with their rulings. Do not install this
heater in a mobile home or trailer.
2. Always connect this heater to a chimney or
vent to the outside. Never vent to another
room or inside a building.
3. Do not connect a WOOD burning heater to
an aluminum Type B gas vent. This is not
safe and is prohibited by all codes. This
heater requires connection to approved
chimneys: Either a factory built 6" UL 103HT
or a lined and approved and recently in
spected and cleaned masonry chimney
with a 6" flue, preferably round. A larger
masonry flue may be used, so long as the
flue-section diameter is not greater than 50
sq. in.
The chimney portion (whether factory-built
