18 USSC
13
5
11
10
1
10
12
10
6
12
7
8
2
4
3
9
9
9

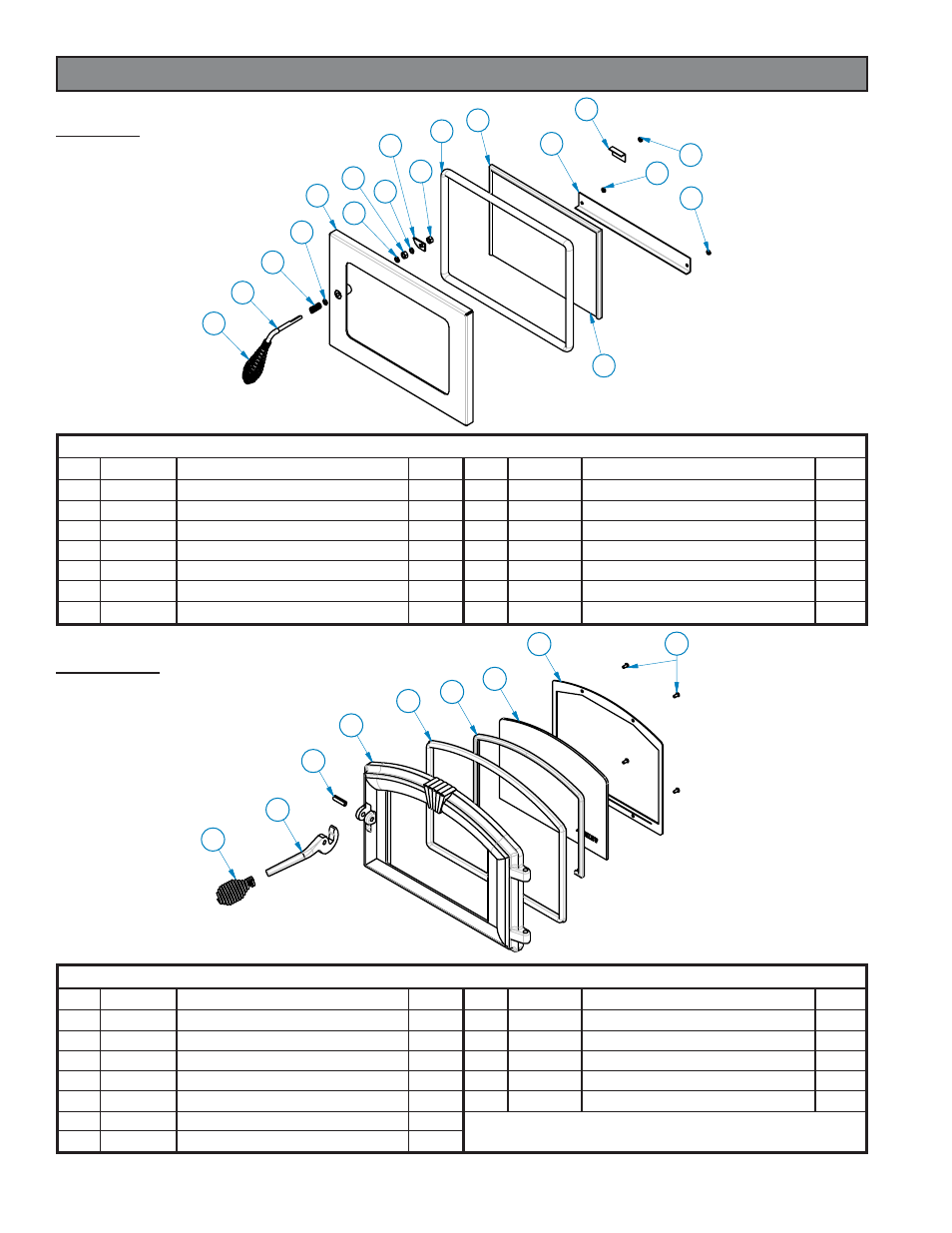

Parts Diagram/List models 5500 & 5500XL
6
3
4
1
5
7
2
8 9
Item Part No. Title Qty.
1 25490 Door Weldment 1
2 891166 Ceramic Glass 1
3 891185 Glass Retainer, Top 1
4 891186 Glass Retainer, Bottom 1
5 891160 Handle, Door 1
6 891168 Latch, Door 1
7 88082 3/4” Rope Gasket 1
PARTS LIST
Item Part No. Title Qty.
8 88087 Glass Gasket 1
9 83297 8-32 Hex Nut 3
10 83045 Washer, 5/16 ID x 1/2 OD x 3/64 TK 3
11 83903 Spring 1
12 83206 5/16 x 18 Hex Nut 2
13 891167 Spring Handle 1
Item Part No. Title Qty.
1 25266 Feed Door 1
2 891067 Door Glass w/ Ashley Logo 1
3 25452 Handle, Door 1
4 83506 3/8 x 1 1/4 Roll Pin 1
5 88066 5/8” Rope Gasket 1
6 89574 Handle, Spring Brass 1
7 88087 Glass Gasket (1 x 1 3/16) 1
PARTS LIST
Item Part No. Title Qty.
8 25393 Retainer, Glass 1
9 83202 Machine Screw 4
N/S 25080MB Door Latch 1
N/S 83508 5/16-18 x 1-3/4 Bolt 1
N/S 83338 5/16-18 Lock-Nut 1
N/S - Not Shown
Model 5500
Model 5500XL
