Keep the chimney connection as short as possible.
The heater must have its own chimney flue. Do not
connect any other appliance to the same flue. If there
is no chimney where you wish to place the heater, you
can use a UL Listed Type 103 HT, Solid Fuel, Factory
Built Chimney. (Figure 7)

Place the heater on solid masonry or solid concrete.
When the heater is used on a combustible floor, use a
non-combustible floor protector having a thermal con
ductivity of K=0.45 BTU in./ft. 2 hr.deg. F. with 28
gauge sheet metal or a UL Listed Floor Protector.

Have the floor protector with the specified dimensions.
(See Figure 2.)

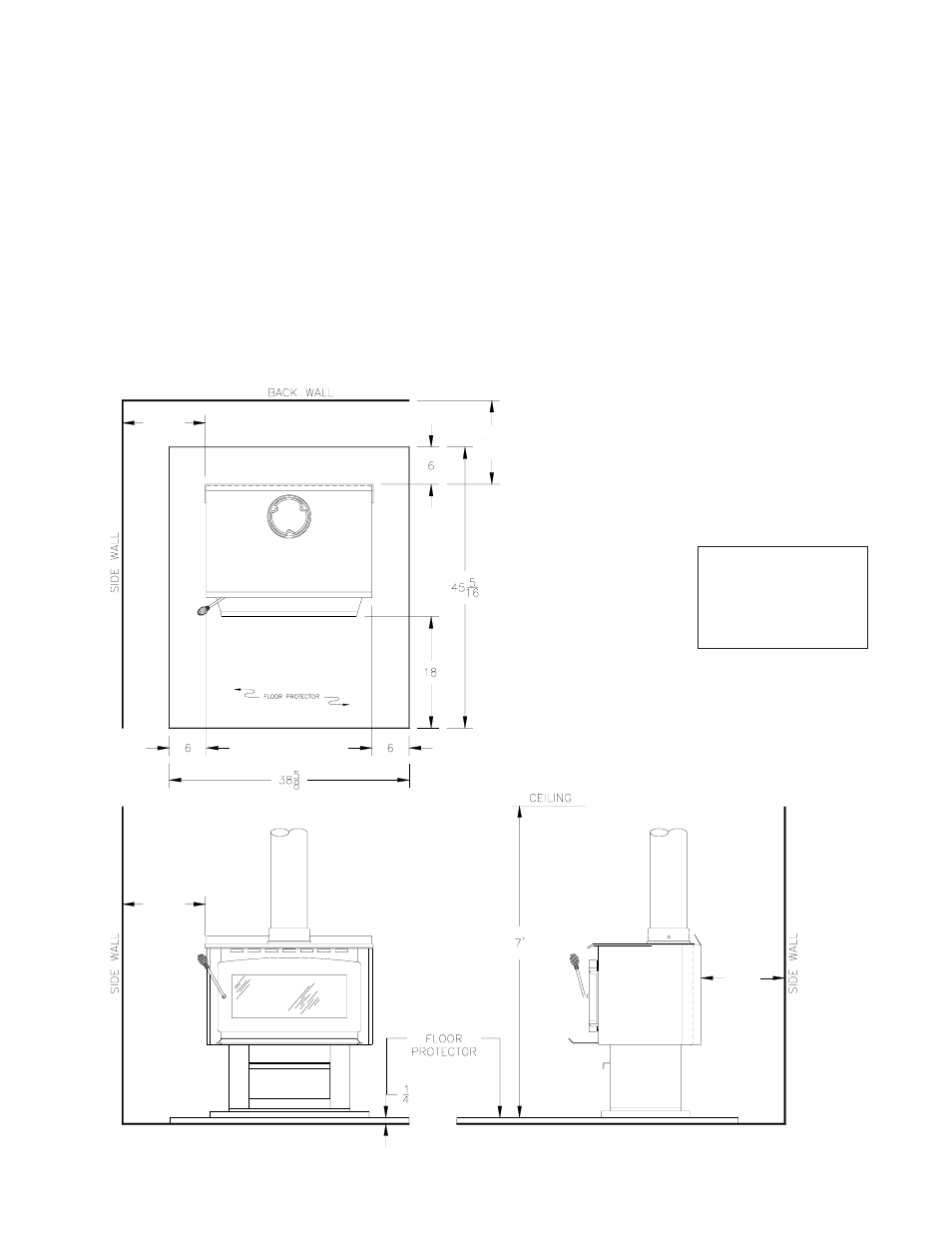

Check Figures 2, 3, & 4. You should have at least the
clearances shown from the heater and the connector
pipe to combustible surfaces. If you have a solid brick
or stone wall behind your heater, you can place the
heater as close as you wish to the wall. If the wall is only
faced with brick or stone, treat it as a combustible wall.

LOCA

LOCATING

TING

TING THE R

THE R

THE ROOM HEA

OOM HEA

OOM HEATER

TER

AS A LOCATION IS SELECTED, KEEP THE FOLLOWING IN MIND:

MINIMUM CLEARANCE

MINIMUM CLEARANCE T

TO COMB

O COMB

O COMBUSTIBLE

USTIBLE

USTIBLE W

WALLS

ALLS

FRONT VIEW

Fig. 3

SIDE VIEW

Fig. 4

TOP VIEW

Fig. 2

CAUTION

KEEP FURNISHINGS

AND OTHER COM-

BUSTIBLE MATERIALS

AWAY FROM THE

HEATER

MINIMUM CLEARANCES FOR CORNER

CORNER

INSTALLATION

INSTALLATION IS 18 INCHES

18 INCHES

18 INCHES FROM THE

CORNERS OF THE HEATER TO THE NEAREST
WALL
