United States Stove Company 2020L - Manual (Page 21)

KEY DESCRIPTION PART NO. QTY.
1 BLOWER 80432 1
2 THERMODISC 80381 1
3 BLOWER BRACKET 24995 2
4 RHEOSTAT BRACKET 25002B 1
5 BLOWER RHEOSTAT 80090 1
- NUT & KNOB - -
6 POWER SUPPLY CORD 80232 1
** #10A x 1/2 SCREWS 83172 6
** STRAIN RELIEF BUSHING 80109 1

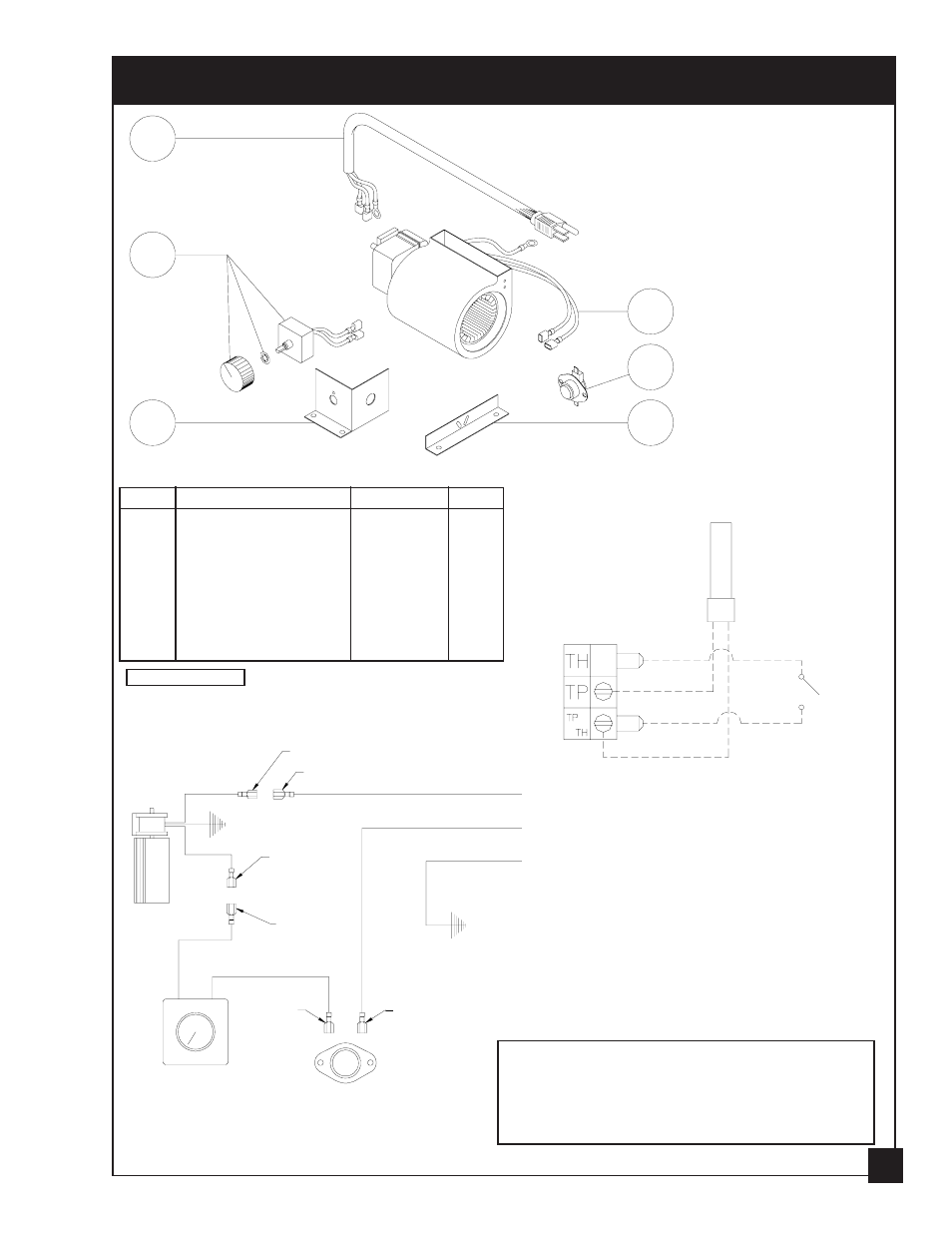

2020 BLOWER KIT,
and WIRING DIAGRAMS
21
THERMOPILE
CONTROL
WIRING
TERMINALS
ROCKER
SWITCH
GENERATOR
ASSEMBLY
WIRING DIAGRAM
** - NOT SHOWN
6
4
5
3
2
1
CAUTION
: Label all wires prior to dis-
connection when servicing controls. Wir-
ing errors can cause improper and danger-
ous operation.
BLOWER
BLACK
(HOT)
WHITE
(NEUTRAL)
GREEN
(GROUND)
RHEOSTAT
THERMODISC
1/4" MALE INS.
1/4" FEMALE INS.
1/4" MALE INS.
WIRING DIAGRAM
FOR OPTIONAL
BLOWER
1/4" FEMALE INS.
1/4" FEMALE
INS.
1/4" FEMALE INS.
(GROUND)
CONNECT TO APPLIANCE
(GROUND)
CONNECT TO APPLIANCE
