Network Interface
Media
DSL Ports
Connector Type
Line Rate
Line Code
System Timing
Spectrum
Data Interface
Ethernet
Connector
Protocols
RFC1490
Frame Relay
VLAN Support
Monitoring and Management
RMON-2
SNMP Agent
In-band
Telnet
Front Panel
Power Requirements
AC
DC
Consumption
Regulatory
Diagnostics
Loopback Tests
Network Alarms
Front Panel LEDs
Physical
Dimensions
Weight
Range and Reach
Technical Specifications
Unshielded twisted pair (UTP CAT 3)
3
RJ-11 socket
160 to 2320 Kbps for each port (480 Kbps to 7 Mbps aggregated)
2B1Q
Internal or network
0 to 784 Khz
10/100 BaseT
RJ-45 socket
Multiprotocol encapsulation over Frame Relay
End-to-end frame-based inverse multiplexing
Transparent to VLAN (802.1Q) label tags
Application, top talker, and protocol performance monitoring
MIB II (RFC1213), Frame Relay MIB, QEN Enterprise MIB
In-band management through SDSL, or Ethernet
Device configuration
Front panel LEDs
100 VAC to 240 VAC, 50-60 Hz
-40VDC to -72 VDC
9 W maximum
FCC Part 15, UL 1950 Third edition; Industry Canada CS-03, VCCI Class 1 CAN/CSA C
22.2 No. 950-95; European Harmonized Standards 74/23 EEC91.31/EED, 89/336/EED,
93/68/EEC, and 91/263/EEC; Commission Federal de Telecommunicaciones; CISPR 22
Level B (EN55022); IEC 60950, RoHS compliant
NET loopback
SNR margin, NET carrier loss
Power/Test, 3 SDSL Links, Ethernet
1 RU, rack mountable
22.3 cm (8.75 in) W x 4.13 cm (1.625 in) H x 31.44 cm (12.375 in) D
2.27 Kg (5 lbs)
Transmission Distances:
Line Rate (Kbps)
24 AWG (0.5 mm)
26 AWG (0.4 mm)
160
25,000 ft (7.6 Km)
18,600 ft (5.6 Km)
320
23,000 ft (7 Km)
15,500 ft (4.7 Km)
784
19,100 ft (5.8 Km)
13,300 ft (4 Km)
1040
18,000 ft (5.5 Km)
12,200 ft (3.7 Km)
1568
15,000 ft (4.5 Km)
10,800 ft (3.3 Km)
2048
11,000 ft (3.3 Km)
9,000 ft (2.7 km)
2320
10,800 ft (3.1 Km)
8,000 ft (2.4 Km)
© 2007 Quick Eagle Networks. All rights reserved.
PDF/05/07
The information presented herein may change without notice
and should be used for informational purposes only.
4200 SDSL Ethernet Bridge is a trademark of Quick Eagle
Networks. All product and service names mentioned are
trademarks of their respective owners.

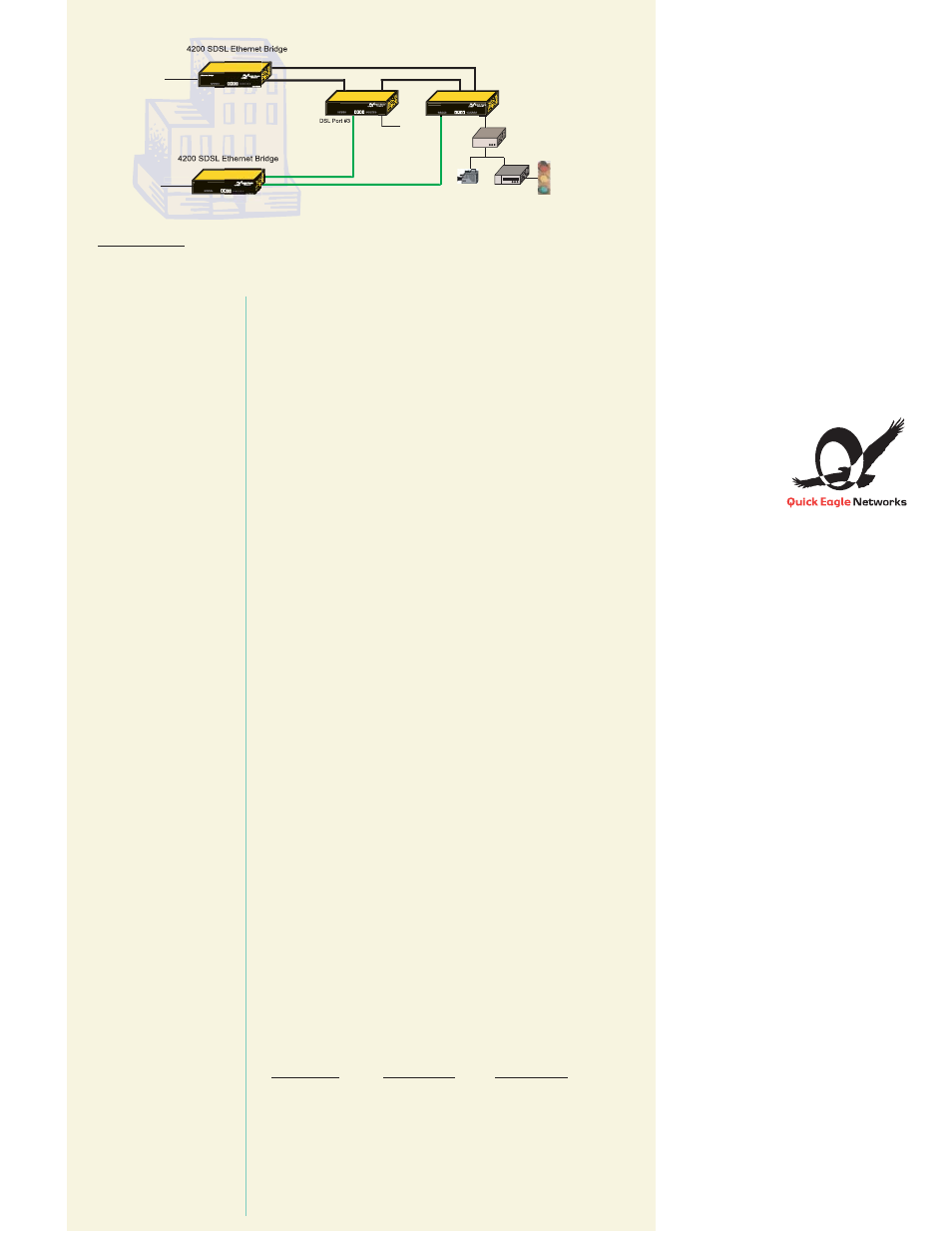

Typical Application: Linking to different locations
Traffic Management Center
Ethernet
Switch
Traffic
Controller
Video
Etherne
et
eo over Copper
de
Vid
Eth
hernet
Video over Copper
Ethernet Bridge
E h
B id
Model 4200 SDSL
M d l 4200 SDS
SL
Model 4200 SDSL
Model 4200 SDSL
Model 4200 SDSL
SL
Ethernet Bridge
E h
B id
Model 4200 SDSL
M d l 4200 SDS
SL
Model 4200 SDSL
Model 4200 SDSL
Model 4200 SDSL
SL
Ethernet Bridge
E h
B id
Ethernet
rt #1
or
DSL Po
DSL
DS
DSL Port #1
DSL Port #1
L Port #2
DSL
DSL Port #2
DSL Port #2
DSL Port #3
Redundant Link
