9
12. Plug the Power Cord (83) into the Power Receptacle
(82) at the rear of the elliptical exerciser.
83
82
11. Have another person hold the Console (3) near the
Upright (2).
Connect the Upper Wire Harness (18) to the wire har-
ness on the Console (3). Connect the Pulse Extension
Wire (17) to the pulse wire on the Console.
Carefully insert all excess wiring down into the Upright
(2). Attach the Console (3) to the Upright with four M4
x 16mm Screws (99). Be careful to avoid pinching
the wires.
Do not pinch
the wires
during this step.
3
2
99
99
18
17
11
13. Make sure that all parts of the elliptical exerciser are properly tightened. Cover the floor beneath the
elliptical exerciser to protect the floor from damage. Note: Some extra hardware may be left over.

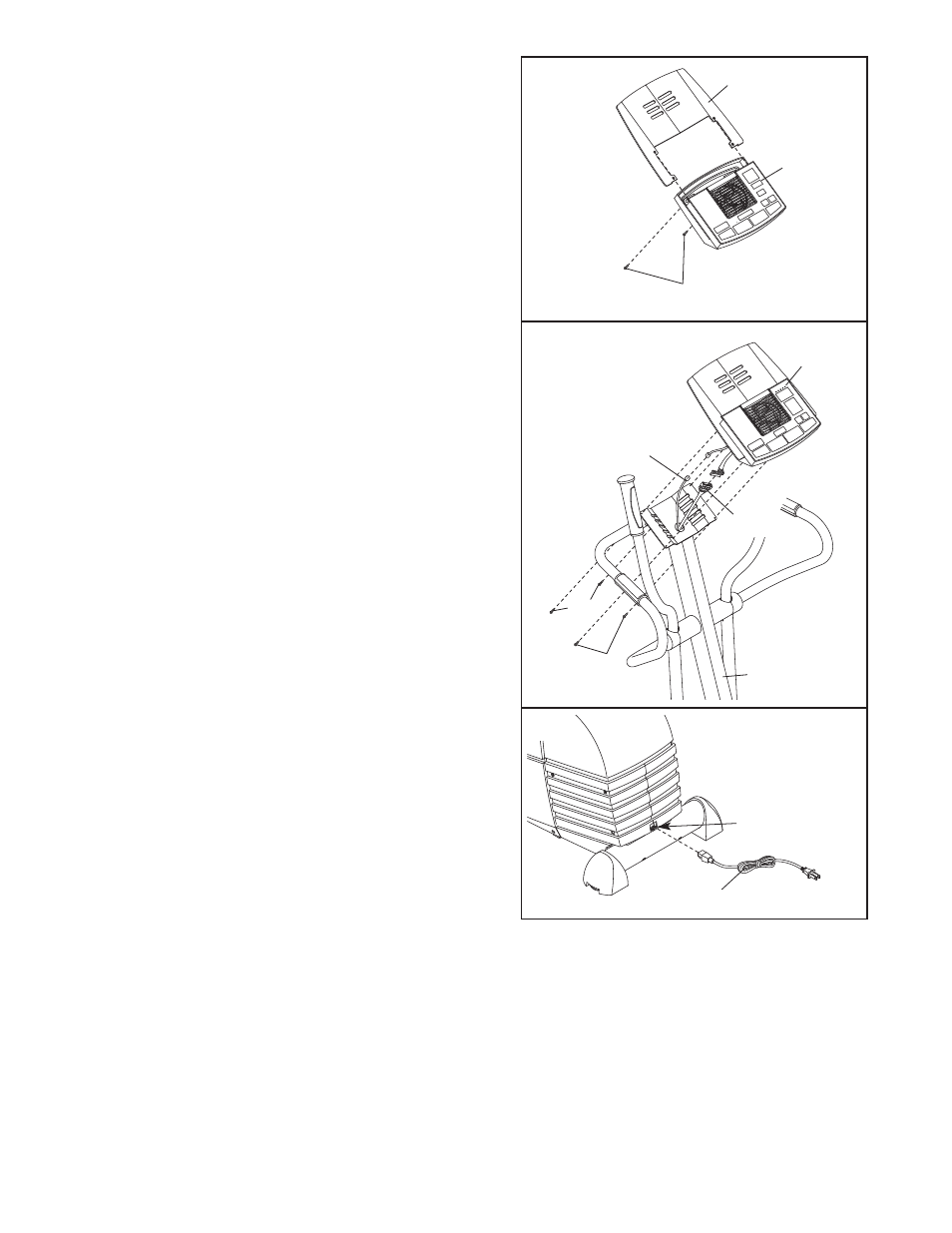

10.Attach the Book Rack (4) to the Console (3) with two
M4 x 25mm Round Head Screws (115).
10
4
115
3
12
