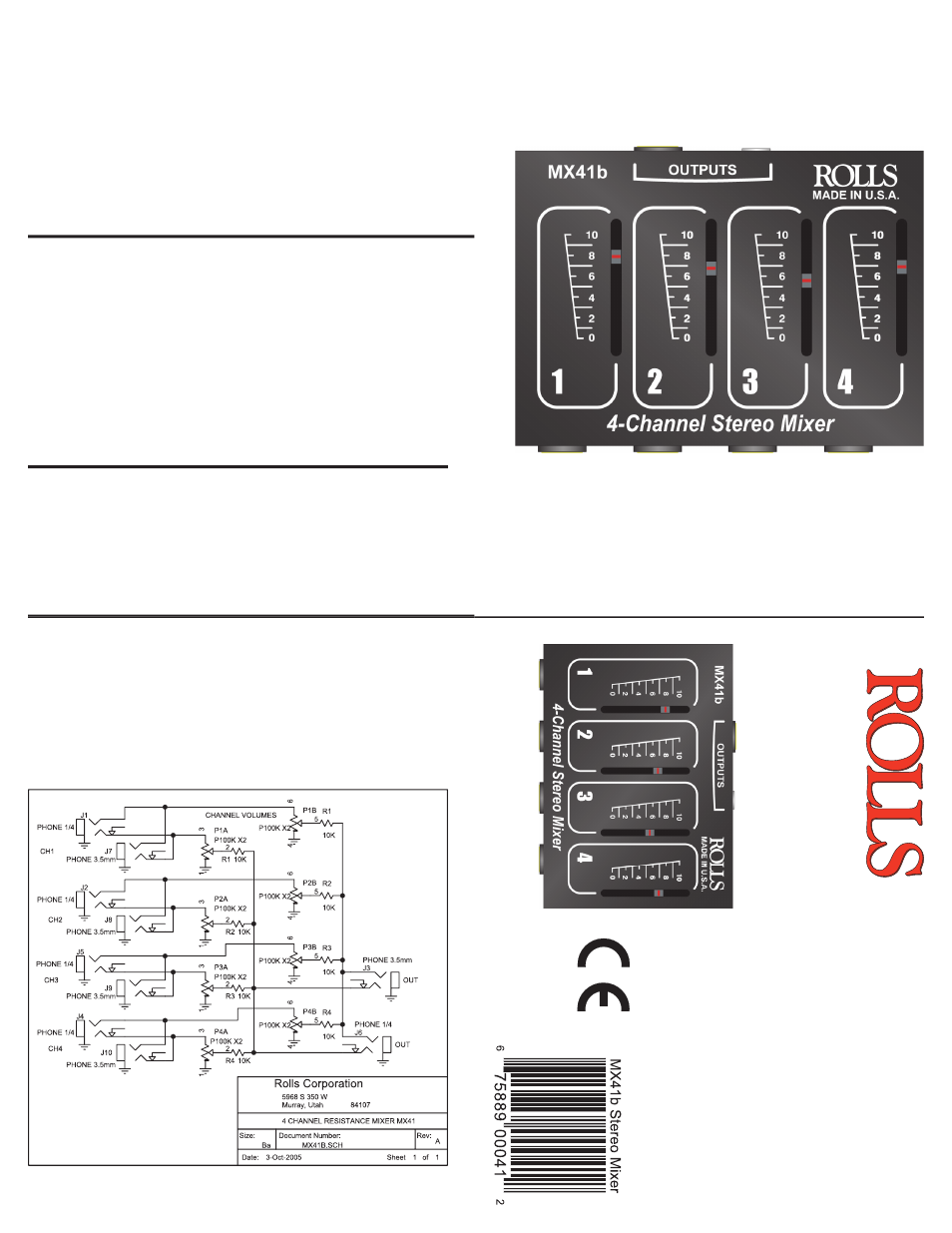

MX41b Stereo

Line Mixer

SCHEMATIC

Rolls Corporation

10/05

MX41b Mixer

Stereo 1/4” and 1/8” Inputs

Stereo 1/4” and 1/8” Outputs

100K Ohm P

otentiometers

The MX41b is a stereo four channel

passive mixer for expanding a console

mixer

, mixing instruments, cd players,

cassette players, computers etc. It

requires no batteries or other power

source. The unit may also be used as

a 1 In 4 Out stereo splitter box when

all controls are set to maximum.

SPECIFICATIONS

Input Impedance: 10K to 47K Ω

Output Impedance: 2.5K to 10K Ω

Gain: -12 dB MAX

Dimensions: 3.6" x 2.7" x 1.42" (W x H x D)

Weight: 1 lb.

INTRODUCTION

Congratulations and thank you for your purchase

of the MX41b. This unit is a stereo, four channel

passive mixer for expanding a console mixer, mix-

ing instruments, cd or cassette players, or other

signal sources. It requires no batteries or other

power source. The unit may be used as a stereo

1-in 4-out box when all controls are set to maxi-

mum.

DESCRIPTION

OUTPUTS: Stereo 1/4” TRS, and stereo 1/8” TRS

jacks for connection to a mixer input or other input

device.

INPUTS 1 - 4: 4 stereo 1/4” TRS, and 4 stereo 1/8”

TRS jacks for connection to line, instrument, or

consumer level devices.

VOLUME 1 - 4: Control the level of the signals

coming from Inputs 1 - 4.
