HSG1002
Rev.1.00, Apr.12.2004, page 33 of 37

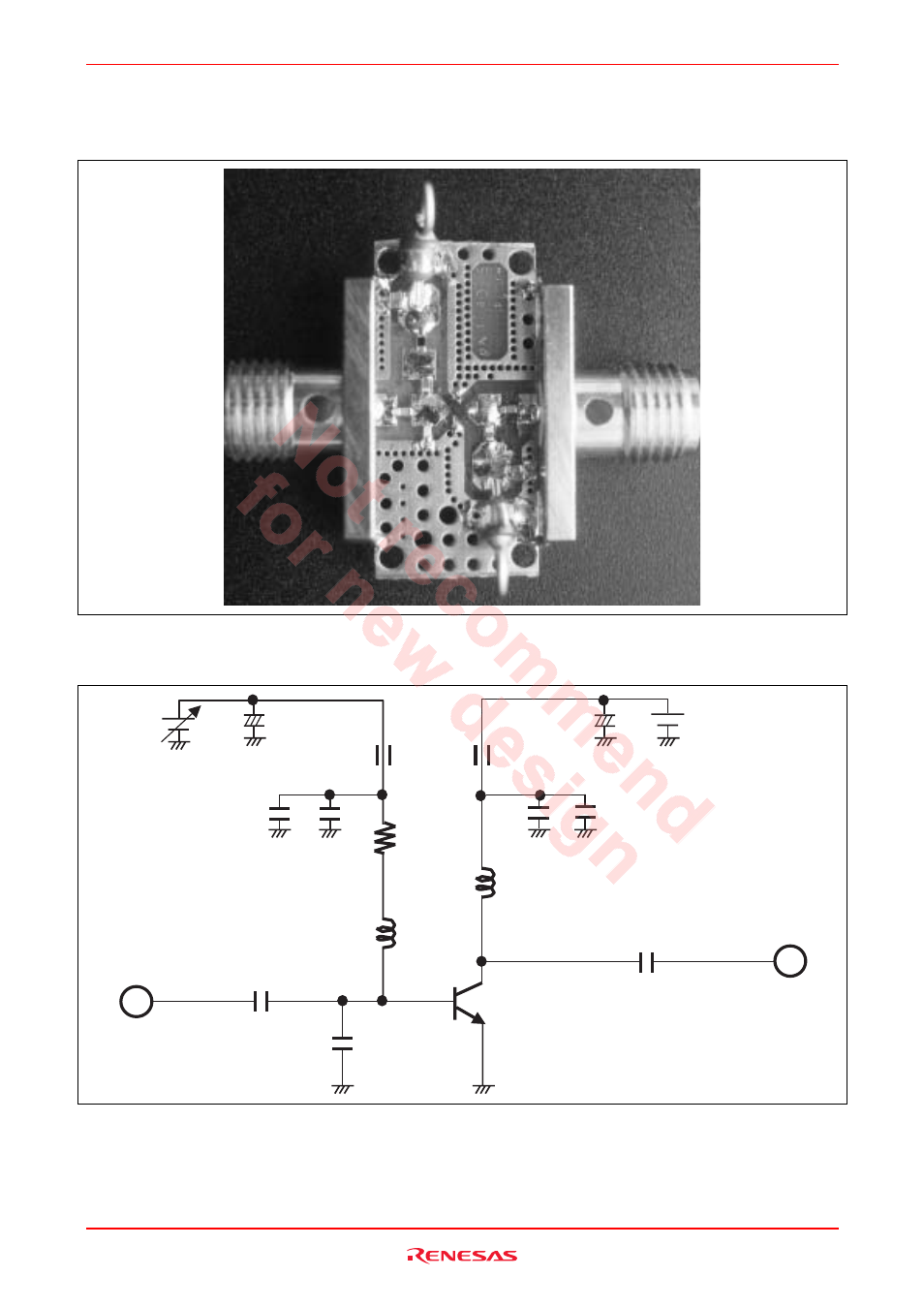

HSG1002 5.8GHz Evaluation Board
Evaluation Board Pattern Layout
Circuit
2.2 uF 2.2 u uF
V CC V BB
OUT
IN
39 ohm
1 nH
6.8 n nH
1000 pF
1 pF
10 pF
1000 pF 10 pF
3 pF
0.2 pF
