NuTone VAC PAN CI-365 - Manual

READ INSTRUCTIONS BEFORE INSTALLATION
IMPORTANT NOTES:
1. For maximum clearance under cabinets use 2 1 /
2
" X 3 1 /
2
" short 90° elbow.
2. Check for an air tight seal at VacPan™ and elbow prior to installation.
3. If required, use Teflon tape to make air tight seal but do not use glue.
4. Make certain clearance is available in kick space prior to installation under cabinets.
5. Use central vacuum cover plate or double electrical blank plate for access cover when required.
6. Allow 1 /
2
" play in vacuum pipe at location of VacPan™ so that fitting connection can be lifted to install or remove
VacPan™.
INSTALLATION INSTRUCTIONS
READ & SAVE THESE INSTRUCTIONS!
VacPan
™
Automatic Dustpan Inlet
MODEL: CI-365

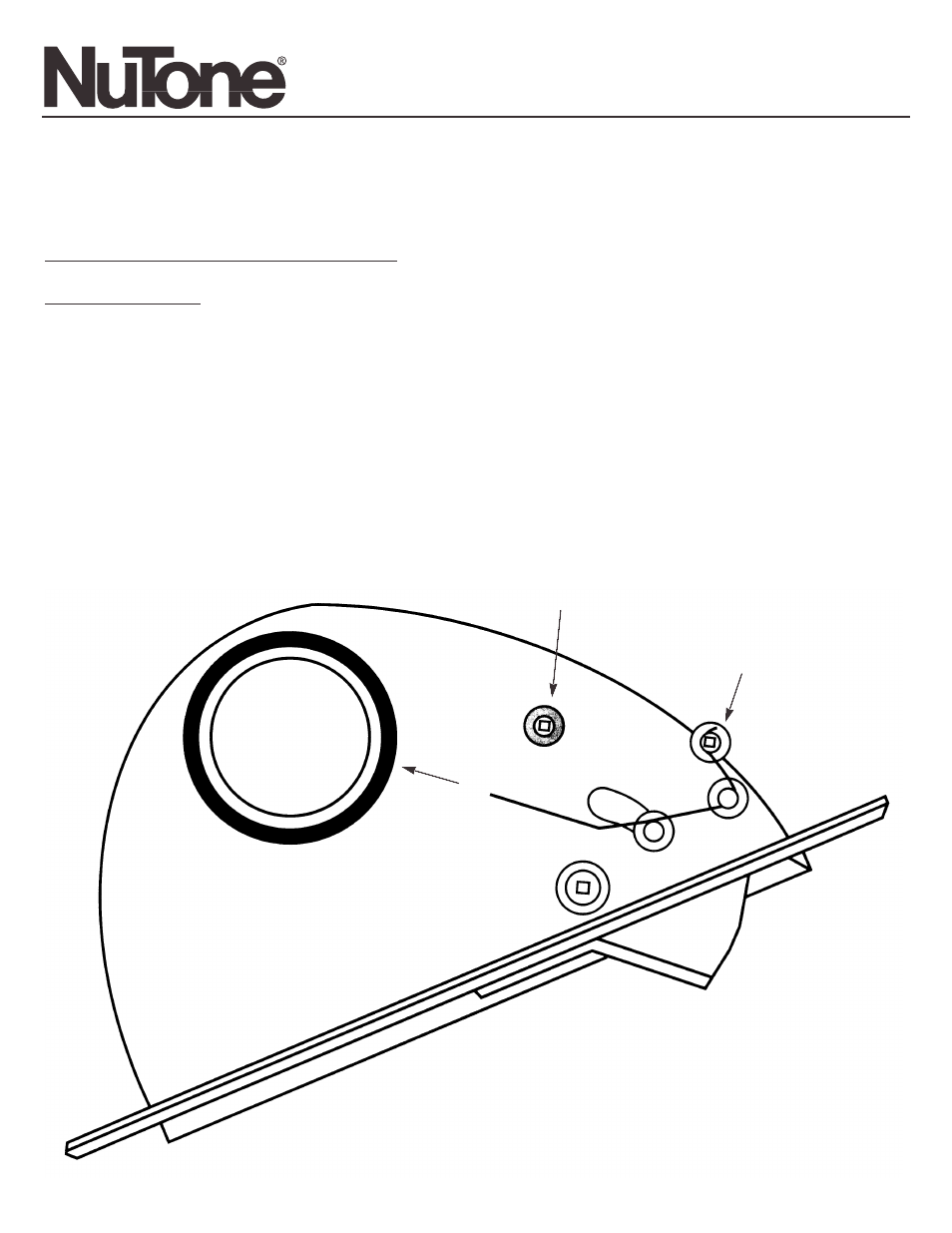

FIGURE 1
BRASS TERMINAL
CONTACT
SPRING TERMINAL
CONTACT
DO NOT GLUE
MADE IN CANADA
U.S. P
ATENT PENDING
CANADIAN P
ATENT PENDING
