Niles Audio SW10JM User Manual
Page 16
14

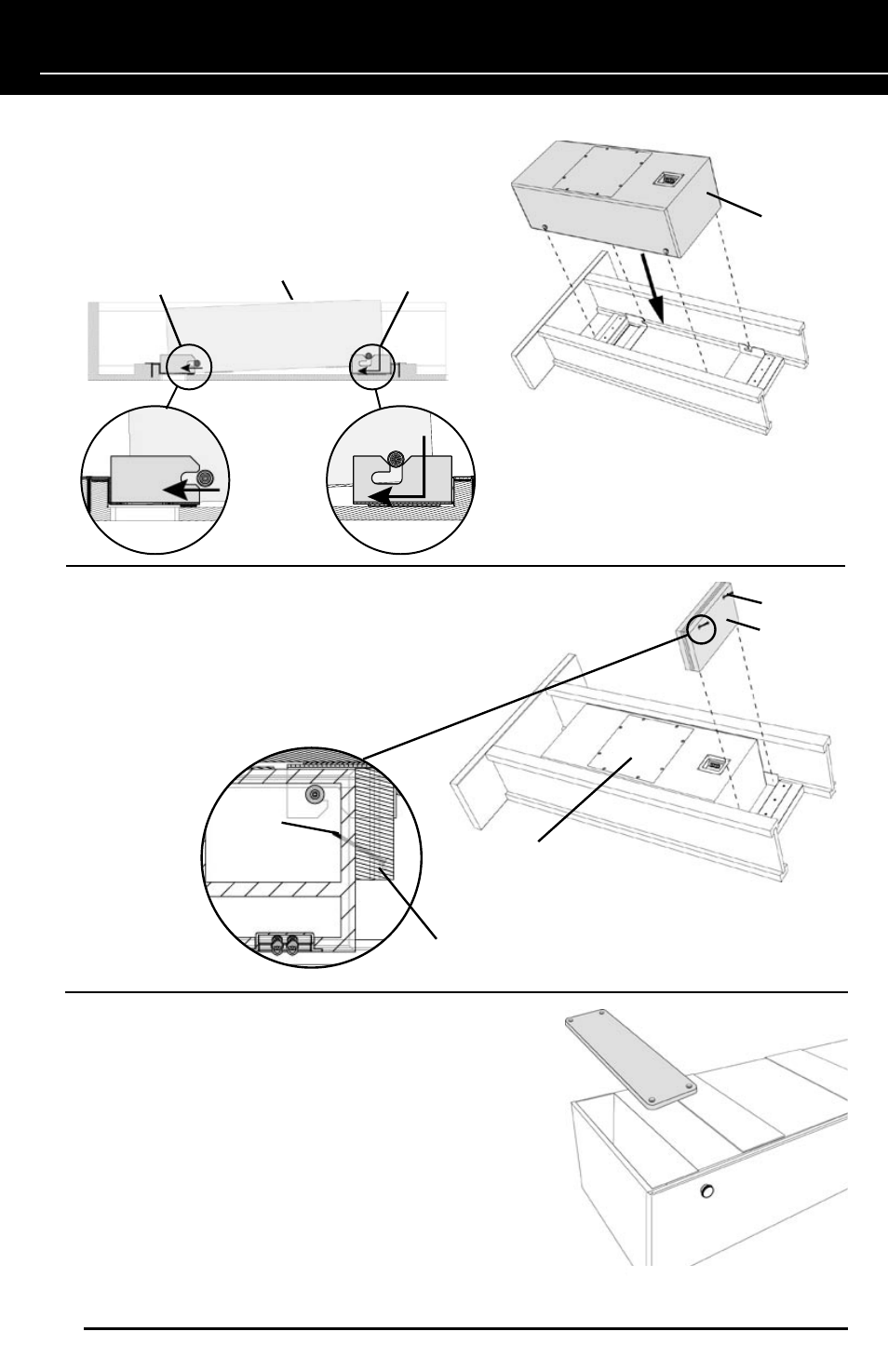

4. Place the SW10JM subwoofer into the brackets
aligning the attachment pins to the slots in the
brackets. Begin with the ported end first.
5. Install the stop block between the bracket
and cabinet at rear of cabinet as indicated
in drawing.
6. Install Trim Out Panel to allow drywall
installer exact location of cut-out.
Subwoofer
Front Bracket
Rear Bracket
Subwoofer
Screw
Subwoofer
Stop Block
Screw
Stop Block
(CONTINUED ON NEXT PAGE)
