2-4 Getting Started Guide

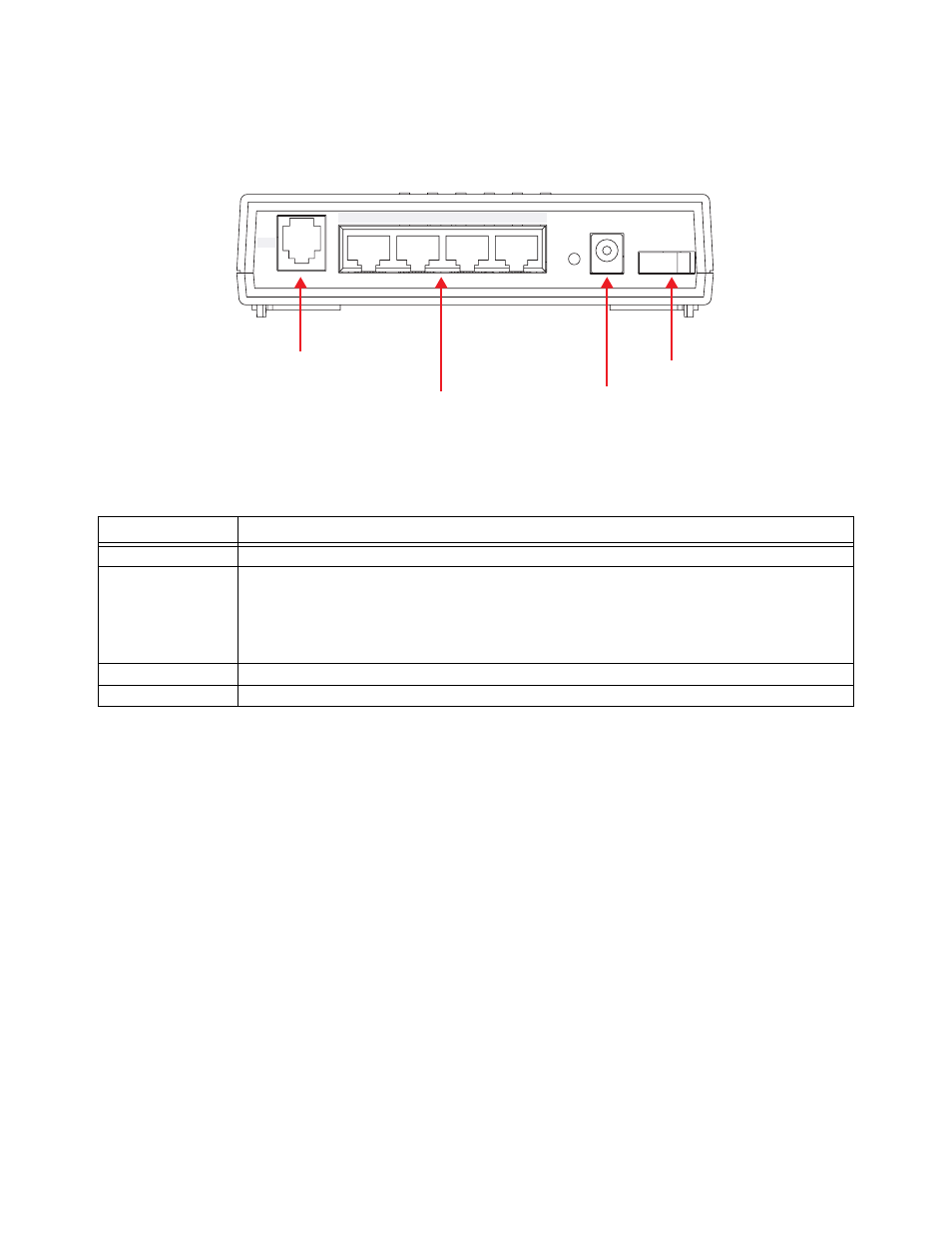

Netopia 4-port back panel
.
Port Description
DSL por t An RJ-48 jack labeled DSL for your ADSL connection.
Ethernet por ts Four RJ-45 10/100Base-T Ethernet jacks. You can use one of these to configure the
Netopia 4-por t. You can either connect your computer directly to an Ethernet por t using
the supplied Categor y 5 Ethernet cable, or connect both your computer and the Netopia
4-por t to an existing LAN environment. The Ethernet por ts are auto-sensing, eliminating
the need for a crossover cable.
Power por t A DC power adapter cable connection.
Power switch An On/Off rocker switch for power.
DSL port
Ethernet
Power Off / On LAN
DSL
4 1 2 3
Power switch
ports
Power port
