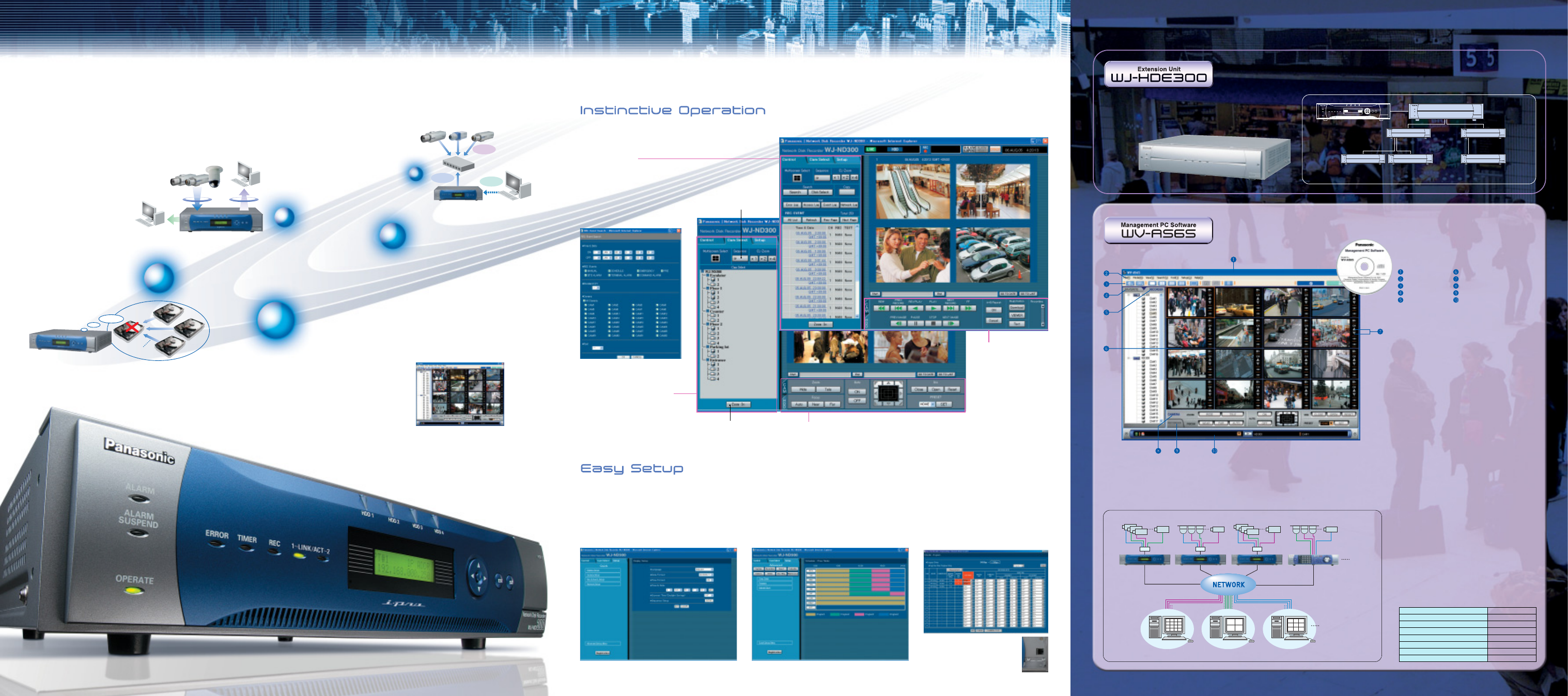

The Disk Recorder for MPEG-4/JPEG Network Cameras
Usability is the key to a great interface
Outstanding scalability simplifies large system construction
Increase storage capacity, locate WJ-ND300 Network Disk Recorders in multiple locations, combine digital with analog systems. WJ-ND300 makes it so simple.
How simple is simple? Recorder and camera operations are just a click of a mouse away.
Easy IP Set-up
When i-pro Series cameras are
connected to the WJ-ND300
Network Disk Recorder, the
Easy IP Set-up feature easily
locates their IP addresses.
(Providing support for
upgrades.)
Control Tab
Quick access to rich array of search parameters for images stored in
the WJ-ND300. Allows you to list logs in many different ways to
facilitate searches for detailed information.
Quick Setup
Display Setup, Camera Setup, Rec & Event Setup, and
Network Setup: These four simple steps are all it takes to
set up a basic system.
Main Screen Playback
Main Screen Live
On four-window screens, click on this
button to enlarge the active window.
Camera images can be displayed
single screen or four-screen as
the sequence.
Filtered Search
Use Time & Date, REC Events, Camera, or
Text parameters to filter data.
Camera Tab
Use your mouse to control Pan/Tilt, Zoom, and Preset networked camera features. Click on
any point within the image to change camera direction.* (*Only with compatible cameras.)
HDD Tab
Simply click with the mouse to
playback images stored in the
WJ-ND300. Speed up playback
up to 96 times or reverse frame
sequence. Images can also be
downloaded to a client PC.
RAID5 Built-In
The Optional RAID5 Board; WJ-NDB301
enables high-level risk management
by adding RAID5 capability to
the WJ-ND300 itself.
MPEG-4/JPEG Compatible
This disk recorder can be used with either MPEG-4
or JPEG cameras or in systems combining both.
This flexibility allows systems to be tailored precisely to
user needs using various combinations of cameras.
For quick and easy choose Quick Setup. To fine tune your settings choose Advanced Setup.
Advanced Setup
System, Recording, Event, Schedule, Camera,
Communication, User Management, and Maintenance
steps allow you to fine tune your system. Frame rate can
be specified for each camera.
It’s easy to create a recording schedule time table.
*All of the photographs above were taken for the purpose of explanation ; actual images may differ.
Example of screen showing quick setup functions.
Measurement Function for
Frame Rate Selection
After setting the WJ-ND300’s monitoring and recording
frame rate, click on the Measurement button to
measure and display the frame rate for each camera.
A red display signals that the frame rate selected has
exceeded the available network bandwidth capacity.
Network Cameras
Setup PC
Client PC
Restore
Camera Select Tab
To see a live image, simply click on
the camera of your choice. Tree-type
displays make it easy to organize
cameras by floor or in other ways.
The WJ-HDE300 can be equipped with up to 4 disk drives. Systems
can have up to 28 drives (one 4-drive WJ-ND300 Network Disk
Recorder + six 4-drive WJ-HDE300 Extension Units), for a total of
28 x 250GB = 7TB of storage.
Network Disk Recorder
WJ-ND300
4 drive bays (1.0TB)
Extension Unit
WJ-HDE300
4 drive bays (1.0TB)
Extension Unit WJ-HDE300
4 drive bays (1.0TB)
Extension Unit
WJ-HDE300
4 drive bays (1.0TB)
Extension Unit
WJ-HDE300
4 drive bays (1.0TB)
Extension Unit
WJ-HDE300
4 drive bays (1.0TB)
Extension Unit WJ-HDE300
4 drive bays (1.0TB)
SYSTEM DIAGRAM
For high-capacity systems with 7TB of storage
Title Bar
Menu Bar
Tool Bar
FAVORITE Tab
RECORDER Tab Image Display Area
Channel Search Buttons
Camera Control Panel
Recorder Control Panel
Status Bar
~ 16 1 2 3 ~ 16 1 2 3 ~ 16 1 2 3 ~ 16 1 2 3
L2 Switch L2 Switch L2 Switch
WJ-ND300 Digital Disk Recorder
WJ-HD316A
WV-AS65
PC
WV-AS65
PC
WV-AS65
PC
up to 100
up to 32 user
registration
Management PC Software: WV-AS65
Maintenance Port Located
on the Front Panel
The maintenance port on the front panel
of the WJ-ND300 makes it easy to
connect the recorder to a PC.
SPECIFICATIONS
WJ-ND300 Registration Capacity up to 100 sets
User Registration Capacity up to 32 users
User Types 5 types
Schedule Registration Capacity up to 400 schedules
Favorite Registration Capacity up to 500
Simultaneous Downloads up to 10 accesses
Simultaneous Camera Image Displays up to 16 cameras
Simultaneous File Playbacks up to 4 files
Network Disk Recorder
WJ-ND300
*This product is using Axis HTTP API version 2.0. Approved by Axis Communications.
Panasonic introduces the new WJ-ND300 Network Disk Recorder with support for up to 32 Ethernet-linked network cameras. This multifunction
disk recorder offers combining high image quality with the high frame rate. Plus, it gives you the full, IP-addressing capabilities required to
maximize both flexibility and scalability. The possibilities are endless. From systems that exploit existing networks to high-performance systems
using dedicated networks, even hybrid systems using analog cameras, the WJ-ND300 meets security needs across a wide range of applications.
High Image Quality
The WJ-ND300 is the latest innovation in Panasonic’s commitment
to your company’s security system infrastructure
and network performance. Independent
camera port and client PC port
for applications requiring high
image quality, high
frame rate and
multi-channel
capabilities.
System Integration with WJ-HD300A Series
Optional Management PC Software WV-AS65
permits simultaneous use of up to 100 WJ-ND300
and WJ-HD300A Series Digital Disk Recorders.
By making it easy to construct hybrid systems
incorporating existing analog equipment, it brings
a new level of flexibility to surveillance and
security management.
With your choice of eight languages (English, French, German, Italian, Spanish, Russian, Chinese, Japanese) and
simultaneous access to each WJ-ND300 from up to eight clients.
For multi-location surveillance using up to
100 WJ-ND300 Recorders
System Integration with WJ-HD300A Series
Up to a total of 100 WJ-ND300 and WJ-HD300A Series Digital Disk Recorders can be combined to
create a hybrid system.
Network Mode
Remote control for multiple WJ-ND300 recorders
via the network.
Display up to 16 channels at once
For live monitoring and playback, select a 1, 4, 9
or 16 window display. Drag and drop cameras
from the Recorder & Camera Tree to the screen
position of your choice.
Favorite Register
Register up to 500 frames and camera positions
for instant access.
All-at-Once Search
Allows use of Filtered Search for images stored
on multiple WJ-ND300 recorders.
Local Mode
Download images stored on multiple WJ-ND300
recorders to a client PC for Filtered Search,
playback and management.
Two Download Types
Scheduled Download automatically downloads
images at designated intervals. Manual Download
is used for downloading live or playback images
as needed.
Maintenance
Optimize PC hard disk space, erase all image
files, or automatically delete files at specified
intervals.
Mega Pixel
JPEG
JPEG
Ethernet
Switch
MPEG-4
Step2
Step1
Step3
PC
